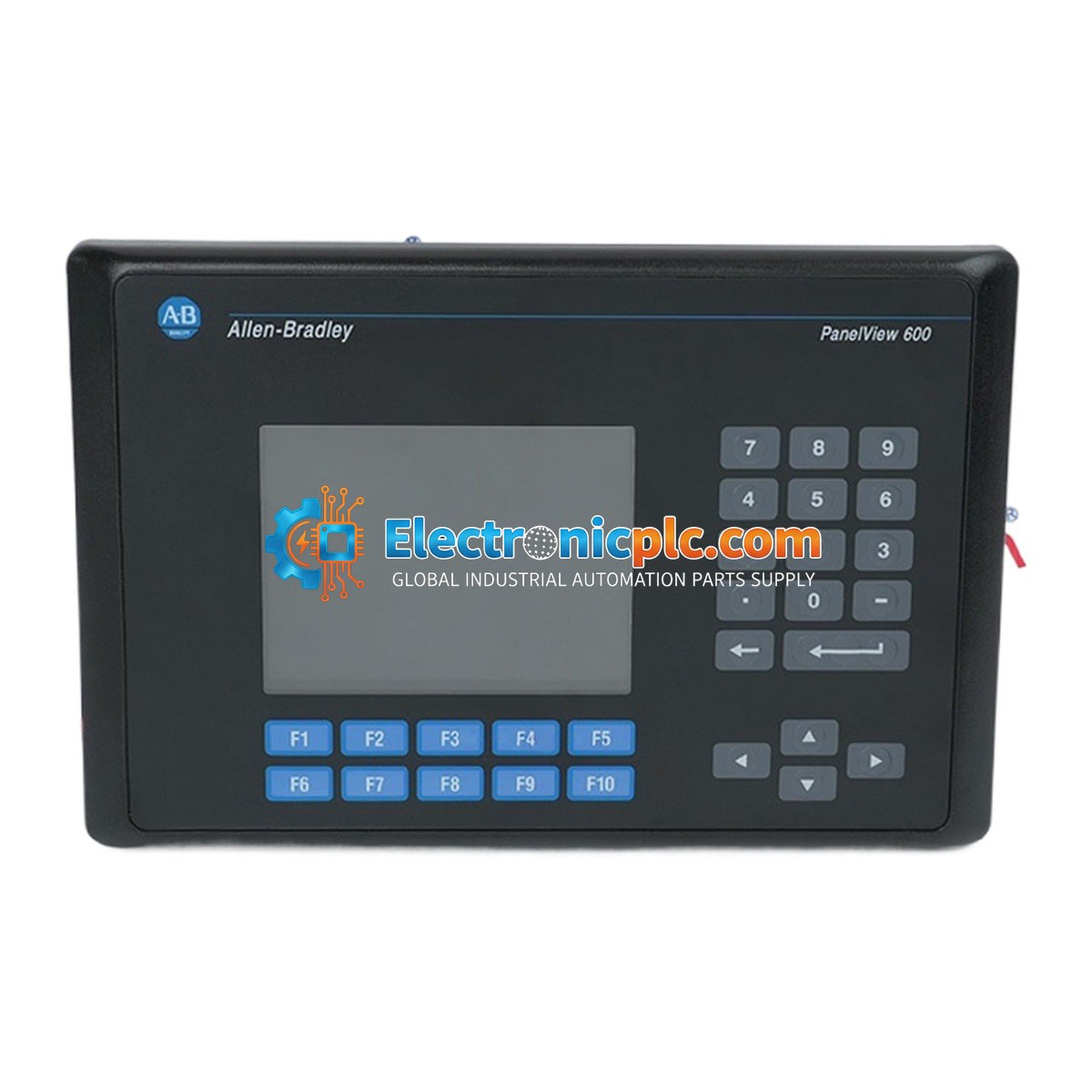

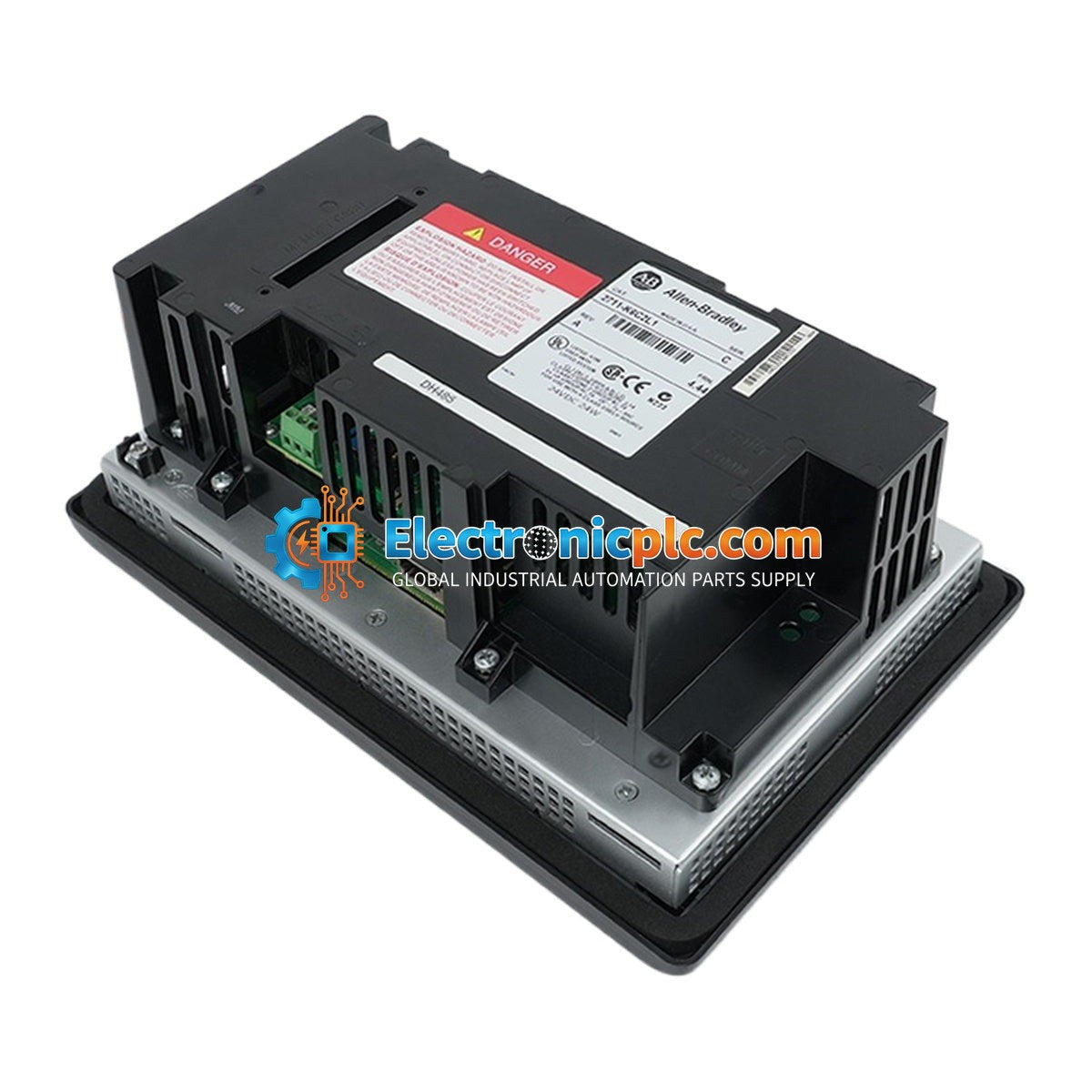

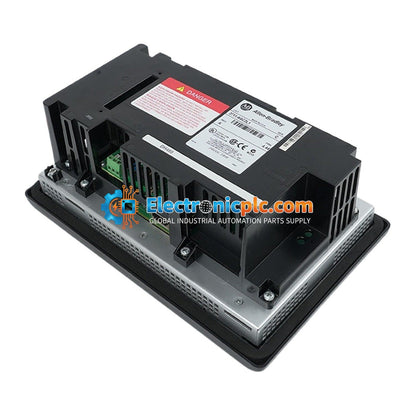

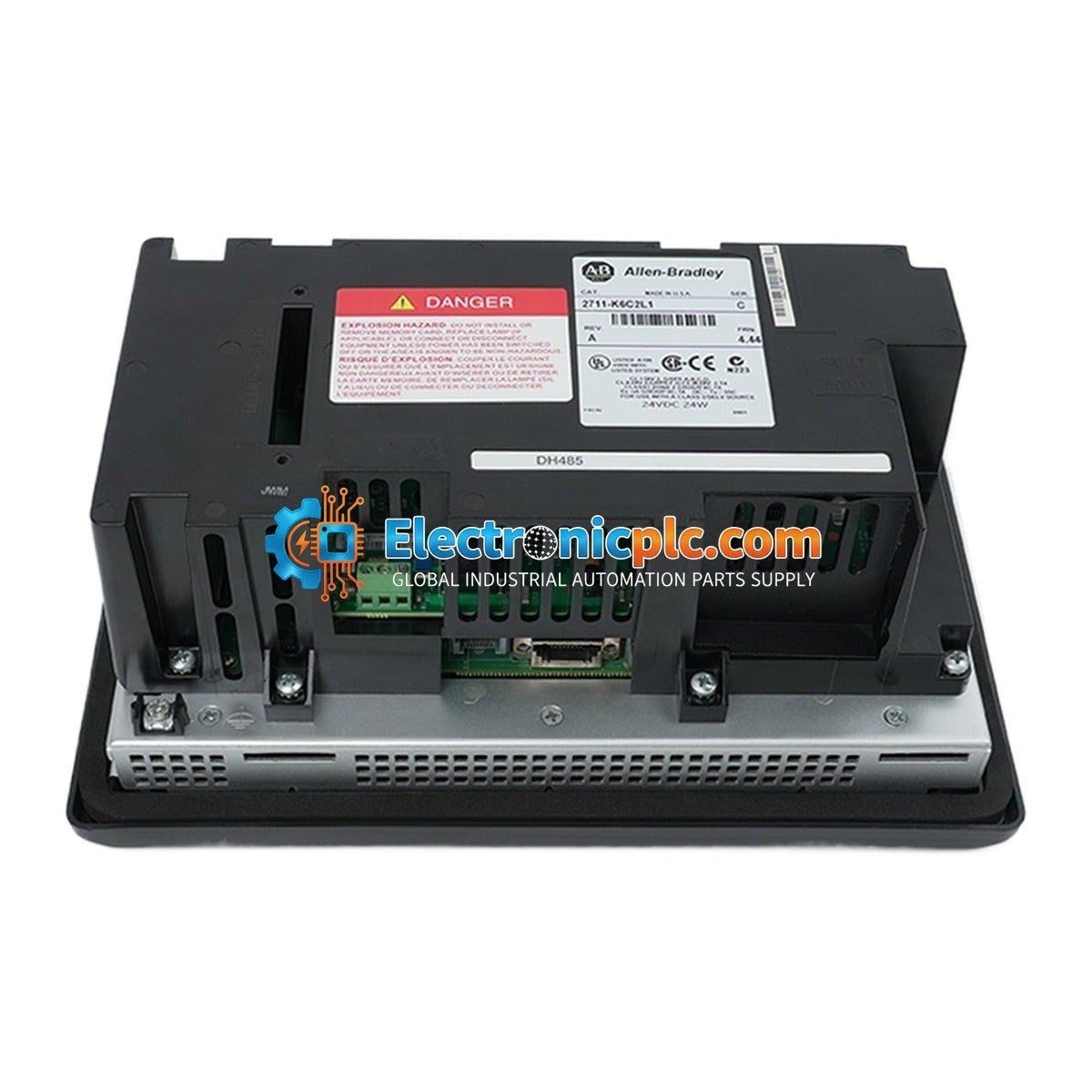

Allen-Bradley 2711-K6C2L1 PanelView 600 Operator Interface

Allen-Bradley 2711-K6C2L1 PanelView 600 Operator Interface

Description

The Allen-Bradley 2711-K6C2L1 is a PanelView Standard 600 operator terminal designed for real-time machine monitoring and control. This Human-Machine Interface (HMI) features a 5.7-inch color active matrix TFT display with...

19 people are viewing this right now

Availability: Low stock: 10 left

SKU: 2711-K6C2L1
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-K6C2L1 is a PanelView Standard 600 operator terminal designed for real-time machine monitoring and control. This Human-Machine Interface (HMI) features a 5.7-inch color active matrix TFT display with a resolution of 320 x 234 pixels. It provides a robust, tactile keypad interface suitable for industrial environments where touchscreen operation may be impractical. This specific model utilizes DH-485 communication and supports a 24V DC power input.

Features

  • 5.7-inch color active matrix TFT display.
  • Tactile keypad input with 10 configurable function keys, numeric keypad, and navigation buttons.
  • Rated for up to 1 million actuations per key.
  • Field-replaceable backlight with 50,000-hour expected half-life.
  • Supports DH-485 communication protocol.
  • Field-replaceable internal battery for real-time clock and memory retention.
  • Compatible with various enhancement modules, including memory cards and anti-glare overlays.

Applications

  • Automotive: Real-time monitoring for robotic cells, welding, and stamping lines.
  • Food and Beverage: Suitable for packaging, bottling, and heat-sealing applications.
  • Water and Wastewater: Localized control for filtration, pumping, and dosing systems.
  • Pharmaceutical and Chemical: Batch processing and reactor vessel monitoring.
  • Pulp and Paper: Reliable operation in high-vibration machinery environments.

Technical Specifications

Model 2711-K6C2L1
Display Type Color Active Matrix TFT
Resolution 320 x 234 pixels
Input Voltage (DC) 18-32V DC (24V DC nominal)
Power Consumption (DC) 34W max
Communication DH-485
Printer Port RS-232 (1200, 2400, 9600, 19,200 Kbps)
Keypad 10 Function keys + numeric/navigation
Weight 1.5 kg

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain NEMA/IP seal integrity.
  • Use appropriate gasket seals when mounting in NEMA 4X enclosures to prevent moisture ingress.
  • Maintain adequate clearance around the unit for ventilation and to prevent overheating.
  • Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI).
  • Always power down the terminal before inserting or removing memory modules or performing maintenance.
  • Ensure the unit is properly grounded to the enclosure chassis to mitigate electrical noise.

FAQs

What is the primary communication method for the 2711-K6C2L1?

This terminal uses the DH-485 communication protocol for both application transfers and network integration.

Can I use the RS-232 port for programming?

No, the RS-232 port on this specific model is dedicated to printing functions. Application uploads and downloads must be performed via the DH-485 port.

Is the backlight replaceable?

Yes, the unit features a field-replaceable backlight designed for a 50,000-hour service life.
