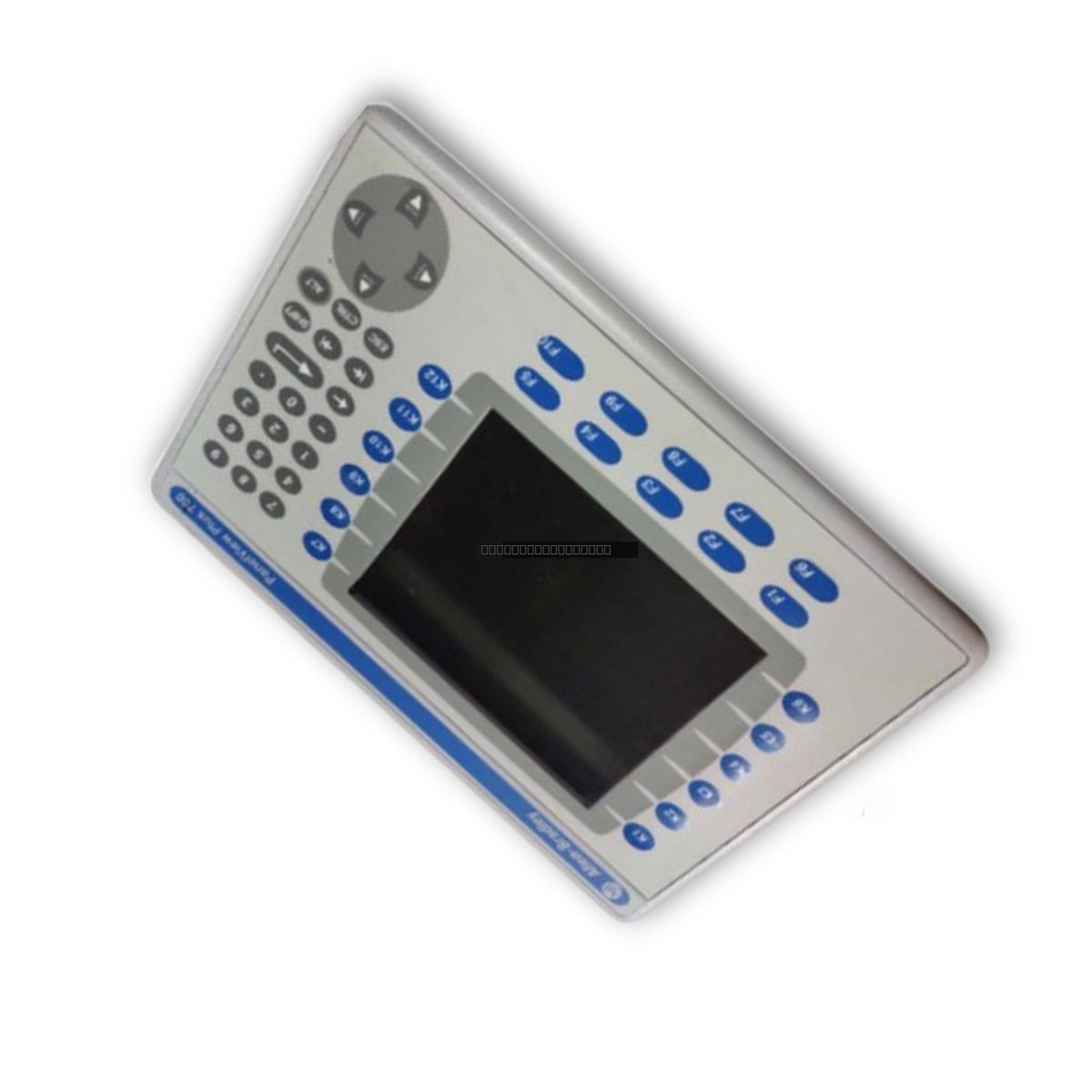

Allen-Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Terminal

Allen-Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Terminal

The Allen-Bradley 2711P-K10C4D8 is a PanelView Plus 6 1000 operator terminal designed for robust industrial human-machine interface (HMI) applications. This unit features a 10.4-inch color display and a dedicated keypad...

15 people are viewing this right now

Availability: Low stock: 1 left

SKU: 2711P-K10C4D8
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711P-K10C4D8 is a PanelView Plus 6 1000 operator terminal designed for robust industrial human-machine interface (HMI) applications. This unit features a 10.4-inch color display and a dedicated keypad interface, allowing operators to interact with machine processes, monitor real-time data, and input setpoints effectively.

Features

  • 10.4-inch color display with 640 x 480 resolution (18-bit color graphics).
  • Integrated keypad interface including function keys (F1-F16, K1-K16), numeric keypad, and navigation buttons.
  • 512 MB RAM and 512 MB non-volatile flash memory for application storage.
  • Connectivity options include embedded Ethernet (EtherNet/IP), RS-232 serial port, and two USB host ports.
  • Operates on an 18-32V DC input power supply.

Applications

  • Packaging and palletizing lines for high-speed control and jam clearing.
  • Material handling systems, including conveyor control and ASRS management.
  • Process skids for chemical dosing, pumping, and filtration.
  • Food and beverage processing environments, including mixing and bottling lines.
  • Machine tool and CNC support for coolant and chip removal monitoring.

Technical Specifications

Model 2711P-K10C4D8
Display Size 10.4 inches
Resolution 640 x 480
Input Type Keypad
Memory 512 MB RAM / 512 MB Flash
Input Voltage 18-32V DC
Communication Ports Ethernet, RS-232, 2x USB Host
Weight 4.28 kg

Installation Guidelines

  • Panel Cutout: Prepare a precise cutout in the enclosure; ensure the area is free of metal debris before installation.
  • Sealing: Ensure the integrated sealing gasket is properly seated against the enclosure to maintain the required NEMA/IP rating.
  • Mounting: Insert the terminal into the cutout and secure it using the provided mounting clips. Tighten screws in a cross-pattern to 0.90–1.1 N·m (8–10 lb·in) to ensure uniform pressure.
  • Power Wiring: Connect to a stable 18-32V DC supply. Always isolate power before performing wiring tasks.
  • Environment: Install in a location with adequate ventilation to prevent overheating. Avoid high-EMI sources near communication cabling.

FAQ

What is the primary input method for this terminal?

The 2711P-K10C4D8 utilizes a physical keypad interface, which includes function keys, numeric keys, and directional buttons for operator input.

Can this terminal be used on an EtherNet/IP network?

Yes, the unit includes an embedded Ethernet port that supports EtherNet/IP for real-time I/O messaging and data exchange with controllers.

What should I do if the unit fails to power up?

Check the DC power supply connections. A common issue in DC-powered PanelView units is a blown internal fuse, often caused by a short circuit between the power supply and the chassis.
