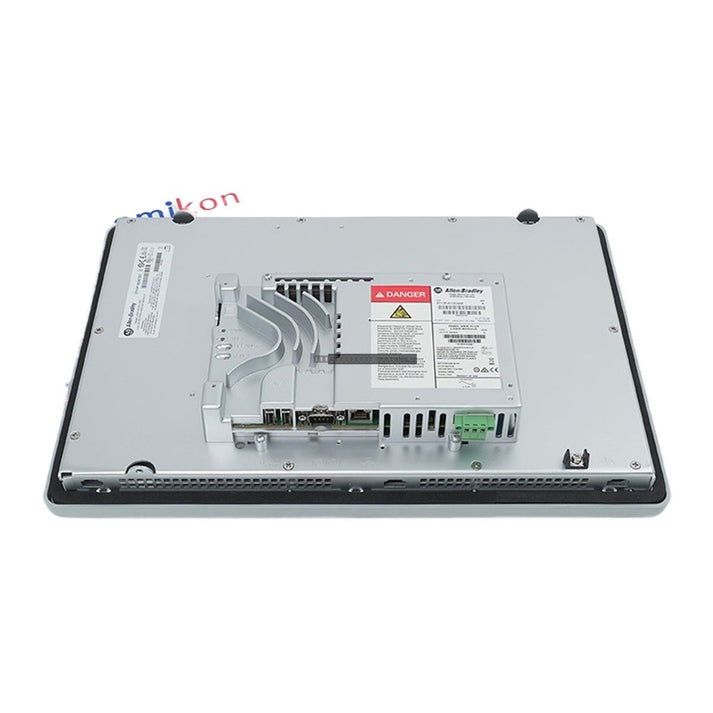

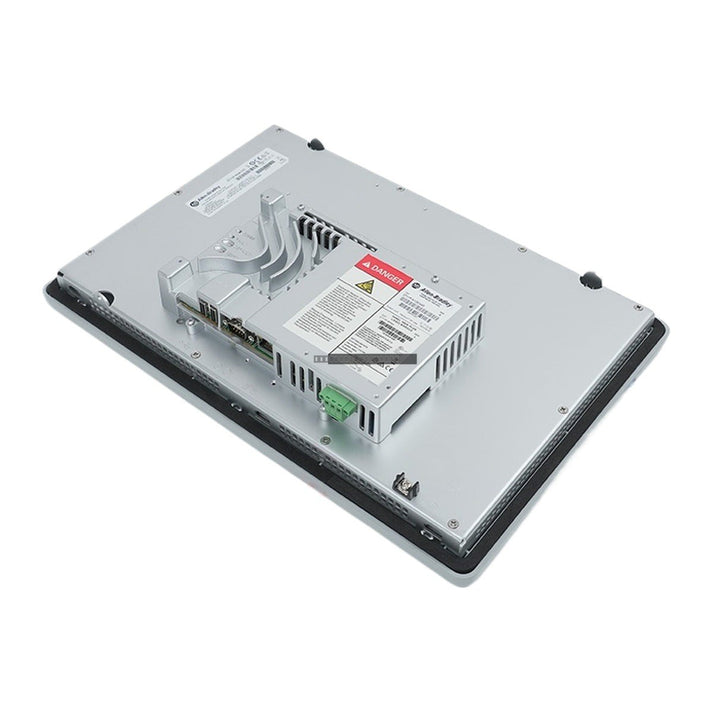

Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 Operator Interface Terminal

Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 Operator Interface Terminal

The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator interface terminal designed for demanding industrial HMI environments. This unit features a 12.1-inch color active-matrix TFT display with a resolution...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: 2711P-K12C4A8
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator interface terminal designed for demanding industrial HMI environments. This unit features a 12.1-inch color active-matrix TFT display with a resolution of 800 x 600 pixels. It utilizes a robust keypad input system, including navigation keys and 40 configurable function keys (F1-F20 and K1-K20), allowing for precise control in environments where tactile feedback is required.

Features

  • 12.1-inch color TFT display with 800 x 600 resolution.
  • Keypad input with 40 programmable function keys.
  • Windows CE 6.0 operating system with pre-installed FactoryTalk View Machine Edition runtime.
  • Integrated 10/100 Base-T Ethernet and RS-232 serial ports.
  • Dual USB 2.0 host ports and a secure digital (SD) card slot for data logging and firmware updates.
  • 512 MB RAM and 512 MB non-volatile memory.
  • Modular design allowing field replacement of key components.

Applications

  • Manufacturing and assembly lines, including robotics and packaging.
  • Heavy industry applications such as mining, power generation, and pulp/paper processing.
  • Energy and utility management, including oil, gas, and water treatment systems.
  • Logistics and automated warehouse sorting systems.

Technical Specifications

Model 2711P-K12C4A8
Display Size 12.1 inch
Display Type Color Active-Matrix TFT
Resolution 800 x 600 pixels
Input Method Keypad
Operating System Windows CE 6.0
Power Input 100-240V AC, 50/60 Hz
Power Consumption 160VA max (65VA typical)
Communication Ethernet, RS-232, 2x USB 2.0
Weight 2.95 kg

Installation Guidelines

  • Ensure the sealing gasket is clean, flat, and properly seated in the terminal channel before mounting.
  • Insert the terminal into the panel cutout from the front side.
  • Secure the unit by sliding the mounting clips into the designated slots around the bezel.
  • Tighten the mounting screws evenly in an alternating pattern to a torque of 1.1 N·m (10 lb·in) to ensure a proper seal; do not overtighten.
  • Verify that the power source is disconnected before performing any wiring or maintenance.

FAQ

What is the 2711P-K12C4A8?

The 2711P-K12C4A8 is a PanelView Plus 6 1250 graphic terminal featuring a 12.1-inch color display and keypad input. It is designed for industrial HMI applications and operates on a 100-240V AC power supply.

How much memory is available for user applications?

The terminal is equipped with 512 MB of RAM and 512 MB of non-volatile memory, with approximately 79 MB of free user memory available for application storage.

Can I connect external peripherals to this terminal?

Yes, the terminal includes two USB 2.0 host ports for connecting peripherals such as keyboards, mice, printers, or USB flash drives.
