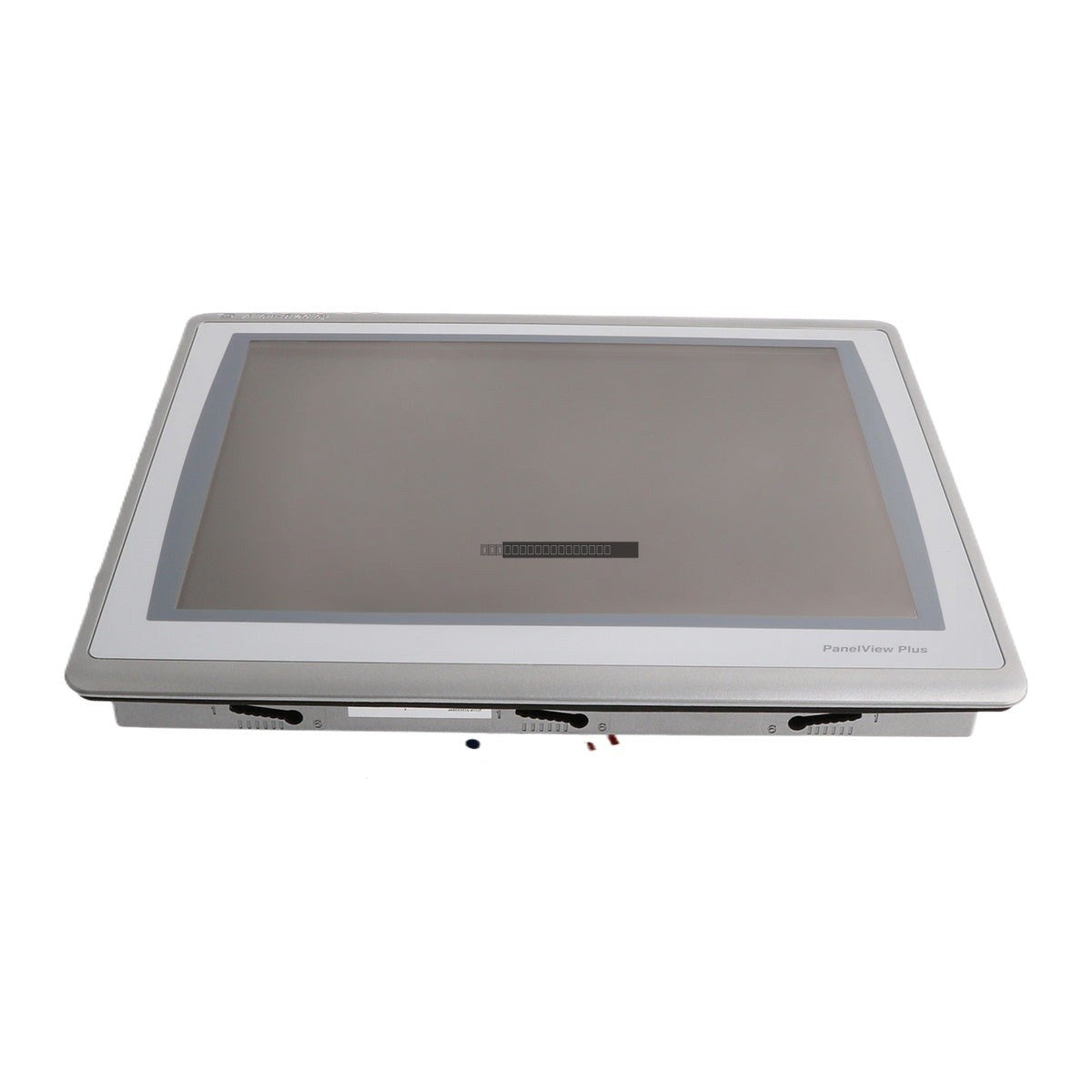

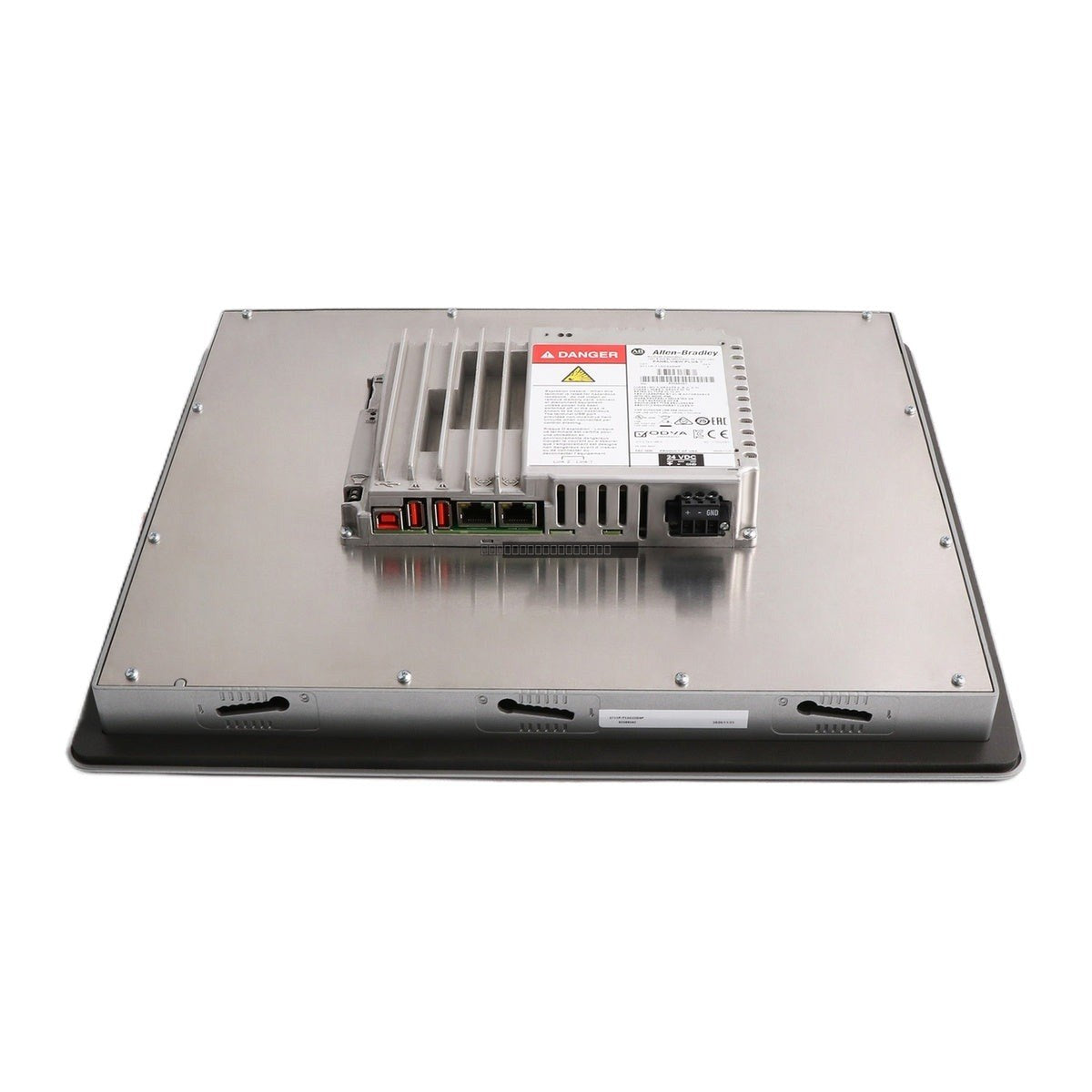

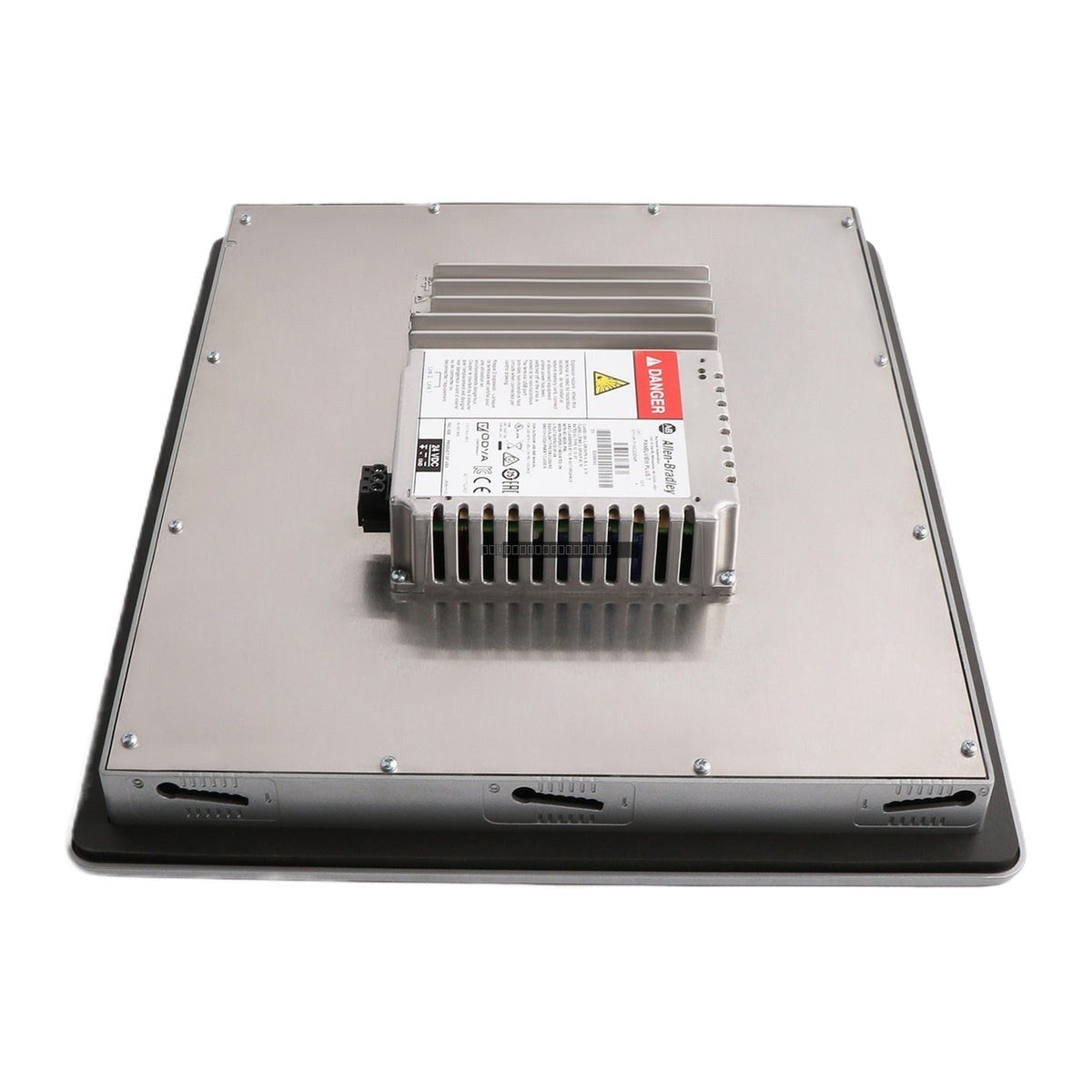

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Graphic Terminal

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Graphic Terminal

Description

The Allen-Bradley 2711P-T15C22D9P is a high-performance operator interface terminal from the PanelView Plus 7 series. Designed for demanding industrial environments, this 15-inch graphic terminal provides robust visualization and control capabilities....

25 people are viewing this right now

Availability: Low stock: 4 left

SKU: 2711P-T15C22D9P
Vendor: Allen-Bradley
Category: Graphic Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711P-T15C22D9P is a high-performance operator interface terminal from the PanelView Plus 7 series. Designed for demanding industrial environments, this 15-inch graphic terminal provides robust visualization and control capabilities. It features an analog resistive touchscreen for reliable operator input and a high-resolution color TFT display to ensure clear, real-time monitoring of machine and process data.

Features

  • 15-inch color active-matrix TFT display with 1024 x 768 XGA resolution.
  • Analog resistive touchscreen interface rated for 1 million actuations.
  • Integrated communication suite including two Ethernet ports and three USB host ports for flexible connectivity.
  • Performance-grade hardware with 512MB RAM and 512MB nonvolatile memory.
  • Input voltage range of 18-30 VDC, suitable for standard industrial control power supplies.

Technical Specifications

Model 2711P-T15C22D9P
Display Type Color active-matrix TFT
Resolution 1024 x 768 XGA, 18-bit color
Touchscreen Analog resistive
Input Voltage 18-30 VDC
Power Consumption 50 W max (2.1 A at 24V DC)
Communication 2x Ethernet, 3x USB Host
System Memory 512 MB RAM / 512 MB Nonvolatile
Operating Force 100 grams

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the specified enclosure rating.
  • Use appropriate grounding practices to protect against EMI and electrical noise in the control cabinet.
  • Verify that the power supply is within the 18-30 VDC range before connection to prevent damage to internal circuitry.
  • Maintain adequate clearance around the terminal to ensure proper ventilation and cooling during operation.
  • Always disconnect power before installing or removing the unit or connecting peripheral devices to the USB ports.

FAQ

What is the primary application for the 2711P-T15C22D9P?

This terminal is used as a human-machine interface (HMI) in industrial automation systems for monitoring, controlling, and visualizing process data in real-time.

Can this terminal be used in high-vibration environments?

The PanelView Plus 7 Performance series is built for industrial durability; however, always refer to the official Allen-Bradley installation manual for specific vibration and shock tolerance ratings regarding your installation site.

What type of touchscreen does this model use?

This model utilizes an analog resistive touchscreen, which is designed to be operated even when the user is wearing industrial gloves.
