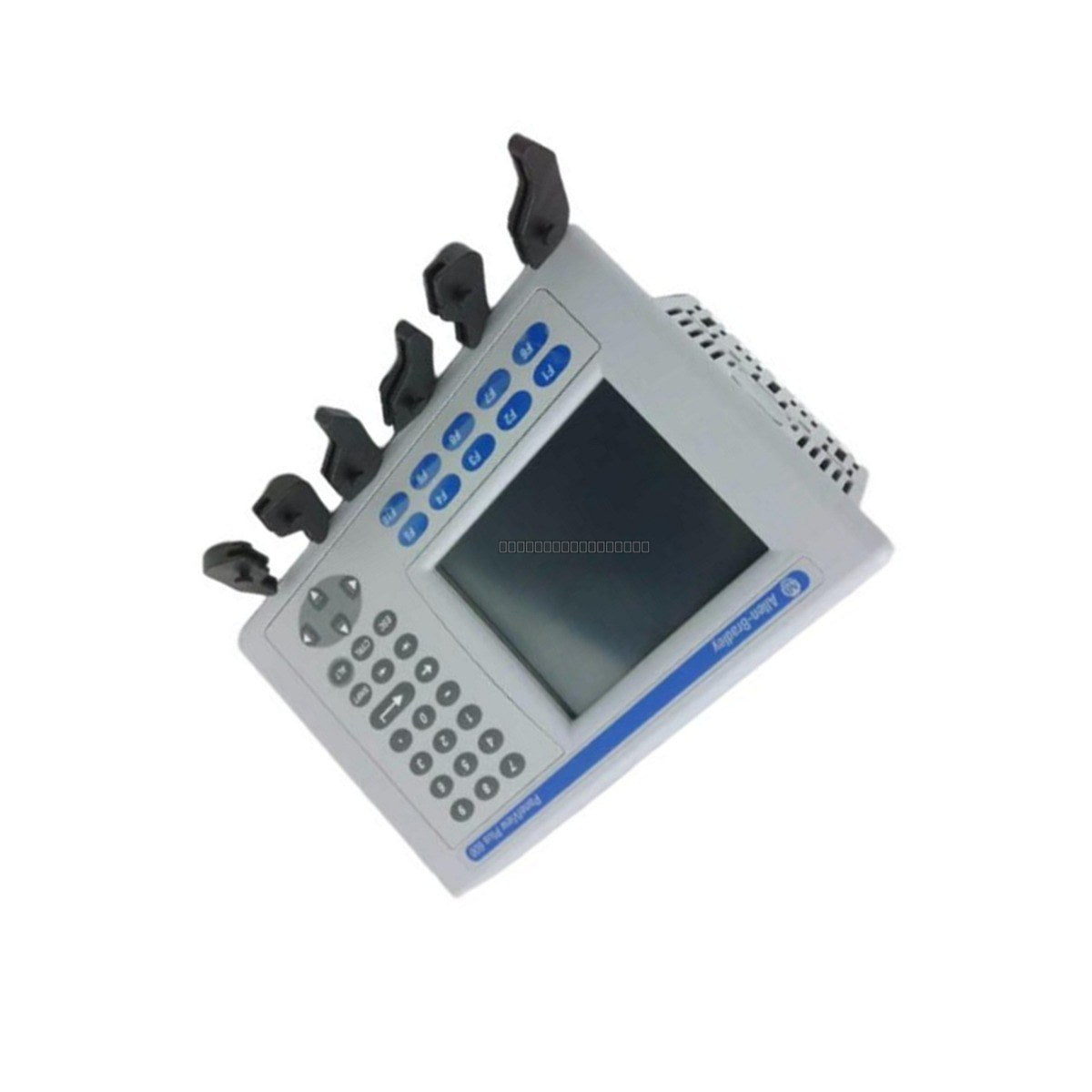

Allen-Bradley 2711P-B6C20D8 PanelView Plus 6 600 Graphic Interface Terminal

Allen-Bradley 2711P-B6C20D8 PanelView Plus 6 600 Graphic Interface Terminal

The 2711P-B6C20D8 is a high-performance Human Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 series. It is engineered for continuous process visualization and control in demanding industrial environments,...

22 people are viewing this right now

Availability: Low stock: 10 left

SKU: 2711P-B6C20D8
Vendor: Allen-Bradley
Category: Graphic Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The 2711P-B6C20D8 is a high-performance Human Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 series. It is engineered for continuous process visualization and control in demanding industrial environments, providing robust data processing and reliable operator interaction. With 512 MB of RAM and 512 MB of nonvolatile flash memory, this terminal supports complex applications requiring real-time feedback and high-speed communication.

Features

  • Dual-input interface featuring a 4-wire analog resistive touchscreen and a stainless-steel membrane keypad.
  • 5.7-inch active-matrix TFT color display with 320 x 240 resolution.
  • Integrated 10/100 Mbps Ethernet port supporting EtherNet/IP and CIP protocols.
  • RS-232 serial interface for point-to-point communication.
  • Dual USB host ports for peripheral connectivity (keyboards, mice, flash drives).
  • Dedicated SD card slot for external storage and data logging.
  • Battery-backed real-time clock using a field-replaceable CR2032 lithium coin cell.

Applications

This terminal is suitable for critical industrial automation tasks, including water treatment, automotive manufacturing, pharmaceutical packaging, and material handling systems where precise operator control and deterministic controller feedback are essential.

Technical Specifications

Model 2711P-B6C20D8
Display Size 5.7 inches
Resolution 320 x 240 pixels
System RAM 512 MB
Nonvolatile Memory 512 MB
Input Voltage 18-30 VDC (24 VDC nominal)
Power Consumption 15 W max
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Weight 0.94 kg

Installation Guidelines

  • Ensure the terminal is mounted in an enclosure rated for the intended environment (e.g., NEMA/UL Type 12, 13, or 4X).
  • Maintain adequate clearance around the unit to allow for proper ventilation and cooling.
  • Use shielded communication cables and ensure proper grounding to minimize EMI interference.
  • Power down the unit before inserting or removing any communication modules or memory cards.
  • Replace the CR2032 battery periodically according to the maintenance schedule to ensure real-time clock accuracy.

FAQ

What is the primary power requirement for this unit? The terminal operates on 18-30 VDC, with a nominal requirement of 24 VDC.

Can I use external storage with this HMI? Yes, the unit includes dual USB host ports for external flash drives and a dedicated SD card slot for data storage.

What type of operator input does this model support? This model features a dual-input design with both a 4-wire analog resistive touchscreen and a physical membrane keypad.
