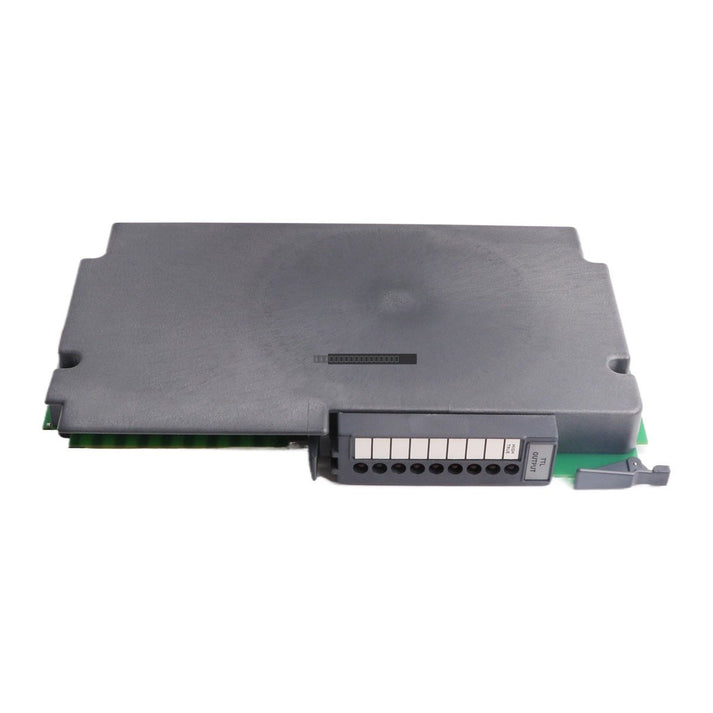

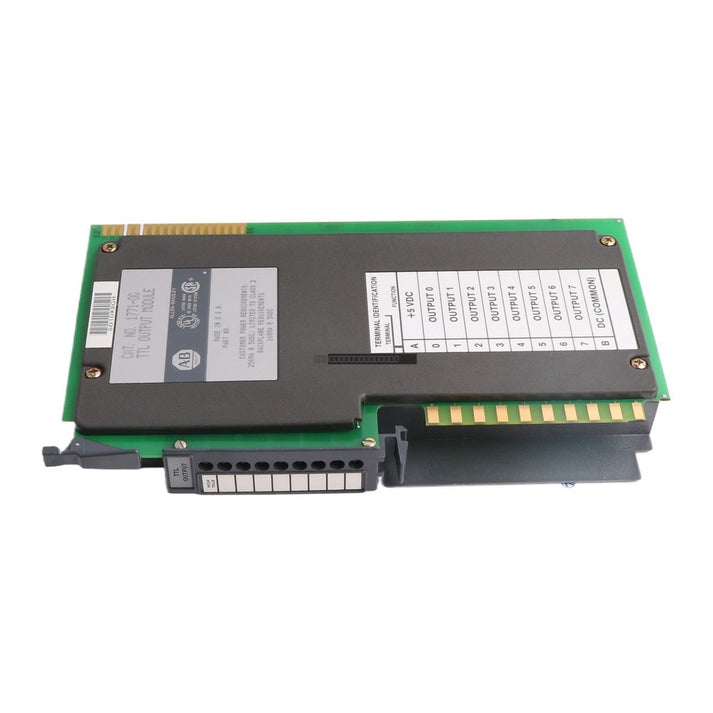

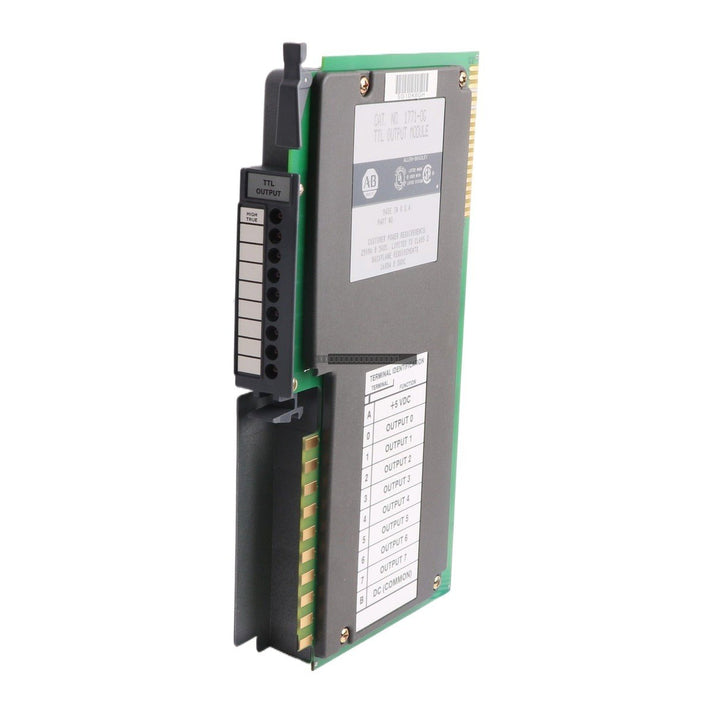

Allen-Bradley 1771-OG PLC-5 8-Point TTL Digital Output Module

Allen-Bradley 1771-OG PLC-5 8-Point TTL Digital Output Module

Description

The Allen-Bradley 1771-OG is an 8-point digital output module designed for use within the PLC-5 programmable controller system. This module provides TTL (Transistor-Transistor Logic) output signals, making it suitable for...

26 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1771-OG
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1771-OG is an 8-point digital output module designed for use within the PLC-5 programmable controller system. This module provides TTL (Transistor-Transistor Logic) output signals, making it suitable for interfacing with compatible logic-level devices and control systems requiring 5 VDC signal levels. As a member of the 1771 I/O family, it is engineered for high-density rack-based mounting in industrial automation environments.

Features

  • 8-point digital output configuration
  • TTL compatible signal levels for logic-level integration
  • Designed for seamless integration with the Allen-Bradley PLC-5 platform
  • Standard 1771 I/O chassis mounting
  • Reliable performance for low-voltage control applications

Technical Specifications

Model 1771-OG
Module Type Digital Output Module
Output Type TTL
Voltage Rating 5 VDC
Current Draw 165 mA
Point Count 8
Manufacturer Allen-Bradley

Installation Guidelines

  • Ensure the PLC-5 chassis power is disconnected before installing or removing the 1771-OG module to prevent electrical damage.
  • Verify that the module is correctly seated in the intended I/O slot and that the backplane connector is fully engaged.
  • Use appropriate ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.
  • Ensure that wiring is routed away from high-voltage cables and sources of electromagnetic interference to maintain signal integrity.
  • Check that the field wiring connected to the terminal block matches the voltage and current specifications of the module.

FAQ

Is the 1771-OG still in production?

No, the 1771-OG has been discontinued by the manufacturer. We provide high-quality surplus and refurbished units to support legacy PLC-5 systems.

What is the primary application for this module?

This module is primarily used in applications requiring 5 VDC TTL-level digital outputs, commonly found in legacy control systems and specific instrumentation interfaces within the PLC-5 architecture.
