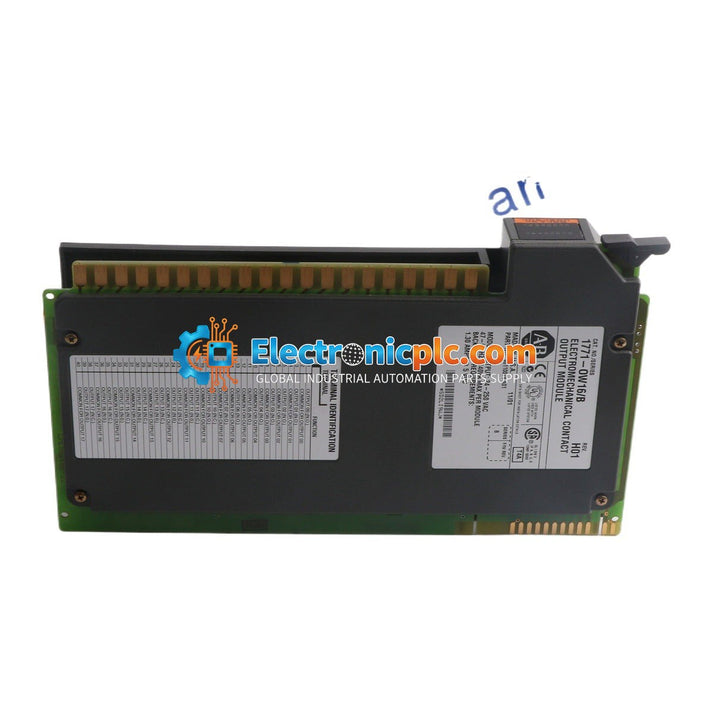

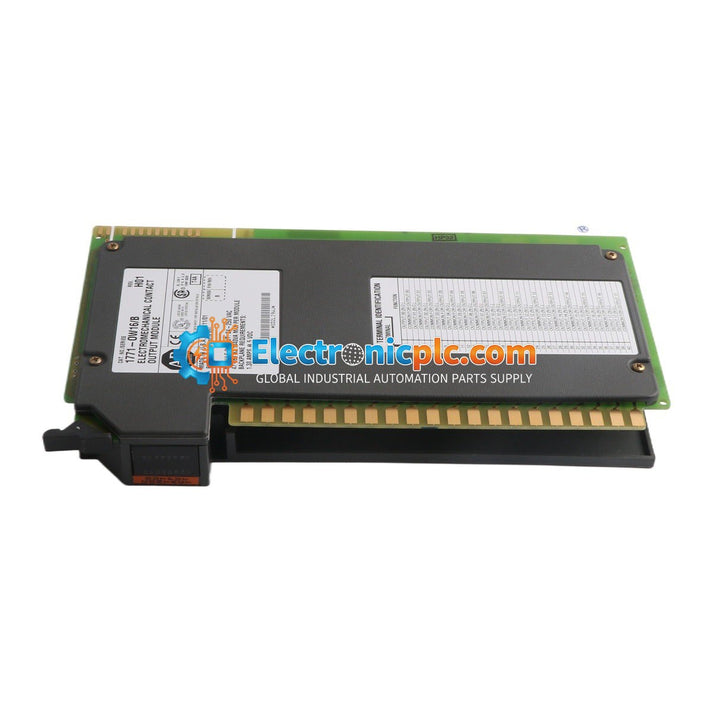

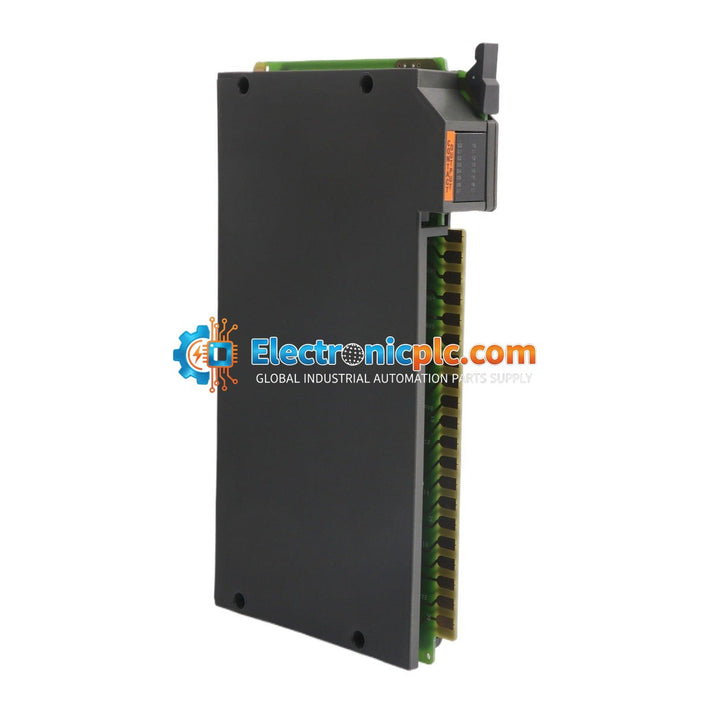

Allen-Bradley 1771-OW16 PLC-5 16-Point Digital Output Module

Allen-Bradley 1771-OW16 PLC-5 16-Point Digital Output Module

Description

The Allen-Bradley 1771-OW16 is a high-performance 16-point digital output module designed for use with the PLC-5 programmable controller system. This module provides reliable switching for industrial control applications, featuring channel-isolated...

18 people are viewing this right now

Availability: In stock

SKU: 1771-OW16
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1771-OW16 is a high-performance 16-point digital output module designed for use with the PLC-5 programmable controller system. This module provides reliable switching for industrial control applications, featuring channel-isolated contact outputs to ensure signal integrity and protection against cross-channel interference. It is engineered to handle a wide range of AC voltage requirements, making it a versatile choice for diverse automation environments.

Features

  • 16 isolated output channels for flexible control logic.
  • Supports a voltage range of 24-250 VAC at 50/60 Hz.
  • Maximum current rating of 2 Amps per channel.
  • Designed for seamless integration with the Allen-Bradley 1771 I/O chassis.
  • Robust construction suitable for demanding industrial environments.

Applications

This module is typically utilized in PLC-5 control systems for managing industrial actuators, motor starters, solenoid valves, and indicator lamps. Its channel-isolated design makes it particularly effective in applications where individual circuit isolation is required to prevent ground loops or to facilitate independent control of different voltage segments.

Technical Specifications

Product Model 1771-OW16
Module Type Digital Output Module
Point Count 16
Voltage Range 24-250 VAC
Frequency 50/60 Hz
Output Type Channel-Isolated Contact
Current Rating 2 Amps per channel
Manufacturer Allen-Bradley

Installation Guidelines

  • Ensure the PLC-5 chassis is powered down before installing or removing the 1771-OW16 module to prevent electrical damage.
  • Slide the module into the designated slot in the I/O chassis, ensuring it is properly seated in the backplane connector.
  • Secure the module using the integrated locking tabs to prevent vibration-induced disconnection.
  • Use shielded cabling for output signals to minimize electromagnetic interference (EMI) in high-noise environments.
  • Verify that the field wiring matches the terminal layout and that all connections are tightened to the specified torque requirements.
  • Maintain adequate clearance around the chassis to ensure proper ventilation and cooling for the module electronics.

FAQ

What is the primary function of the 1771-OW16?

The 1771-OW16 is a digital output module used to interface a PLC-5 controller with field devices, allowing the PLC to control external equipment via 16 isolated contact outputs.

Is this module compatible with other PLC systems?

The 1771-OW16 is specifically designed for the Allen-Bradley PLC-5 1771 I/O platform. It is not intended for use with other controller families like ControlLogix or SLC 500.
