Allen-Bradley 1771-OZL PLC-5 Digital Output Module

Allen-Bradley 1771-OZL PLC-5 Digital Output Module

Description

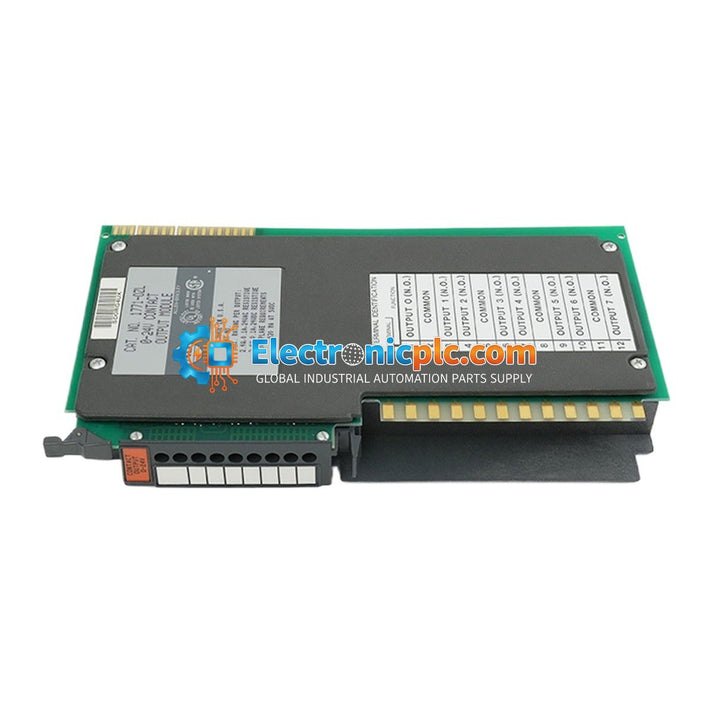

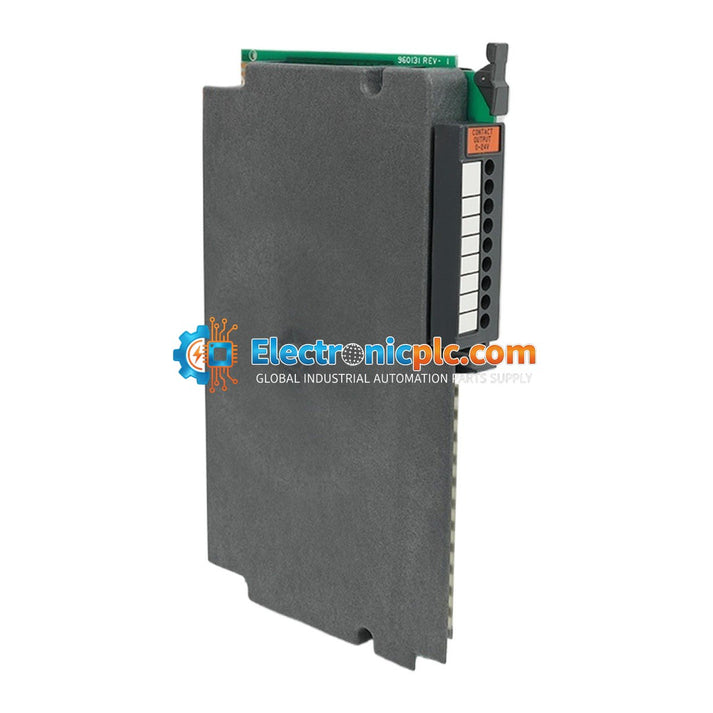

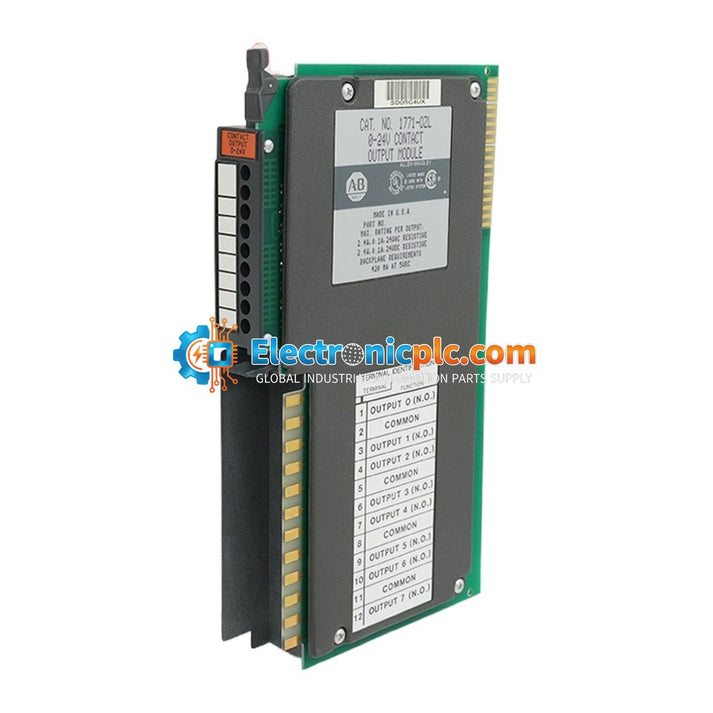

The Allen-Bradley 1771-OZL is a high-performance digital output module designed for the PLC-5 programmable controller system. This module features 8 reed relay contact outputs, providing reliable switching for low-voltage control...

26 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1771-OZL
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1771-OZL is a high-performance digital output module designed for the PLC-5 programmable controller system. This module features 8 reed relay contact outputs, providing reliable switching for low-voltage control applications. It is engineered for integration into 1771 I/O chassis, offering a robust solution for industrial automation tasks requiring isolated contact switching.

Features

  • 8 Form A (Normally Open) reed relay outputs.
  • Configured in 4 groups of 2 outputs each.
  • Supports a voltage range of 0–24 V AC RMS or 0–24 V DC.
  • Fast switching performance with 1 ms maximum operate/release and bounce times.
  • High isolation voltage: 1000 V between open contacts and 1500 V between coil and contact.
  • Compact design for standard 1771 I/O chassis mounting.

Technical Specifications

Model 1771-OZL
Outputs per Module 8 (4 groups of 2)
Contact Configuration 8 Form A (N.O.)
Voltage Rating 0–24 V AC RMS / 0–24 V DC
Current Rating 100 mA per output
Switching Frequency 10 Hz maximum
Backplane Current 420 mA maximum
Operate/Release Time 1 ms maximum
Bounce Time 1 ms maximum

Installation Guidelines

  • Ensure the PLC-5 chassis power is disconnected before installing or removing the 1771-OZL module to prevent electrical damage.
  • Verify the module is fully seated in the 1771 I/O chassis slot and secured with the locking tabs.
  • Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
  • Ensure field wiring is routed away from high-voltage AC lines and high-current power cables.
  • Observe the 100 mA per output current limit to prevent relay contact degradation.
  • Maintain adequate ventilation within the enclosure to ensure the module operates within its specified temperature range.

FAQ

What type of relay does the 1771-OZL use?

The 1771-OZL utilizes reed relays, which are ideal for low-current, high-speed switching applications where mechanical durability and fast response times are required.

Can this module be used for AC and DC loads?

Yes, the 1771-OZL is rated for both 0–24 V AC RMS and 0–24 V DC, making it versatile for various low-voltage signal control requirements.
