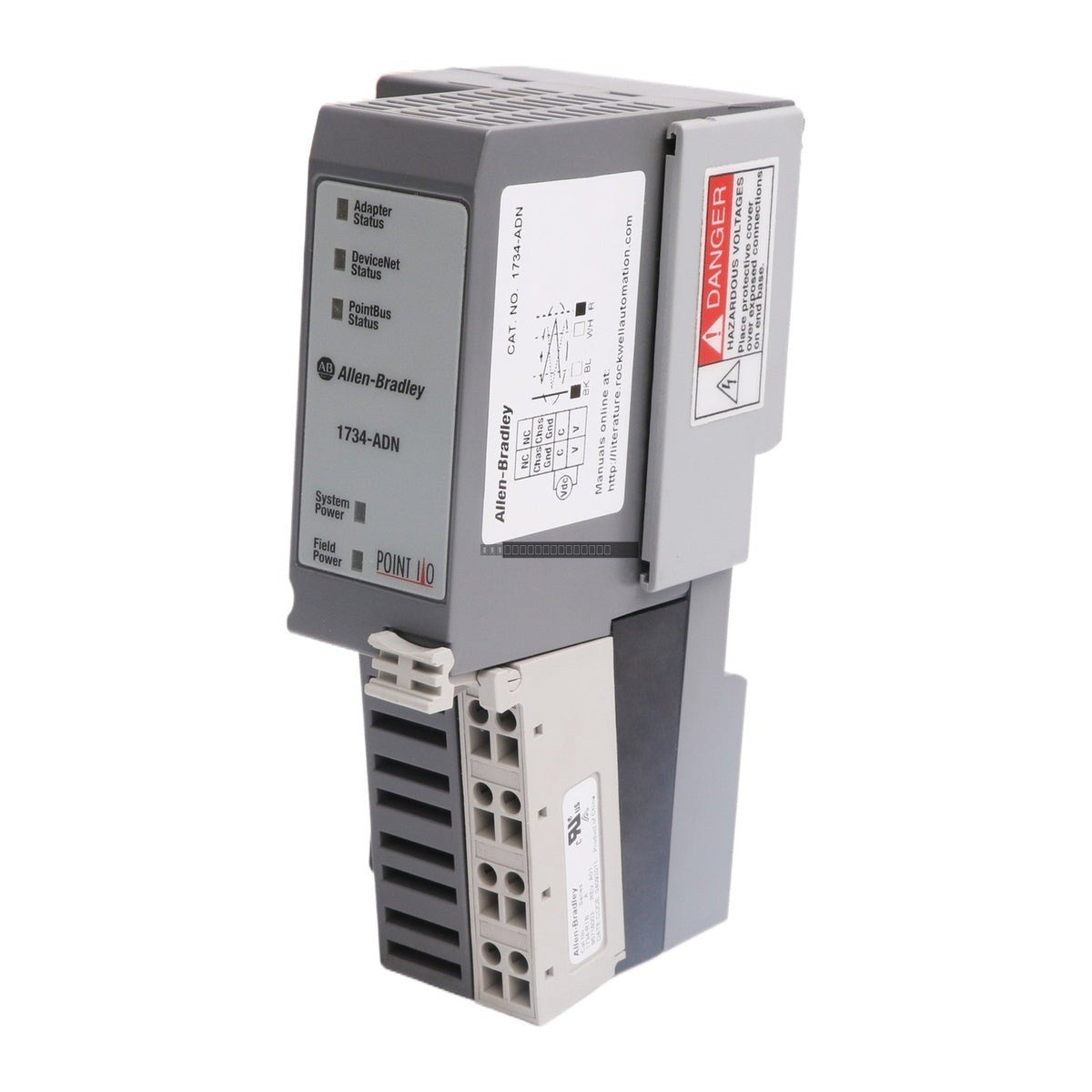

Allen-Bradley 1734-ADN POINT I/O DeviceNet Network Adapter

Allen-Bradley 1734-ADN POINT I/O DeviceNet Network Adapter

Description

The Allen-Bradley 1734-ADN is a high-performance DeviceNet network adapter designed for the POINT I/O system. This modular communication interface facilitates seamless data exchange between the DeviceNet network and connected I/O...

21 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1734-ADN
Vendor: Allen-Bradley
Category: Communication Adapter
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1734-ADN is a high-performance DeviceNet network adapter designed for the POINT I/O system. This modular communication interface facilitates seamless data exchange between the DeviceNet network and connected I/O modules, supporting up to 504 I/O points. It is engineered for industrial environments requiring reliable, distributed I/O control.

Features

  • Supports DeviceNet communication protocols with selectable baud rates of 125, 250, or 500 kbit/s.
  • Modular design allows for flexible configuration and easy expansion of I/O points.
  • Compact form factor optimized for space-constrained control cabinets.
  • Designed for 24V DC power input with low power consumption.
  • Compatible with the extensive Allen-Bradley POINT I/O product family.

Technical Specifications

Product Model 1734-ADN
Communication Protocol DeviceNet
Input Voltage 24V DC
Current Consumption 50 mA
I/O Capacity Up to 504 I/O points
Baud Rates 125, 250, 500 kbit/s
Weight 0.26 kg

Installation Guidelines

  • Ensure the power is disconnected from the system before installing or removing the adapter module.
  • Mount the 1734-ADN onto a standard DIN rail, ensuring it is securely seated and locked into the backplane.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) in the control environment.
  • Use shielded twisted-pair cabling for DeviceNet connections to ensure signal integrity.
  • Verify that the power supply meets the 24V DC requirements and is properly fused according to local electrical codes.
  • Ensure adequate ventilation around the module to prevent overheating during continuous operation.

FAQ

What is the primary function of the 1734-ADN?

The 1734-ADN acts as a communication gateway, allowing a DeviceNet master to control and monitor a cluster of POINT I/O modules.

Can this module be used with different baud rates?

Yes, the 1734-ADN supports selectable communication speeds of 125, 250, and 500 kbit/s to accommodate various network requirements.

Is this module hot-swappable?

While the POINT I/O system supports RIUP (Removable Insertion Under Power) for many components, always consult the specific system manual and safety protocols before performing maintenance on live equipment.
