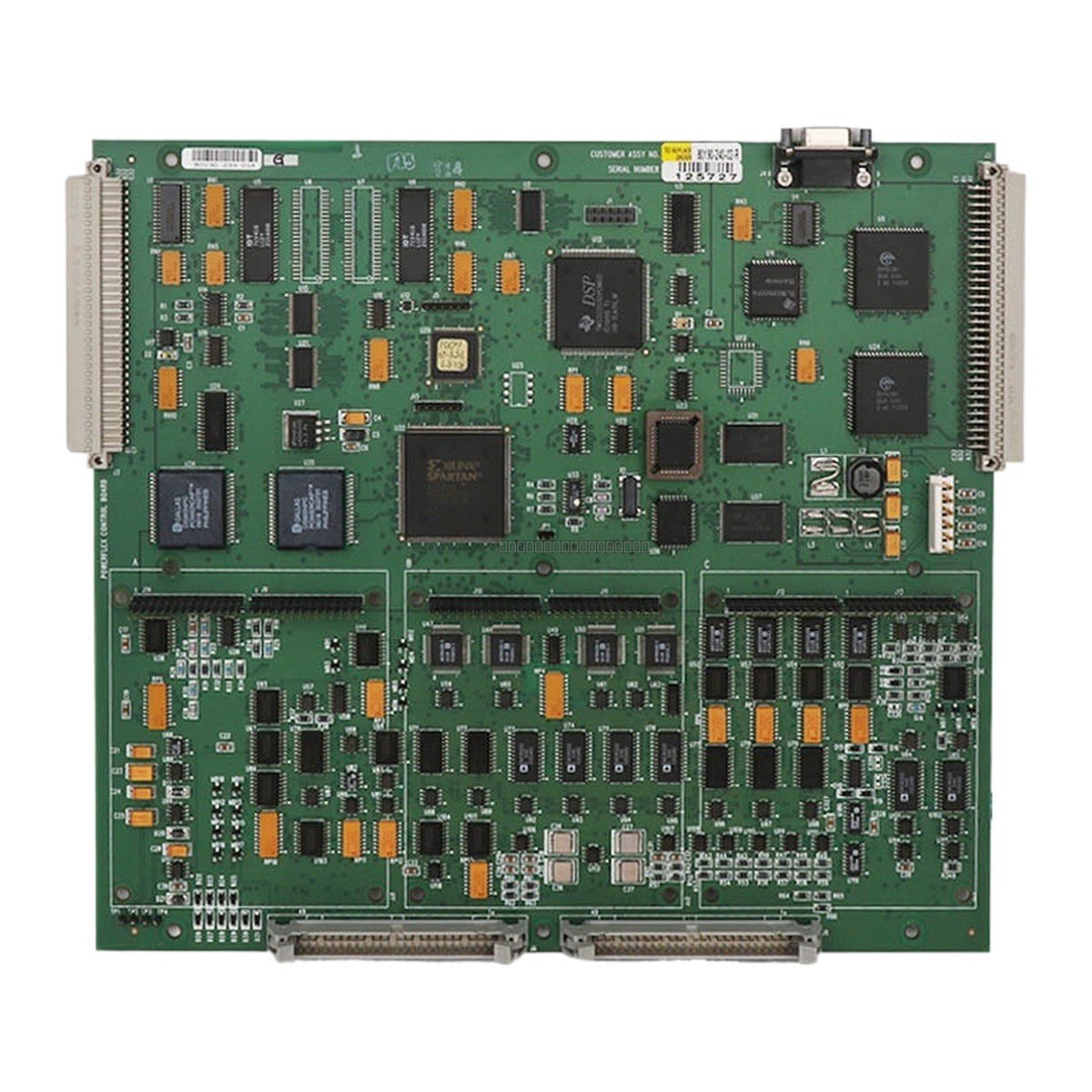

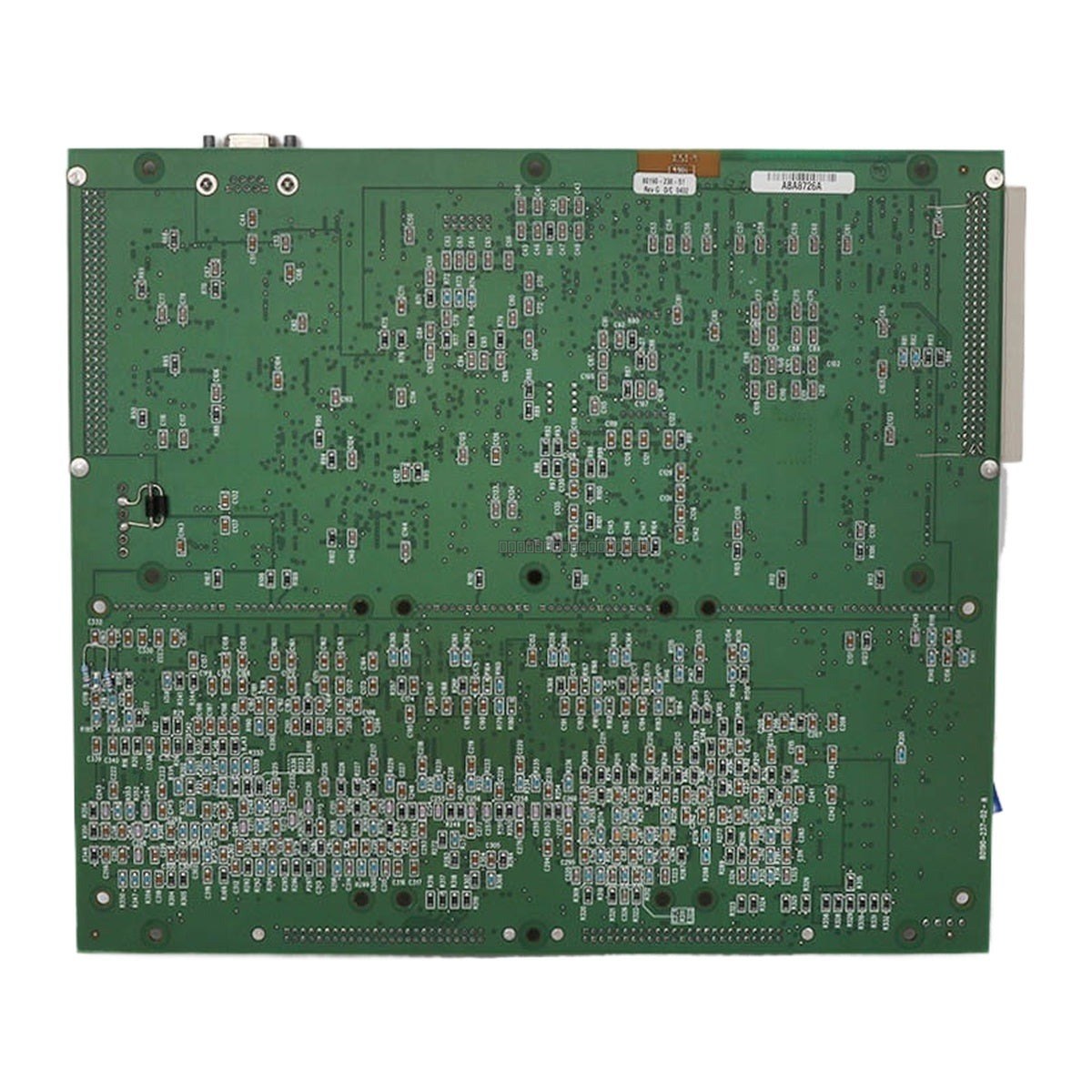

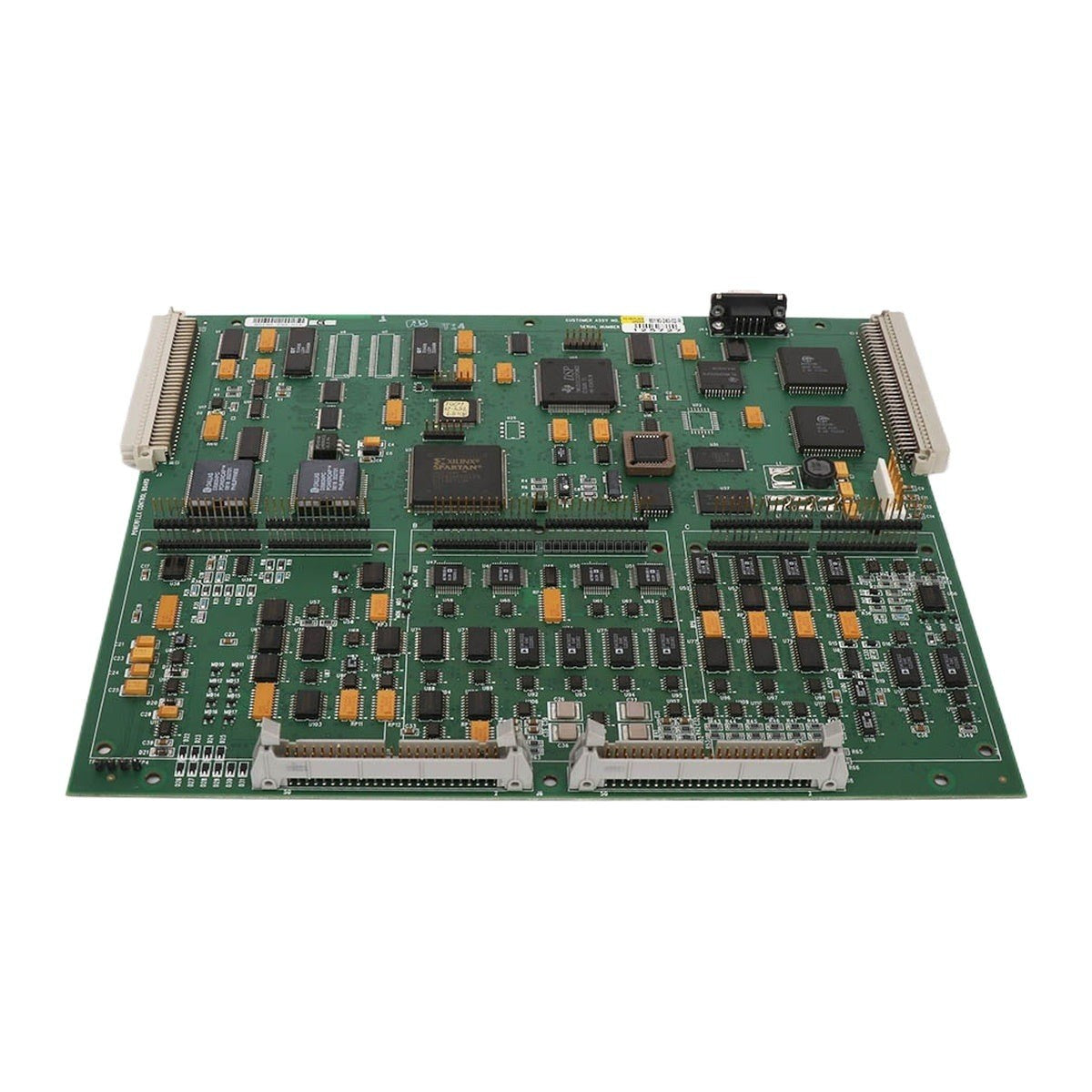

Allen-Bradley 80190-240-02-R PowerFlex Control Board

Allen-Bradley 80190-240-02-R PowerFlex Control Board

The Allen-Bradley 80190-240-02-R is a main control board designed for the PowerFlex 700S series of high-performance adjustable frequency AC drives. It serves as the central processing and signal routing hub...

17 people are viewing this right now

Availability: Low stock: 5 left

SKU: 80190-240-02-R
Vendor: Allen-Bradley
Category: VFD Control Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 80190-240-02-R is a main control board designed for the PowerFlex 700S series of high-performance adjustable frequency AC drives. It serves as the central processing and signal routing hub for drive control, motor management, and system communication within industrial drive installations.

Features

  • Central control and processing module for PowerFlex VFD systems
  • Integrated digital signal processor (DSP) and FPGA architecture
  • Supports field-oriented control (FOC) for high-speed torque response
  • Integrated fault monitoring and system diagnostics
  • Compatible with permanent magnet motor control via encoder/resolver feedback
  • Supports sensorless direct vector control and full vector control modes

Applications

  • Oil & Gas: High-capacity pumps, compressors, and pipeline systems
  • Mining & Minerals: Heavy-duty conveyors, grinding mills, and industrial fans
  • Water & Wastewater: Large-scale municipal pump stations
  • Power Generation: ID/FD boiler fans in utility plants
  • Marine: Electric propulsion and heavy thruster control

Technical Specifications

Model 80190-240-02-R
Manufacturer Allen-Bradley
Input Voltage 240 V AC
No-Load Power Draw 2.16 W @ 24 V DC
Full-Load Power Draw 2.88 W @ 24 V DC
Frequency Tolerance 47 to 63 Hz
Operating Temperature 0 degC to 40 degC
Storage Temperature -40 degC to 85 degC
Relative Humidity 5% to 95% (non-condensing)

Interfaces

  • Isolated RS-232 and RS-485/422 serial ports
  • 10/100 Mbps Ethernet with auto-MDIX and Modbus-TCP support
  • Drive Peripheral Interface (DPI) for HIMs and communication adapters

Installation Guidelines

  • Ensure all power is disconnected from the drive before attempting to remove or install the control board.
  • Use ESD-safe handling procedures when touching the board to prevent damage to sensitive internal components.
  • Align the board carefully within the designated chassis slot and ensure all pins are properly seated before fastening retaining screws.
  • Verify that all fiber optic cables and plug-in connectors are securely reattached after installation.
  • Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the specified 0 to 40 degC range.

FAQ

Is the 80190-240-02-R compatible with the 80190-480-21-R control board?

Yes, these boards are compatible and share the same 2.005 boot PROM assembly architecture, allowing them to function within the same PowerFlex 7000 Classic control structures.

Does the replacement control board include the drive firmware?

The control board typically includes the DSP chip, but it does not include the drive firmware. You may need to load the appropriate firmware version for your specific application.
