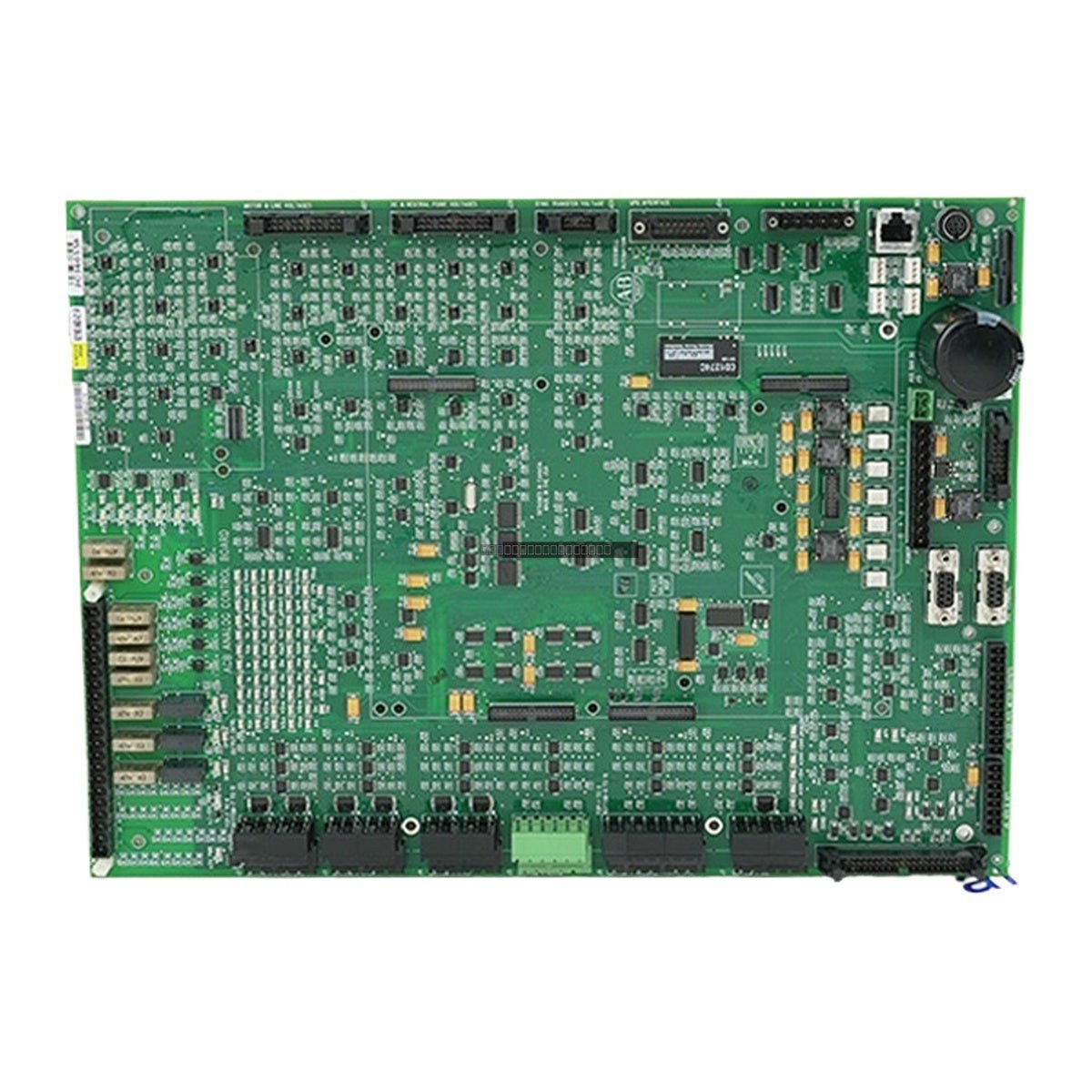

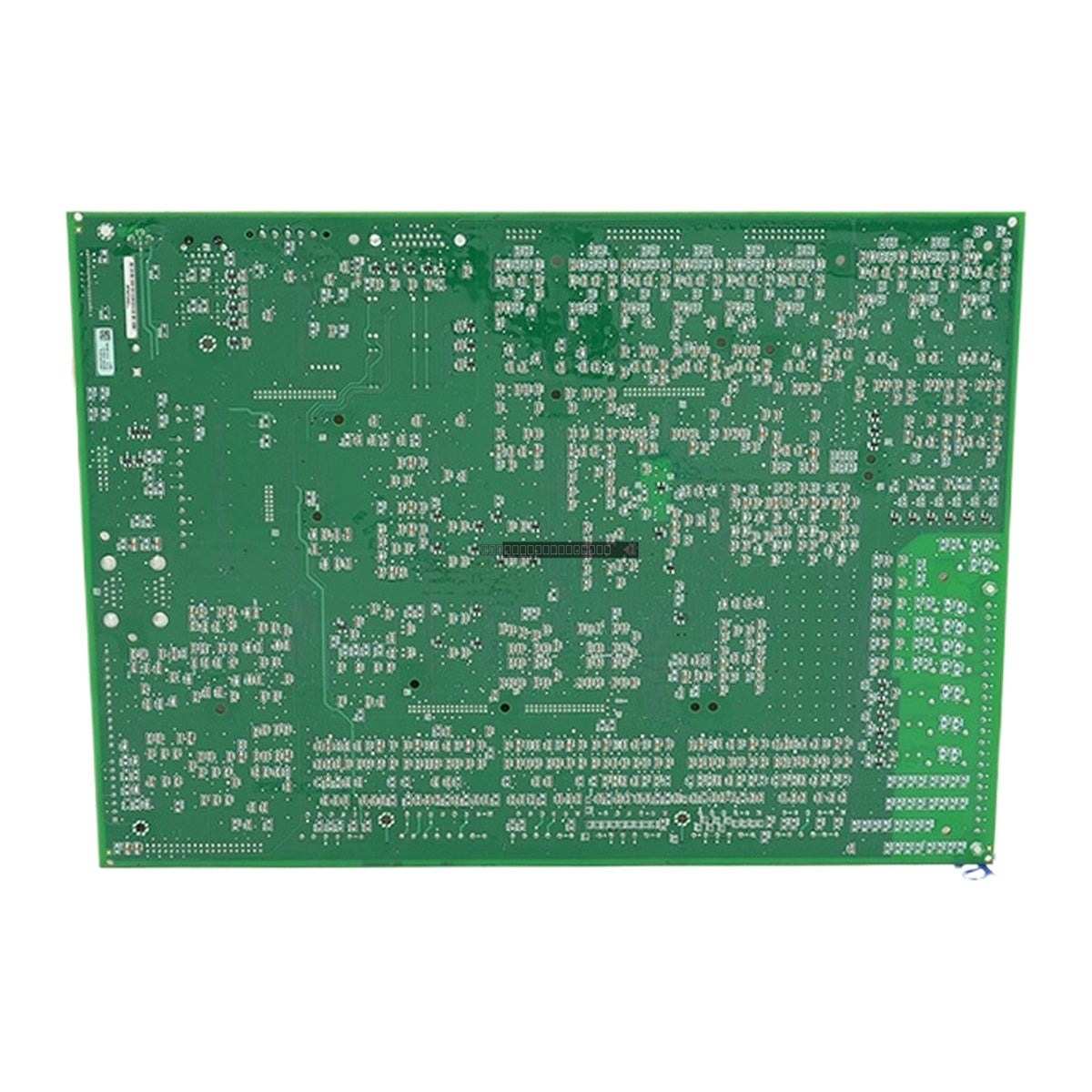

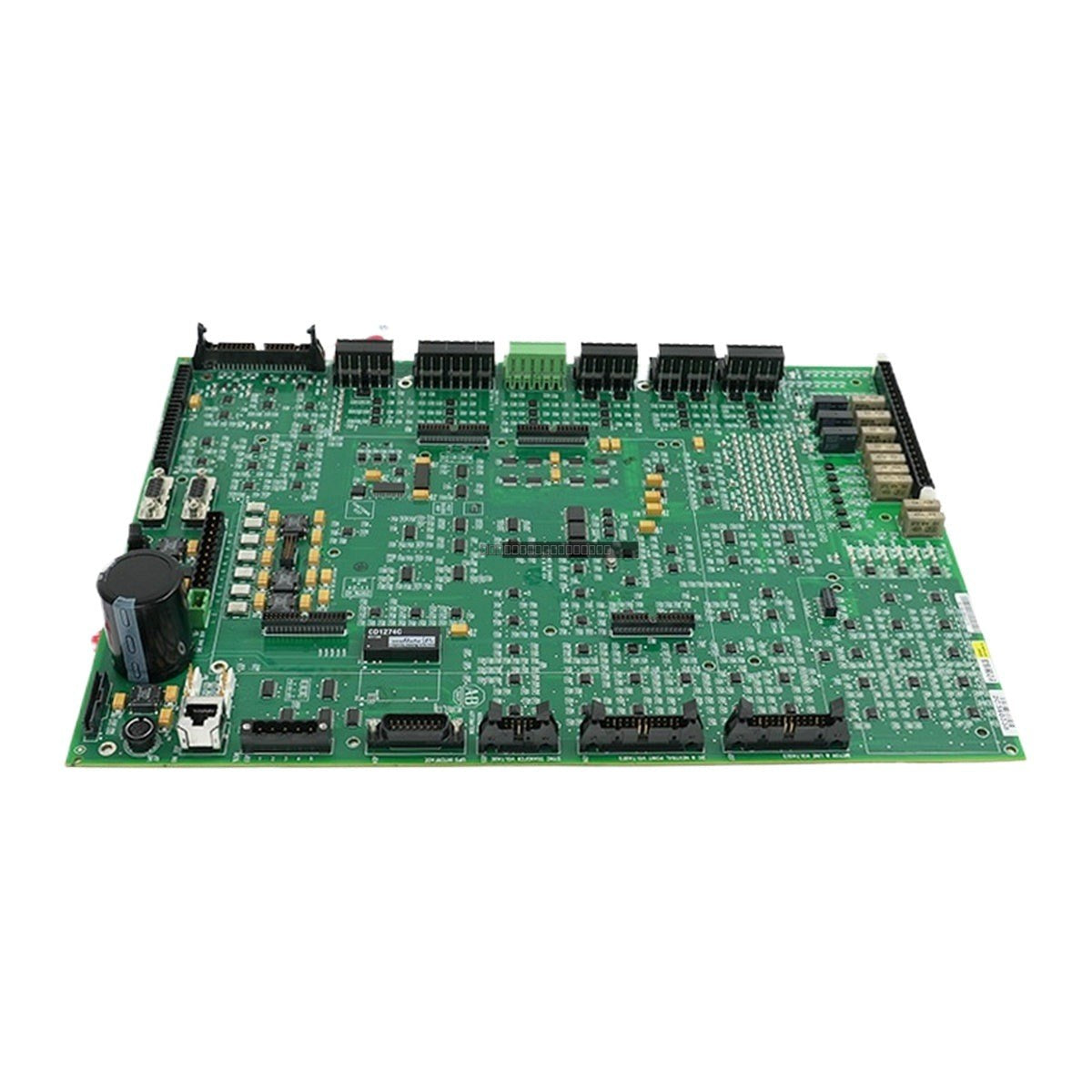

Allen-Bradley 80190-560-01-R PowerFlex 7000 Controller Circuit Board

Allen-Bradley 80190-560-01-R PowerFlex 7000 Controller Circuit Board

The Allen-Bradley 80190-560-01-R is a high-performance Analog Control Board (ACB) engineered for integration within PowerFlex 7000 18-pulse medium-voltage AC drives. This controller circuit board serves as a central processing unit...

16 people are viewing this right now

Availability: Low stock: 10 left

SKU: 80190-560-01-R
Vendor: Allen-Bradley
Category: Controller Circuit Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 80190-560-01-R is a high-performance Analog Control Board (ACB) engineered for integration within PowerFlex 7000 18-pulse medium-voltage AC drives. This controller circuit board serves as a central processing unit for analog signal management, providing precise regulation for motor speed and torque control in demanding industrial environments.

Features

  • Designed specifically for PowerFlex 7000 18-pulse medium-voltage drive architectures.
  • Microprocessor-based electronic protection scheme, reducing reliance on traditional semiconductor fuses.
  • Integrated DC link monitoring to detect voltage drops and trigger protective trips (Fault Codes 48–51).
  • Supports thermal management through heatsink temperature monitoring and cooling system supervision via air flow pressure switches.
  • Supports Safe Torque Off (STO) functionality for secure motor power removal.
  • High-resolution 12-bit ADC/DAC processing for accurate analog signal conversion.

Applications

  • Oil & Gas: Pipeline pumping stations and refinery process control.
  • Mining & Minerals: Heavy-duty conveyor systems, crushers, mills, and mine elevators.
  • Power Generation: Boiler feed pumps, induced draft fans, and circulating water systems.
  • Water & Wastewater: Large-scale raw water pumps and pressurized distribution stations.

Technical Specifications

Model 80190-560-01-R
Supply Voltage 24 V DC
Current Draw 50 mA (typ) / 70 mA (max)
Power Consumption 1.2 W
Analog Inputs 4 channels (0/4-20 mA or 0/1-5 V)
Analog Outputs 2 channels (0/4-20 mA or 0/1-5 V)
Resolution 12-bit ADC / DAC
Accuracy +/- 0.1 % FSR
Isolation 1500 V AC

Installation Guidelines

  • Ensure the drive is fully de-energized and locked out before attempting to install or remove the control board.
  • Handle the PCB using standard electrostatic discharge (ESD) precautions to prevent damage to sensitive components.
  • Verify that all ribbon cables and terminal connections are securely seated before applying power.
  • Document all existing fault codes on the operator interface prior to a reset to avoid potential damage to SGCT or SCR components.
  • Ensure the cooling fan and airflow pressure switches are functional, as the ACB requires proper thermal conditions for operation.

FAQ

What is the primary function of the 80190-560-01-R?

This board acts as the Analog Control Board for the PowerFlex 7000 drive, managing analog I/O signals to ensure precise motor regulation across voltage ranges from 2400V to 6600V.

How can I verify a DC fault on this board?

Monitor terminals J18 through J21. Under normal operating conditions, a 5V DC signal should be present at terminal J18 (pins 2-3); a reading of 0V indicates a fault condition.

Is this board compatible with EOL drives?

Yes, this component is often used to maintain and support legacy PowerFlex 7000 systems that have reached their manufacturer End-Of-Life status.
