Allen-Bradley 81007-465-51-R Voltage Sensing Board

Allen-Bradley 81007-465-51-R Voltage Sensing Board

Description

The Allen-Bradley 81007-465-51-R is a precision voltage sensing board designed for integration within PowerFlex drive systems. This module provides reliable monitoring and signal conditioning for both AC and DC voltage...

18 people are viewing this right now

Availability: Low stock: 10 left

SKU: 81007-465-51-R
Vendor: Allen-Bradley
Category: Voltage Sensing Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

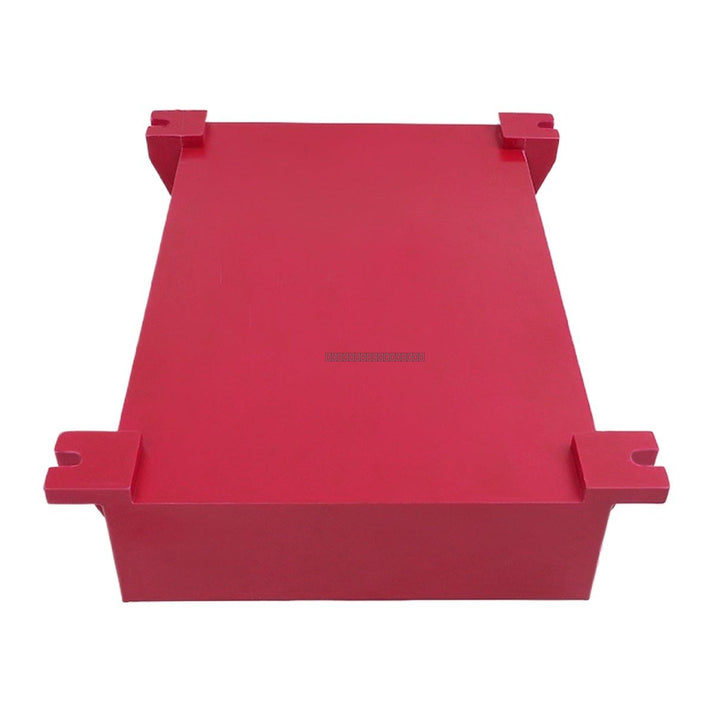

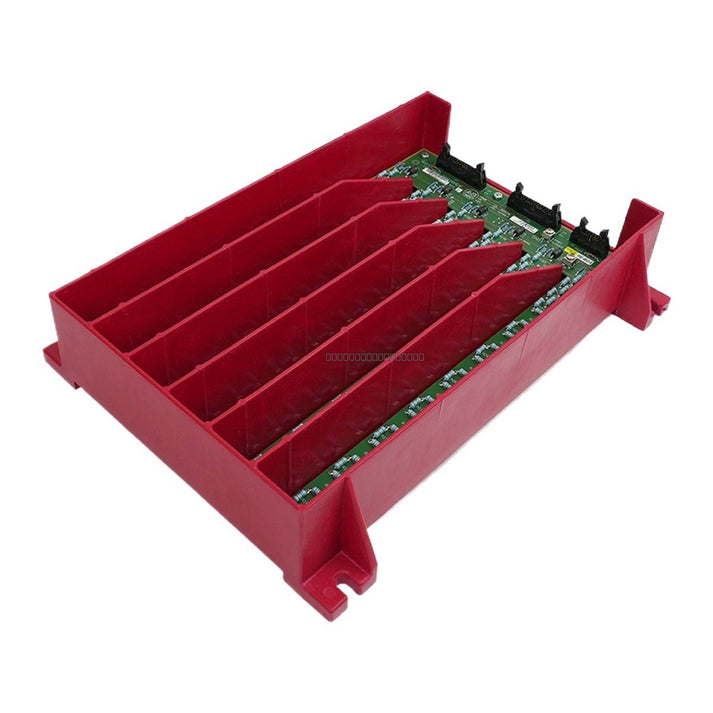

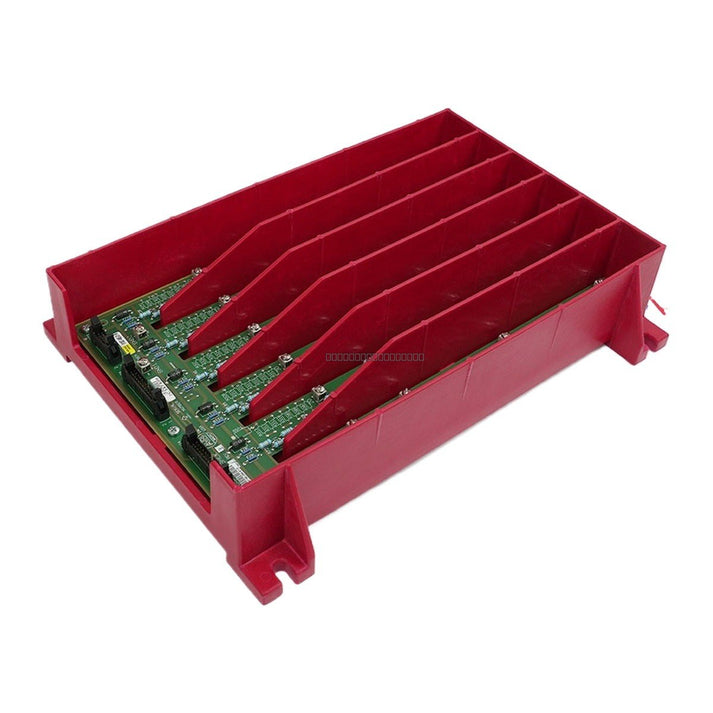

The Allen-Bradley 81007-465-51-R is a precision voltage sensing board designed for integration within PowerFlex drive systems. This module provides reliable monitoring and signal conditioning for both AC and DC voltage inputs, converting high-voltage levels into standard industrial control signals for drive diagnostics and feedback loops.

Features

  • Wide input range supporting 0 to 600 V AC and 0 to 1000 V DC.
  • High isolation voltage of 2500 V AC to ensure system safety and signal integrity.
  • Selectable output signal options of 0 to 10 V DC or 4 to 20 mA.
  • Accuracy rating of +/- 1% of full scale for precise monitoring.
  • Designed for standard industrial power frequency response at 50/60 Hz.

Technical Specifications

Product Model 81007-465-51-R
Manufacturer Allen-Bradley
AC Voltage Input 0 to 600 V AC
DC Voltage Input 0 to 1000 V DC
Isolation Voltage 2500 V AC
Output Signal 0 to 10 V DC or 4 to 20 mA
Accuracy +/- 1% Full Scale
Frequency Response 50/60 Hz
Operating Temperature -20 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity Tolerance 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure all power is disconnected from the drive and the sensing circuit before installation or removal of the board.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
  • Verify that the input voltage levels do not exceed the specified maximum ratings to prevent permanent damage to the sensing circuitry.
  • Ensure the board is securely seated in its designated slot or mounting position to maintain proper electrical contact.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.

FAQ

What is the primary function of the 81007-465-51-R board?

This board acts as a voltage sensing interface, converting high-voltage input levels into standard 0-10V or 4-20mA signals suitable for monitoring by a drive controller or PLC.

Can this board be used for both AC and DC applications?

Yes, the module is designed to handle both AC voltage (0-600V) and DC voltage (0-1000V) inputs.
