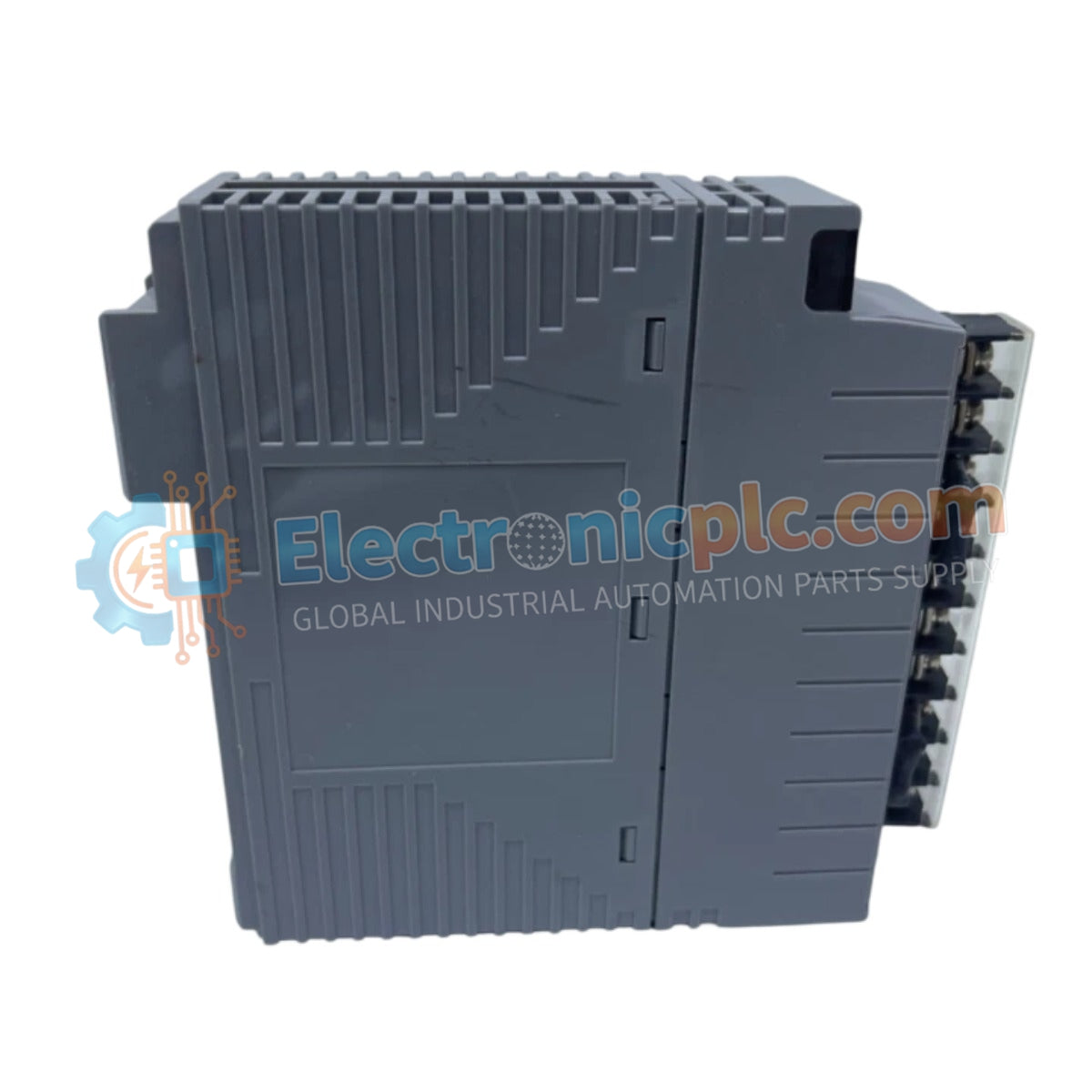

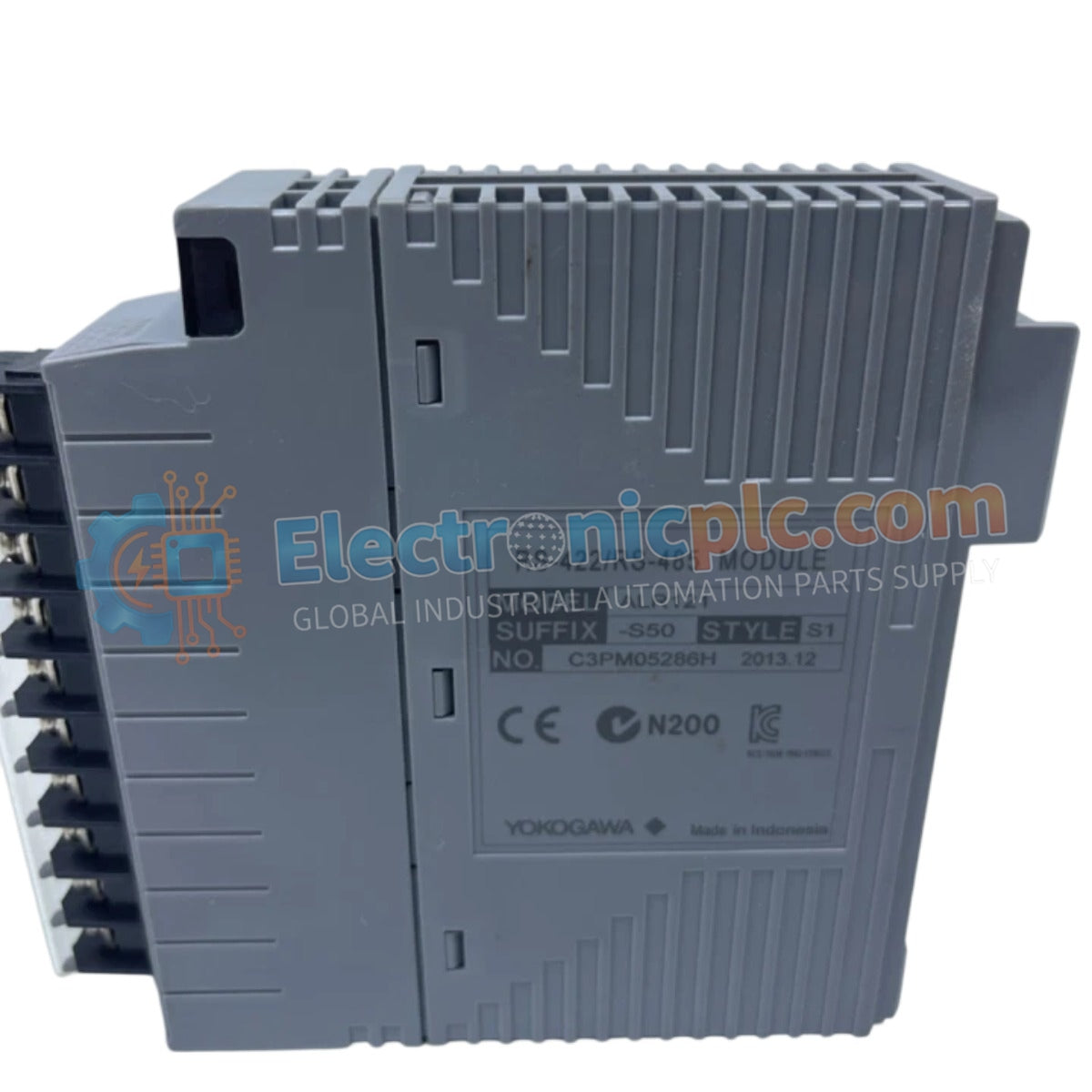

The YOKOGAWA ALR121-S50, also cataloged as the ALR121 Communication Module, operates as a dedicated hardware component for serial communication interfacing within CENTUM VP control systems.

Suffix Breakdown & Model Matrix

The ALR121 series utilizes a specific suffix code structure to define network interface standards and environmental protection levels:

• Model ALR121: Serial communication module for RS-232/RS-422/RS-485 interfaces.
• Suffix S50: Standard configuration for integration with CENTUM VP field control stations.

Hardware Specifications

Process Control Connectivity and Signal Integrity

The ALR121-S50 module acts as a high-speed serial interface, facilitating data exchange between the control station and third-party subsystems such as PLCs, analyzers, or barcode scanners. The internal architecture facilitates channel-to-channel isolation, preventing common-mode noise propagation between disparate serial loops. By executing robust signal conditioning, the module ensures that asynchronous data packets maintain integrity over various cable lengths. The module is engineered to handle variable baud rates, maintaining deterministic communication performance within the DCS environment.

Frequently Asked Questions

Q: Does the ALR121-S50 support simultaneous operation of different serial standards?

A: The module is designed to support specific serial physical layers. Verification of the module wiring and configuration settings is required to ensure compatibility with the selected RS-232, RS-422, or RS-485 standard.

Q: Is this module hot-swappable?

A: Yes. The ALR121-S50 supports removal and insertion while the control station is powered, provided that local safety and maintenance procedures are strictly followed to avoid electrical discharge during the process.

Field Installation Guidelines

1. Ensure the control station is de-energized and follows lockout-tagout protocols before commencing hardware installation.
2. Align the ALR121-S50 module with the guide rails on the backplane, ensuring pins engage smoothly without lateral pressure.
3. Secure the module using the built-in locking mechanism to maintain contact stability in high-vibration industrial environments.
4. Connect serial cables according to the project-specific wiring diagram; ensure the cable shielding is terminated to the cabinet ground to prevent interference.
5. Perform a diagnostic loop test from the engineering station after installation to confirm communication handshake and data throughput are within nominal parameters.
