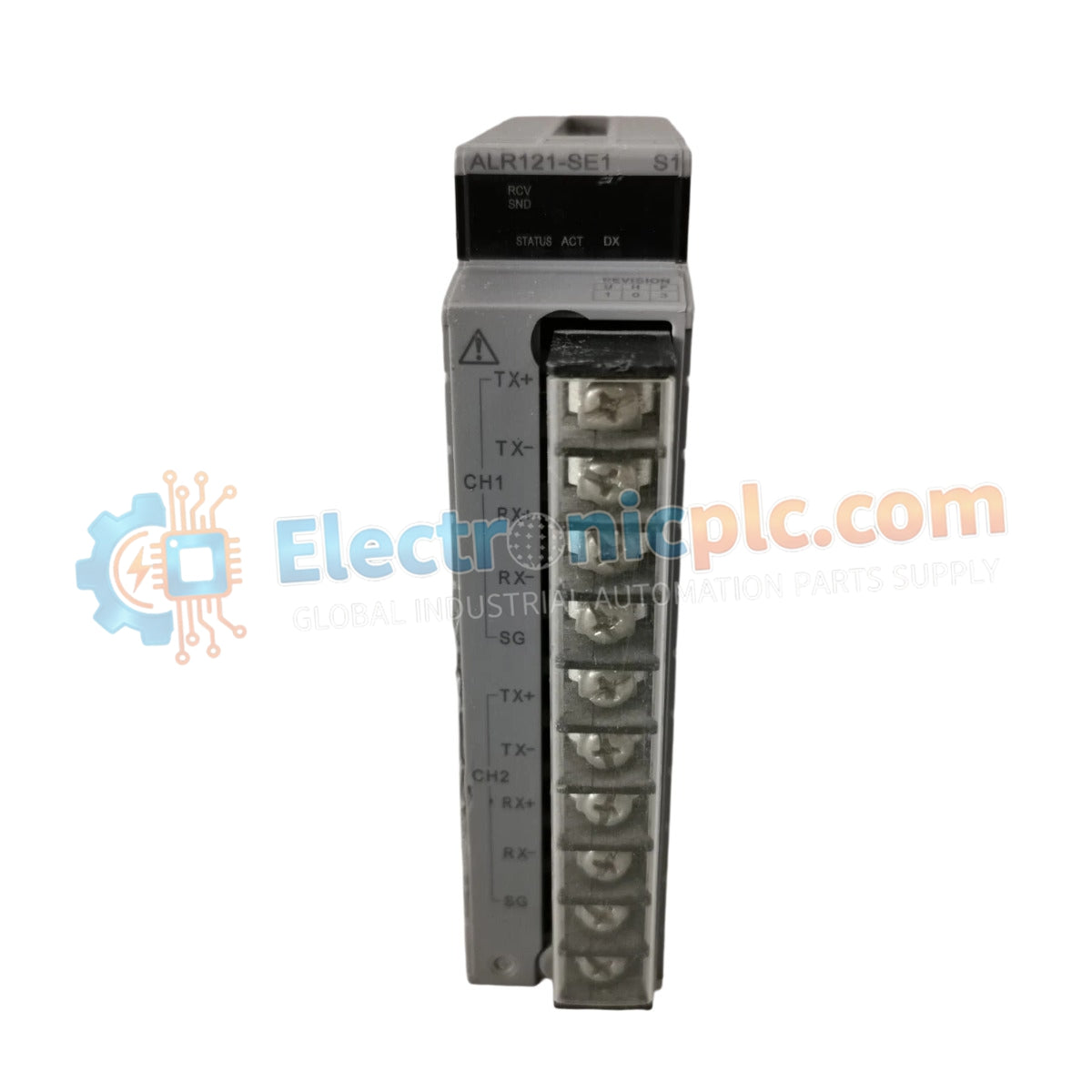

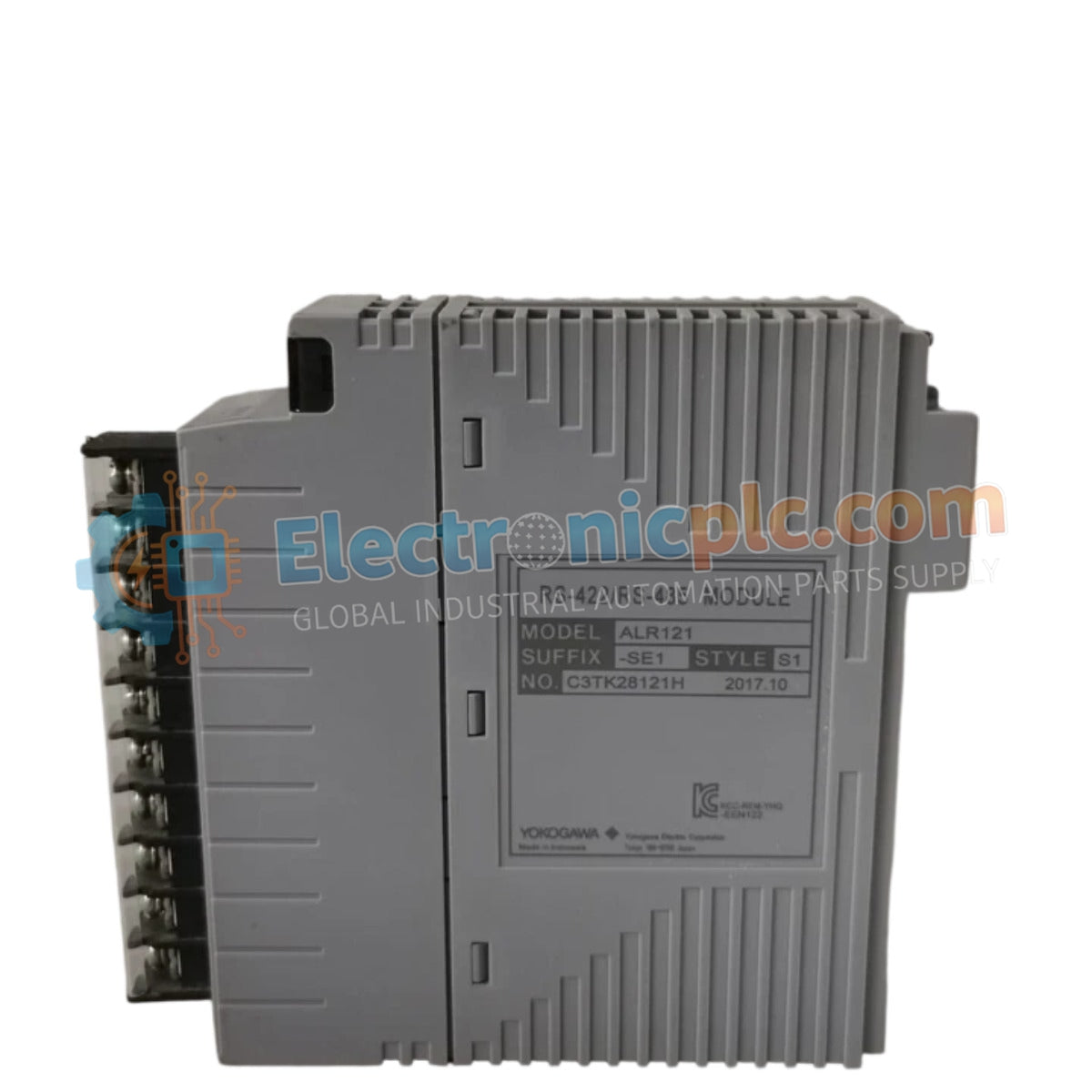

The Yokogawa ALR121-SE1 (ALR121 Serial Communication Module) serves as the primary ALR121 interface component utilized to execute high-speed serial data exchange between Field Control Stations (FCS) and subsystem platforms like the FA-M3.

Suffix Breakdown & Model Matrix

The ALR121-SE1 identifier specifies the hardware revision and interface environment:

• ALR121: Base Serial Communication Module model series.
• -S: Denotes the standard hardware release for CENTUM series integration.
• E1: Specifies the environmental and regional configuration, ensuring compatibility with Yokogawa FCS I/O backplanes.

Hardware Specifications

Serial Communication and Subsystem Integration

The ALR121-SE1 functions as a specialized gateway that translates serial protocols, allowing the FCS to integrate seamlessly with external subsystems such as FA-M3 controllers. The module manages data framing and synchronization at speeds up to 115.2 kbps, providing stable command and status exchange for distributed control applications. Its electrical design emphasizes high noise immunity, ensuring that data packets remain coherent in industrial environments subject to electromagnetic interference.

Frequently Asked Questions (FAQ)

Q: Is this module capable of performing RS-485 and RS-232 communication concurrently?

A: The ALR121-SE1 is designed for dedicated serial tasks. Ensure that the communication port configuration in the system engineering software matches the physical wiring of the subsystem; attempting to multiplex different physical standards (RS-232/RS-485) on a single port can lead to signal corruption.

Q: Can the ALR121-SE1 be integrated into any Yokogawa field control unit?

A: The module is compatible with specific Yokogawa FCS I/O backplanes. Verify the hardware compatibility list for the target FCS node to ensure the module revision supports the installed firmware version of the controller.

Field Installation Guidelines

• Insert the module into the backplane carefully to avoid bending the communication pins; ensure the mechanical locking latches are fully engaged to provide a vibration-resistant connection.
• Use shielded, low-capacitance serial cables for long-distance transmissions to ensure signal integrity at the 115.2 kbps data rate.
• Verify the termination resistance is correctly set if the module is acting as a node on an RS-485 multi-drop network to prevent signal reflections.
• Ground the cable shield at the control cabinet entry point to the system ground bus to prevent ground loops that could interfere with low-voltage serial signals.
