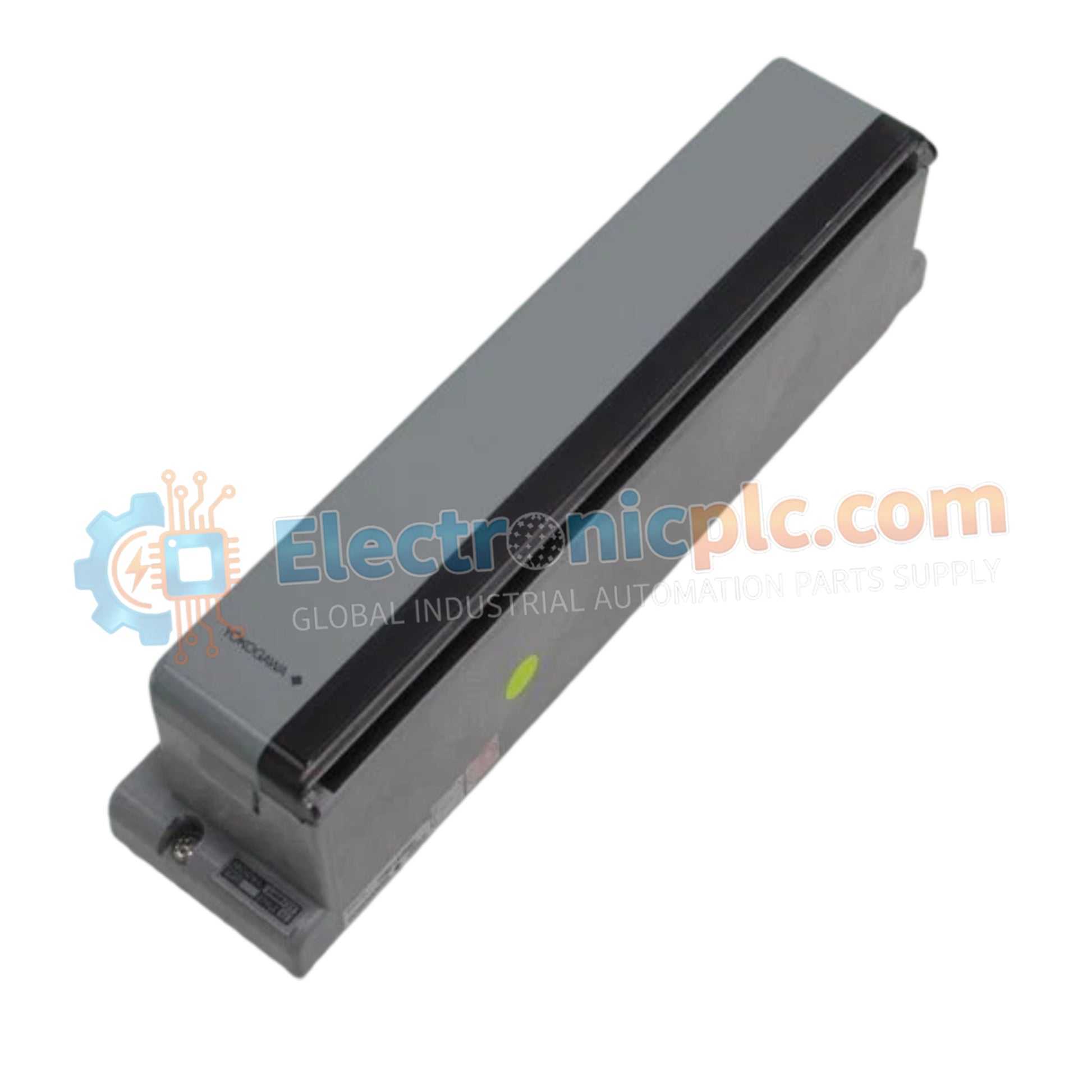

The Yokogawa AMM12T S2, also cataloged as the AMM12T Voltage Input Multiplexer Module, operates as a dedicated hardware component for high-speed signal aggregation and channel switching within DCS process control networks.

Suffix Breakdown & Model Matrix

• AMM12T: Base model series designation for analog voltage multiplexer modules.
• S2: Specific revision or hardware version identifier indicating compatibility with standard Yokogawa field terminal assembly requirements.

Hardware Specifications

Process Control and Loop Integrity

The AMM12T S2 integrates into process automation architectures by enabling centralized management of multiple analog voltage signals. The module maintains data accuracy through internal signal routing that supports 4-20 mA HART loop protocol translation when configured with downstream transmitter interfaces. To prevent signal degradation, the module utilizes channel-to-channel isolation architecture, effectively decoupling individual input paths from common-mode noise. Furthermore, the unit is engineered to support cold junction compensation (CJC) logic when paired with thermocouple-derived voltage inputs, ensuring that the processed variable remains stable within the DCS control environment.

Frequently Asked Questions

Q: Does the AMM12T S2 support hot-swapping during active operation?

A: No. The module must be de-energized via the system chassis power supply before removal or insertion to prevent damage to the backplane bus communication pins.

Q: Is this module compatible with existing analog input rack configurations?

A: The AMM12T S2 is designed for modular integration within standardized Yokogawa I/O racks. Compatibility is contingent upon the specific backplane version; confirm that the system firmware supports the module's communication velocity.

Field Installation Guidelines

• Mounting: Ensure the module is fully seated within the designated I/O rack slot. Utilize the integrated locking clips to maintain physical stability and prevent contact loosening due to cabinet vibrations.
• Wiring: Route input voltage signals through shielded cables to mitigate EMI. The shield should be grounded at the cabinet entry point using a low-impedance connection.
• Grounding: Ensure the module chassis is bonded to the common cabinet ground reference to stabilize the signal reference point and prevent ground loops across the multiplexer array.
• Environmental: Maintain ambient air temperature within the specified -20 deg C to 70 deg C range. In environments with high particulate counts, ensure cabinet filters are clean to prevent internal component overheating.
