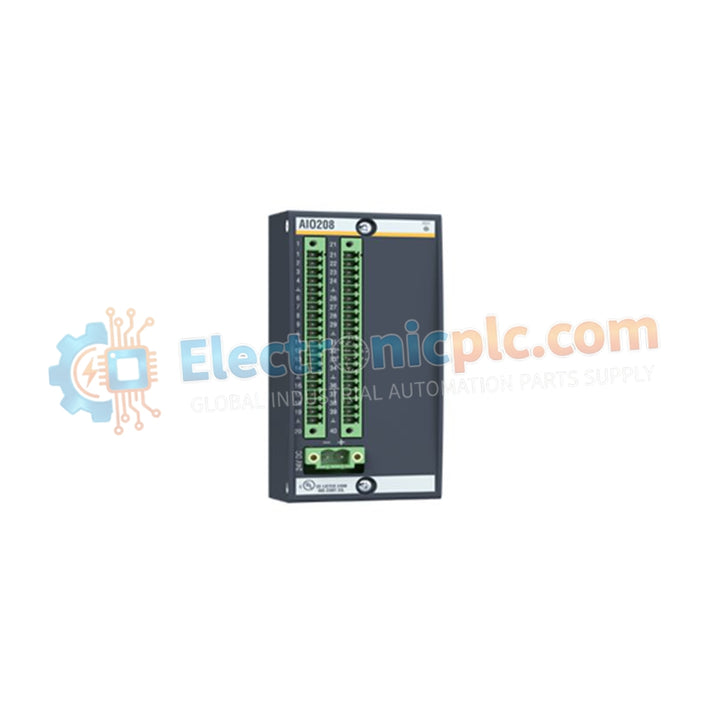

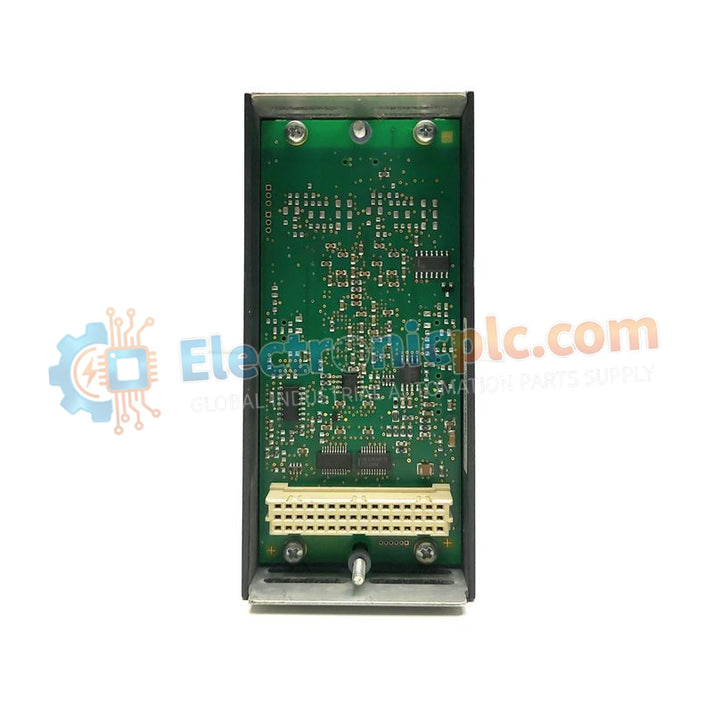

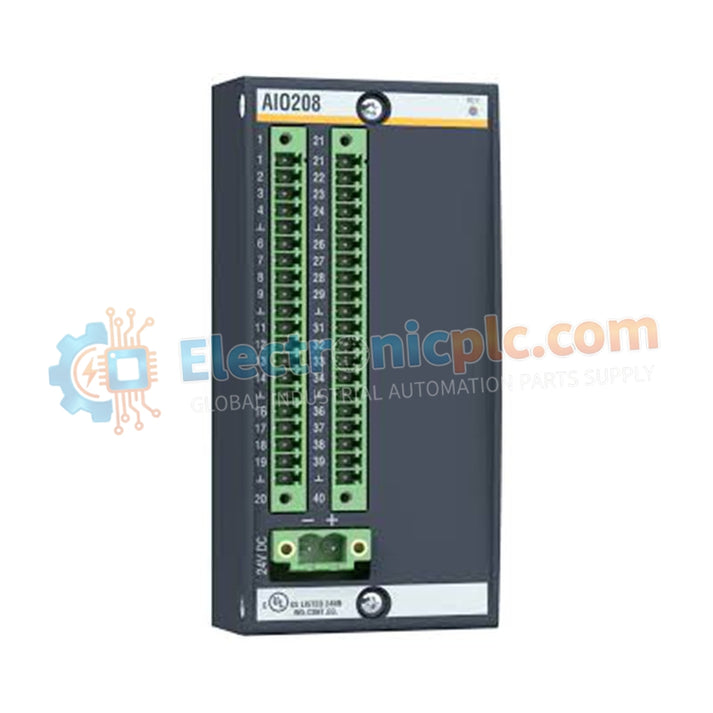

Analog I/O Module Bachmann AIO208

Analog I/O Module Bachmann AIO208

Product Description

The AIO208 is a multifunctional 8-channel analog module for the Bachmann M1 automation system, combining both input and output functionality in a single card. Optimized for high-speed data acquisition and closed-loop control, it is ideal...

29 people are viewing this right now

Availability: Low stock: 99 left

SKU: AIO208
Vendor: Bachmann
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The AIO208 is a multifunctional 8-channel analog module for the Bachmann M1 automation system, combining both input and output functionality in a single card. Optimized for high-speed data acquisition and closed-loop control, it is ideal for applications such as hydraulic valve positioning, motor speed control, and temperature regulation. The module features 16-bit input resolution, 12-bit output resolution, and 500 V galvanic isolation for precise, noise-immune signal handling in harsh industrial environments.

Technical Specifications

Specification Details
Model Identification AIO208
Total Channels 8 Configurable Analog Channels
Input Resolution 16-bit A/D
Output Resolution 12-bit D/A
Input Signal Range ±10 V, 0–10 V, 0–20 mA, 4–20 mA
Output Signal Range ±10 V, 0–10 V, 0–20 mA, 4–20 mA
Conversion Time <1 ms for all channels
Input Impedance >10 MΩ (Voltage), 100 Ω (Current)
Output Load >2 kΩ (Voltage), <500 Ω (Current)
Galvanic Isolation 500 V (Fieldbus to logic)
Operating Temperature -30°C to +60°C

Applications & Use Cases

  • Closed-loop control for hydraulic actuators, motors, and valves.

  • Industrial temperature, pressure, and flow control.

  • High-speed PID loops where low latency and deterministic response are critical.

Functional Hardware Comparison

  • Combines the functionality of AI208 (input only) and AO208 (output only), saving rack space.

  • Superior sampling rates compared to GIO212 for standard analog signals.

  • Optimized for high-dynamic motion and pressure control tasks, unlike general-purpose modules.

Frequently Asked Questions

Q: Can I mix voltage and current signals on the same AIO208?
A: Yes, each channel is independently configurable via Bachmann SolutionCenter.

Q: Does the AIO208 require an external power supply?
A: Internal logic is powered via the M1 backplane; analog outputs typically require a 24 VDC field supply.
