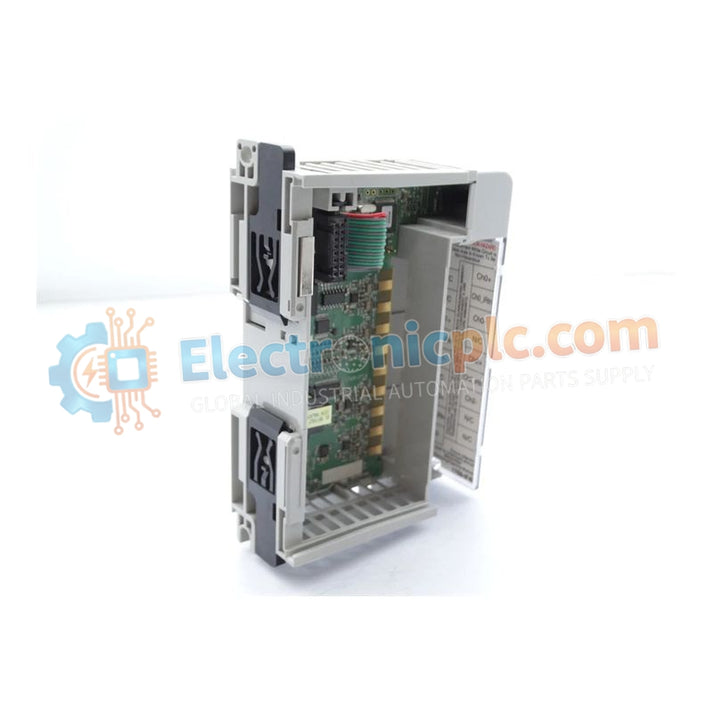

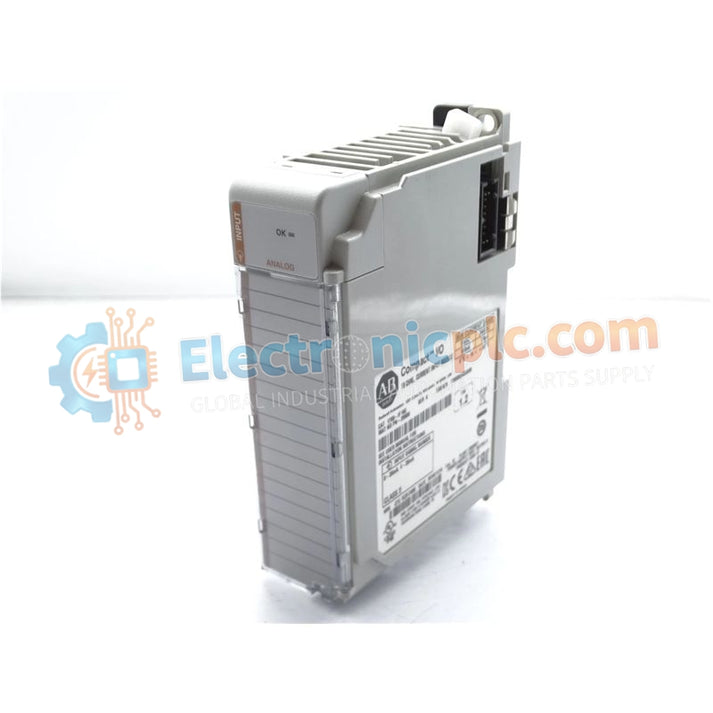

Analog Input Module 1769-IF16C Allen Bradley

Analog Input Module 1769-IF16C Allen Bradley

Product Description

The 1769-IF16C is a high-density analog input module for the Allen-Bradley Compact I/O platform. It provides 16 single-ended current input channels, enabling efficient collection of process signals from field instruments.

Designed for use...

21 people are viewing this right now

Availability: Low stock: 99 left

SKU: 1769-IF16C
Vendor: Allen Bradley
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 1769-IF16C is a high-density analog input module for the Allen-Bradley Compact I/O platform. It provides 16 single-ended current input channels, enabling efficient collection of process signals from field instruments.

Designed for use with CompactLogix and MicroLogix 1500 controllers, the module converts 0–20 mA or 4–20 mA signals into digital values for PLC or PAC processing. Its high channel density makes it ideal for sensor monitoring and data acquisition in large automation systems.

Technical Specifications

Parameter Specification
Model 1769-IF16C
Product Series Compact I/O
Input Channels 16 Single-ended
Input Signal Range 0–20 mA / 4–20 mA (configurable)
Compatible Controllers CompactLogix, MicroLogix 1500
Weight 0.23 kg

Applications

Process Instrument Monitoring
Collects signals from pressure, flow, and level transmitters.

Drive Feedback Systems
Monitors analog feedback signals from VFDs and drive systems.

Industrial Process Control
Interfaces with modulating valves, signal isolators, and panel instruments for precise process control.

FAQ

Can the 1769-IF16C accept voltage signals?
No. This module only supports current inputs (0–20 mA or 4–20 mA). For voltage inputs, use the 1769-IF16V module.

Is the module hot-swappable?
Yes. The Compact I/O system supports Removal and Insertion Under Power (RIUP), allowing module replacement without shutting down the entire system.
