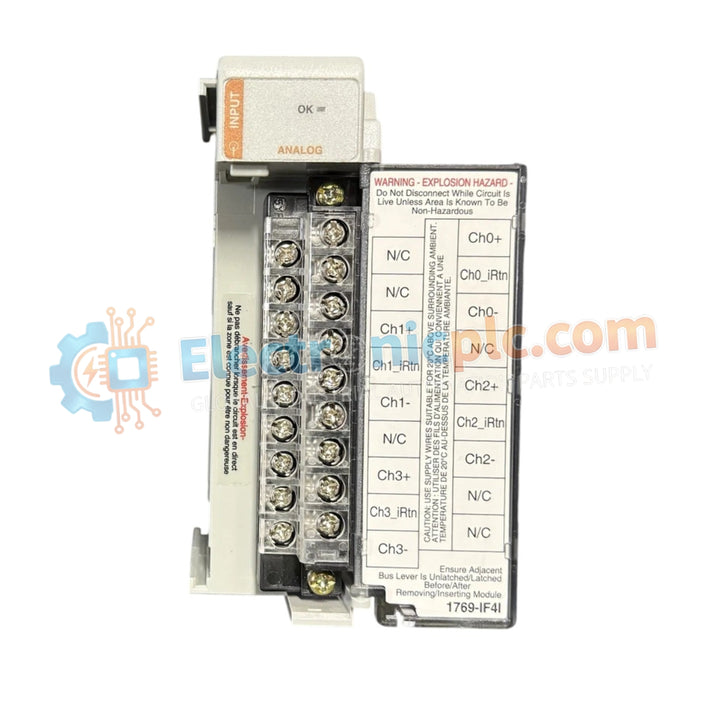

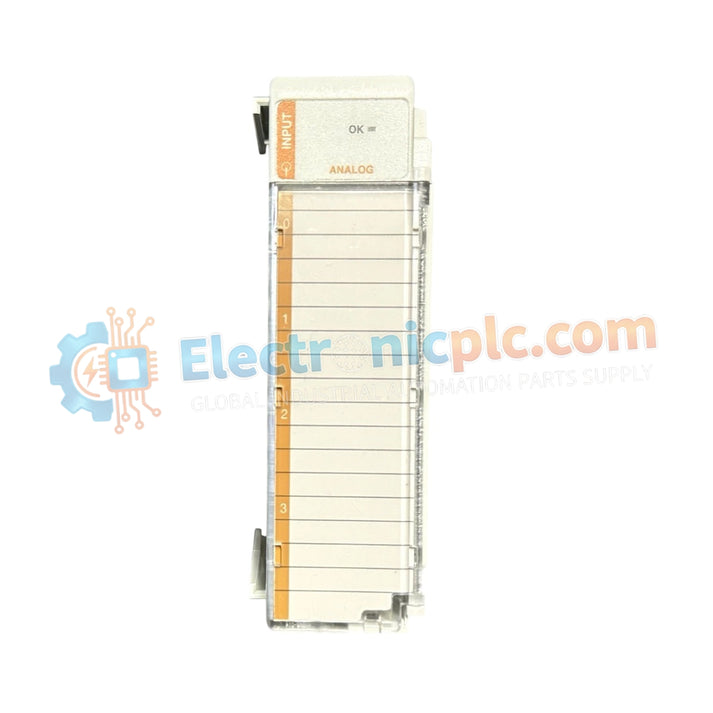

Analog Input Module Allen-Bradley 1769-IF4I CompactLogix Isolated

Analog Input Module Allen-Bradley 1769-IF4I CompactLogix Isolated

Product Overview

The 1769-IF4I is a CompactLogix isolated analog input module with four individually isolated channels for voltage and current signals. It delivers high-accuracy analog data conversion while protecting the...

16 people are viewing this right now

Availability: Low stock: 99 left

SKU: 1769-IF4I
Vendor: Allen Bradley
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The 1769-IF4I is a CompactLogix isolated analog input module with four individually isolated channels for voltage and current signals. It delivers high-accuracy analog data conversion while protecting the control system from electrical noise and ground loop interference in industrial environments.

Technical Specifications

Parameter Specification
Part Number 1769-IF4I
Number of Inputs 4 Isolated Channels
Voltage Inputs ±10V, 0-10V, 0-5V, 1-5V
Current Inputs 0-20 mA, 4-20 mA
Resolution 16-bit
Isolation Voltage 30V AC / 30V DC
Backplane Current Draw 145 mA at 5.1V / 125 mA at 24V
Conversion Type Delta-Sigma
Mounting DIN Rail or Panel Mount
Weight 0.20 kg

Engineering Advantages

  • Individually isolated input channels

  • High-precision 16-bit analog conversion

  • Supports mixed voltage and current signals

  • Strong protection against electrical noise

  • Easy software configuration and calibration

FAQs

Does the 1769-IF4I support thermocouples or RTDs?
No. It supports standard voltage and current analog signals only.

What is the advantage of isolated channels?
Isolation prevents signal interference and ground loop issues between devices.

Can channels use different signal types?
Yes. Each channel can be configured independently.

Is this product 100% Brand New?
Yes. This 1769-IF4I module is supplied in 100% Brand New condition with a 2-year warranty.
