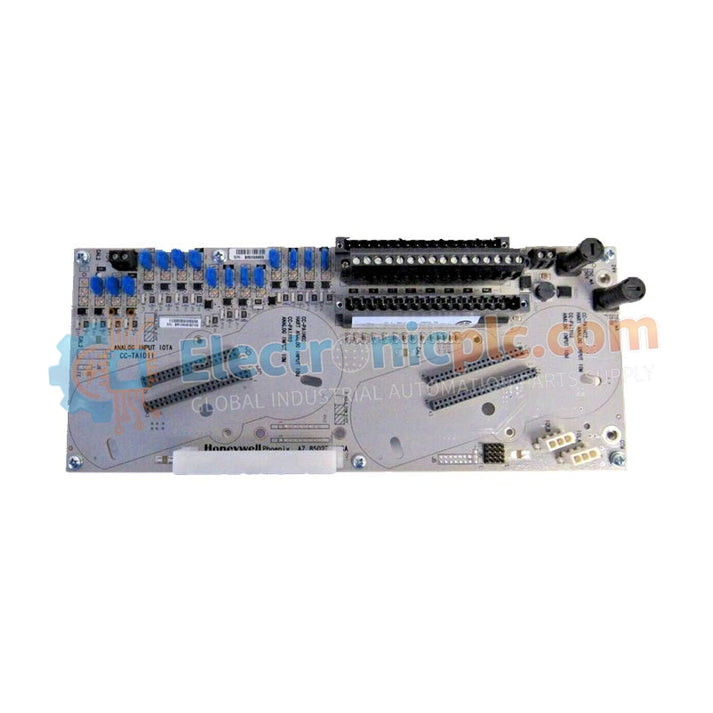

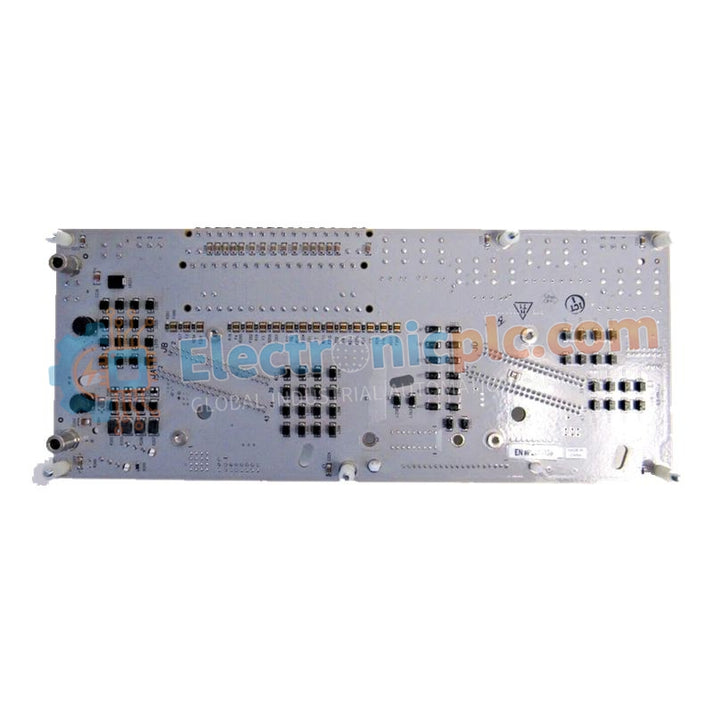

The Honeywell CC-TAID11 is a high-precision, 16-channel differential analog input module designed for the Experion PKS Series C control platform. This module interfaces with complex field instruments, converting ±10 V or 4-20 mA analog signals into 16-bit digital data for...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell CC-TAID11 is a high-precision, 16-channel differential analog input module designed for the Experion PKS Series C control platform. This module interfaces with complex field instruments, converting ±10 V or 4-20 mA analog signals into 16-bit digital data for the C300 controller. By employing differential inputs, it effectively cancels common-mode noise, ensuring superior signal integrity essential for precise measurement in sensitive refining and chemical processes. We supply this unit as 100% Brand New and Original to ensure laboratory-grade accuracy in your industrial environment.
| Specification | Details |
|---|---|
| Model Number | CC-TAID11 |
| Voltage Range | -10 V to 10 V |
| Current Range | 4 to 20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.05% of full scale |
| Update Rate | 250 ms per channel |
| Input Impedance | >1 MΩ |
| Isolation | 1500 VDC (channel-to-channel) |
| Power Consumption | 2.5 W (Typical) |
| Operating Temperature | -40°C to 70°C |
| Dimensions | 118 mm x 32 mm x 105 mm |
| Weight | 0.3 kg |
Common-Mode Noise Rejection: The differential input design eliminates electrical interference affecting both signal leads, ensuring precise data collection even in high electromagnetic environments.
Exceptional Measurement Accuracy: At ±0.05% of full scale, this module provides the granular data needed for high-value custody transfer and stoichiometric ratio control.
High-Density Signal Processing: The compact 118 mm x 32 mm footprint allows for 16 differential channels in a single slot, minimizing rack space usage for large-scale I/O deployments.
Industrial-Grade Isolation: The 1500 VDC channel-to-channel isolation prevents ground loops and protects the controller backplane from voltage surges, enhancing overall system reliability.
Extreme Climate Resilience: Reliable operation in extreme temperatures from -40°C to 70°C, making it ideal for installation in remote enclosures without needing climate control.
No, the module supports 4-20 mA inputs natively. Ensure that the Experion PKS software is configured correctly and that the IOTA includes the necessary shunt resistors if required for your specific wiring setup.
Yes, individual channels can be configured for either ±10 V or 4-20 mA inputs using the system configuration tools, as long as the IOTA supports the selected signal type.
The 16-bit resolution provides 65,536 distinct signal levels, enabling the DCS to detect even the smallest fluctuations in process variables. This enhances control accuracy for tight PID loops.
Yes, the Series C architecture supports hot-swapping the CC-TAID11 module. When replaced, the C300 controller re-initializes the module automatically, ensuring no process downtime during maintenance.
