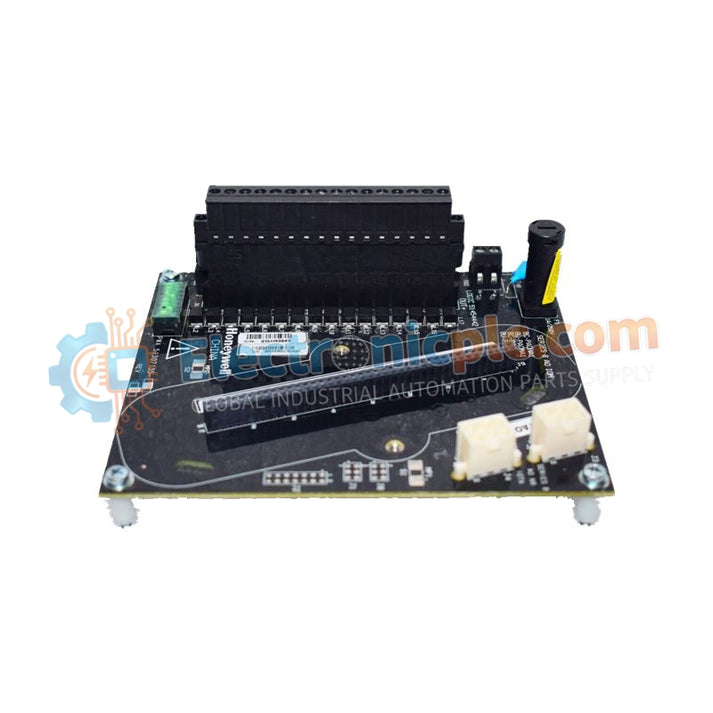

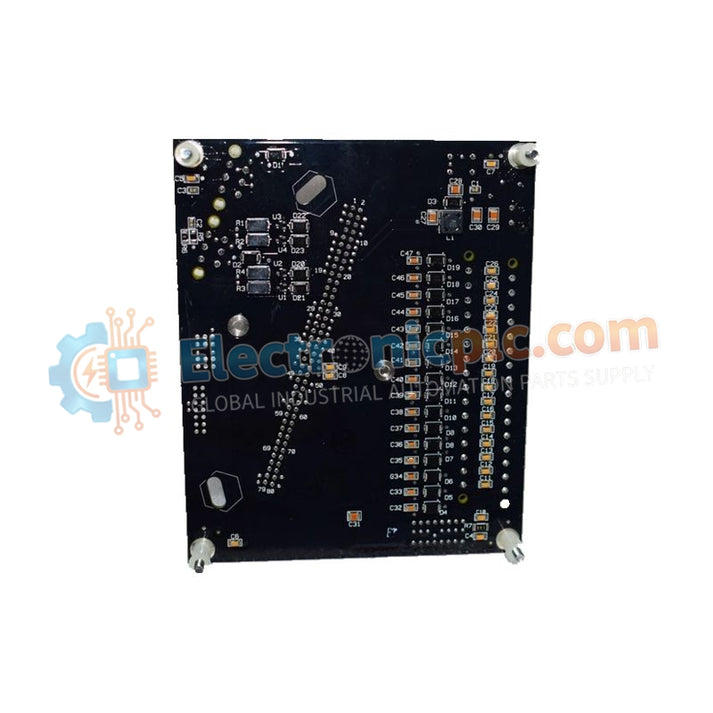

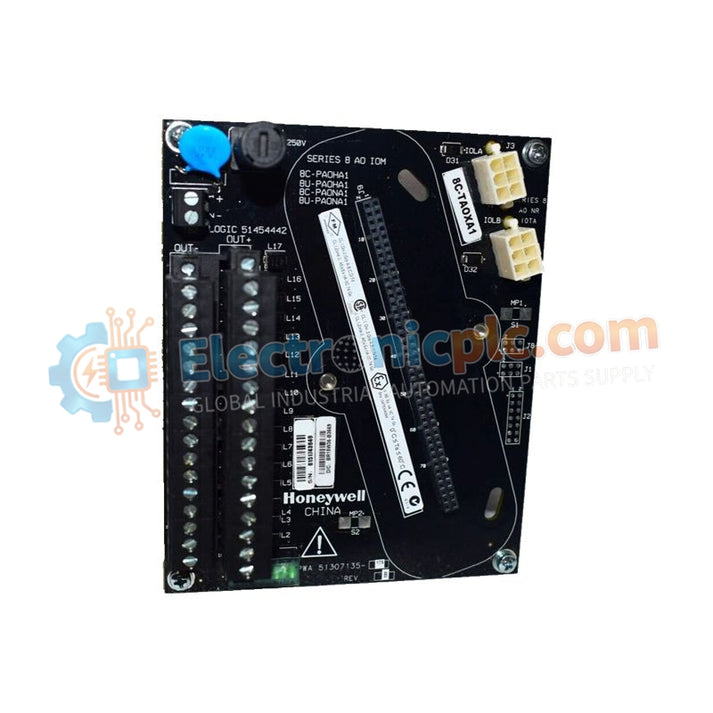

Analog Output Module Honeywell 8C-TAOXA1 51307135-175

Analog Output Module Honeywell 8C-TAOXA1 51307135-175

Product Description

The 8C-TAOXA1 (Part Number 51307135-175) is a high-performance Analog Output (AO) module designed for the Honeywell Experion PKS Series 8 I/O architecture. It provides 16 channels of isolated...

18 people are viewing this right now

Availability: Low stock: 50 left

SKU: 8C-TAOXA1 51307135-175
Vendor: Honeywell
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 8C-TAOXA1 (Part Number 51307135-175) is a high-performance Analog Output (AO) module designed for the Honeywell Experion PKS Series 8 I/O architecture. It provides 16 channels of isolated 4–20 mA current outputs, enabling precise control of field devices such as control valves, actuators, and variable speed drives.

The module utilizes advanced digital-to-analog conversion technology to deliver high-accuracy output with minimal thermal drift. Its Series 8 vertical form factor enhances cabinet space utilization and improves thermal dissipation. Equipped with comprehensive onboard diagnostics—including open-loop detection and output read-back verification—the 8C-TAOXA1 ensures that commanded signals accurately match field outputs, supporting high-integrity control loops in critical process environments.

Technical Specifications

Parameter Specification
Model Designation 8C-TAOXA1
Ordering Number 51307135-175
Module Type Analog Output (AO)
Output Signal Range 4–20 mA (Standard)
Channel Density 16 Channels
Resolution 12-bit to 16-bit (Precision dependent)
Loop Compliance 24V DC (Nominal)
Module Width 5.1 cm
Module Height 26.7 cm
Module Depth 17.8 cm
Net Weight 0.5 kg

Application Scenarios

The 8C-TAOXA1 module is widely used in continuous process control applications where precise analog signal output is required, including:

  • Modulating control valves for steam, gas, or liquid flow

  • Controlling Variable Frequency Drives (VFDs)

  • Providing analog setpoints to downstream controllers

It is commonly deployed in Distributed Control Systems (DCS) across industries such as:

  • Oil & gas

  • Chemical processing

  • Power generation

Frequently Asked Questions

Q: Does this module require a specific termination assembly (IOTA)?
A: Yes, the 8C-TAOXA1 (51307135-175) must be installed on a compatible Series 8 Analog Output IOTA to ensure correct electrical termination, grounding, and proper operation of the 4–20 mA field loops.
