The Honeywell MU/MC-TAOX12 (Part Number: 51304335-125) functions as a high-precision interface that converts digital controller commands into physical analog signals. It is used to drive critical field equipment...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

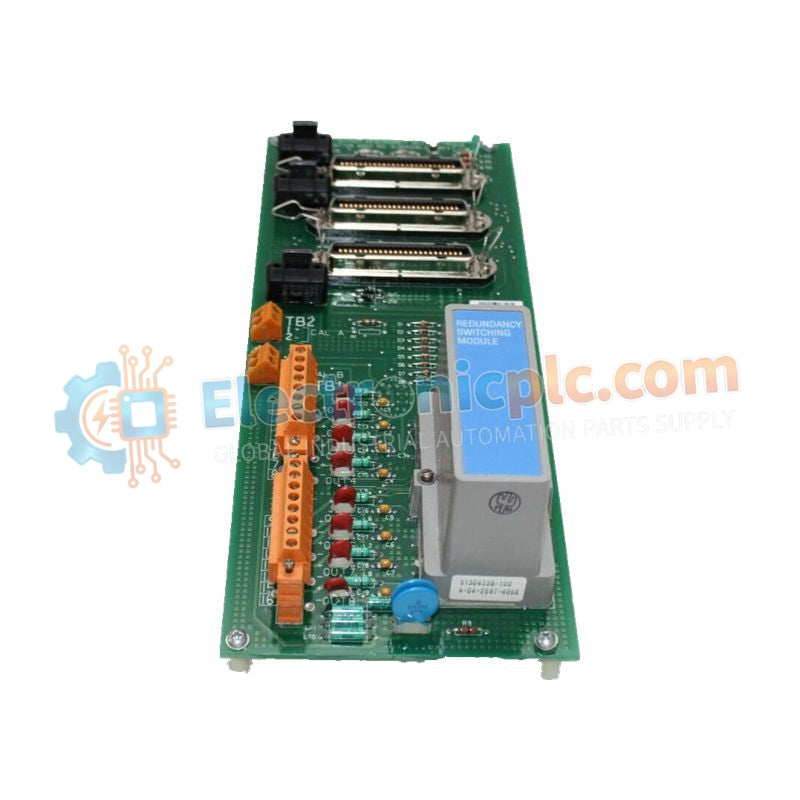

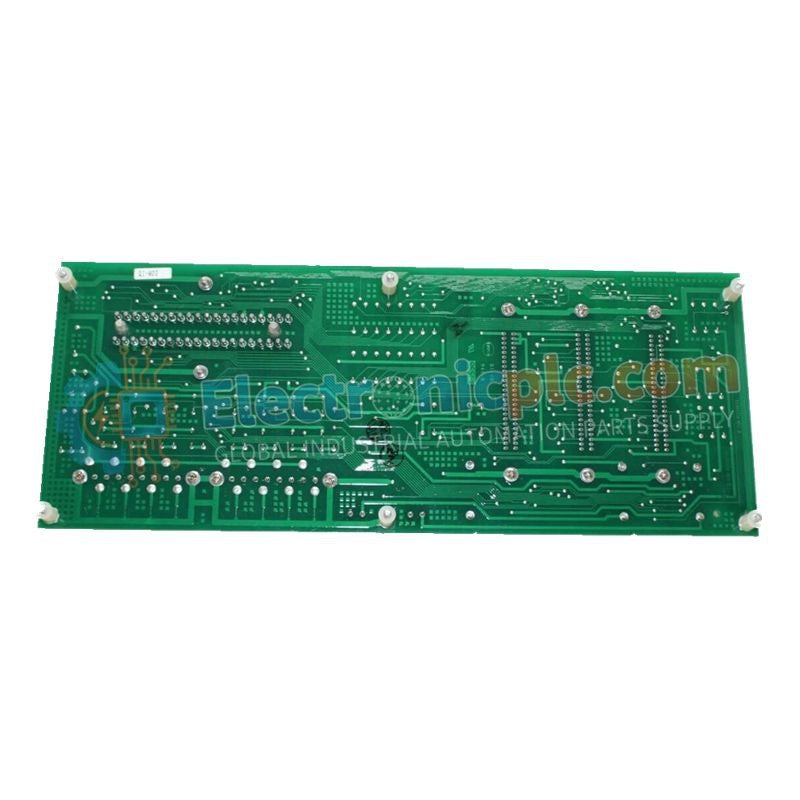

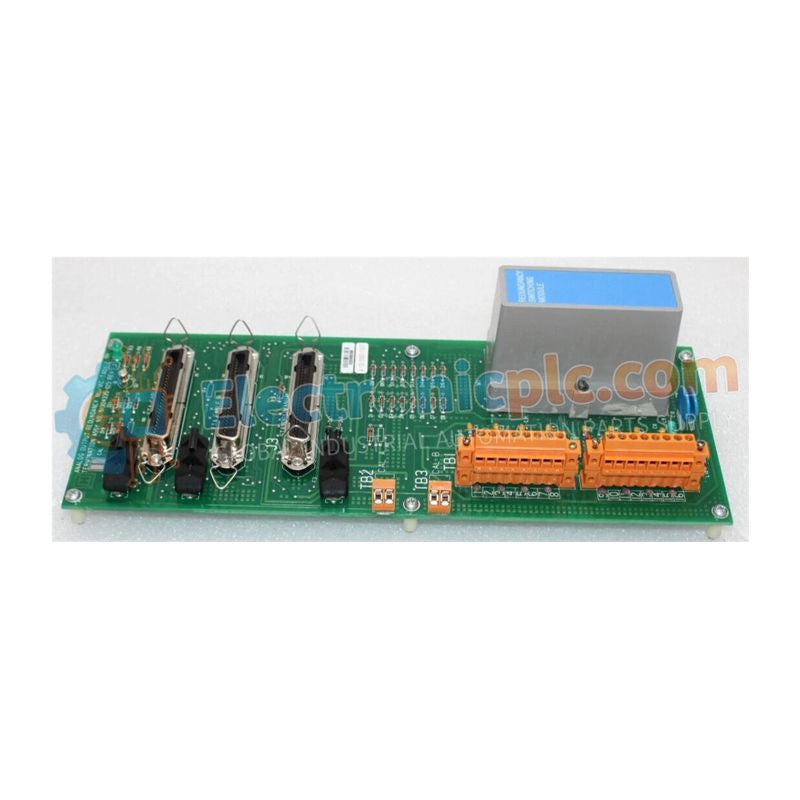

The Honeywell MU/MC-TAOX12 (Part Number: 51304335-125) functions as a high-precision interface that converts digital controller commands into physical analog signals. It is used to drive critical field equipment such as control valves, variable speed pumps, and industrial actuators.
We supply this unit as 100% brand new and original equipment, ensuring tight control accuracy and reliable operation in chemical, oil & gas, and power generation applications.
| Parameter | Specification |
|---|---|
| Model Number | MU/MC-TAOX12 |
| Part Number | 51304335-125 |
| Channel Density | 8 Redundant Output Channels |
| Output Ranges | 4–20 mA (Current) / 0–10 V (Voltage) |
| Accuracy | ±0.1% of Full Scale |
| Resolution | 12-bit |
| Update Rate | 250 ms |
| Operating Temperature | -40°C to 85°C |
| Power Input | 24 VDC |
| Dimensions | 305 mm × 89 mm × 30 mm |
| Weight | 0.7 kg |
Redundant Reliability
The 8-channel redundant architecture helps ensure continuous signal delivery even if a portion of the module experiences a fault, reducing the risk of process interruption.
High-Precision Actuation
With ±0.1% accuracy and 12-bit resolution, the module enables fine control of analog devices such as modulating valves in sensitive process loops.
Extreme Environmental Rating
Operates reliably across a wide temperature range (-40°C to 85°C), making it suitable for harsh, non-climate-controlled environments.
Fast Loop Response
A 250 ms update rate ensures timely response to control commands, maintaining alignment between setpoints and physical process conditions.
Versatile Output Configuration
Supports both current and voltage outputs, reducing the need for multiple hardware variants and simplifying spare parts management.
Is this module a direct replacement for older 51304335 series boards?
Yes, the 51304335-125 is backward compatible with Honeywell TDC 3000 and Experion systems within the same hardware ecosystem.
Does the unit ship in factory-original packaging?
Yes, it is supplied as 100% brand new, with original Honeywell anti-static packaging and factory labeling intact.
Can I use this module for 0–20 mA signals?
It is optimized for 4–20 mA and 0–10 V outputs, but ranges can typically be configured within the Honeywell engineering environment depending on application requirements.
Does this module require a separate Field Termination Assembly (FTA)?
Yes, it connects to a compatible analog output FTA for proper field wiring. Compatibility should be verified before installation.
