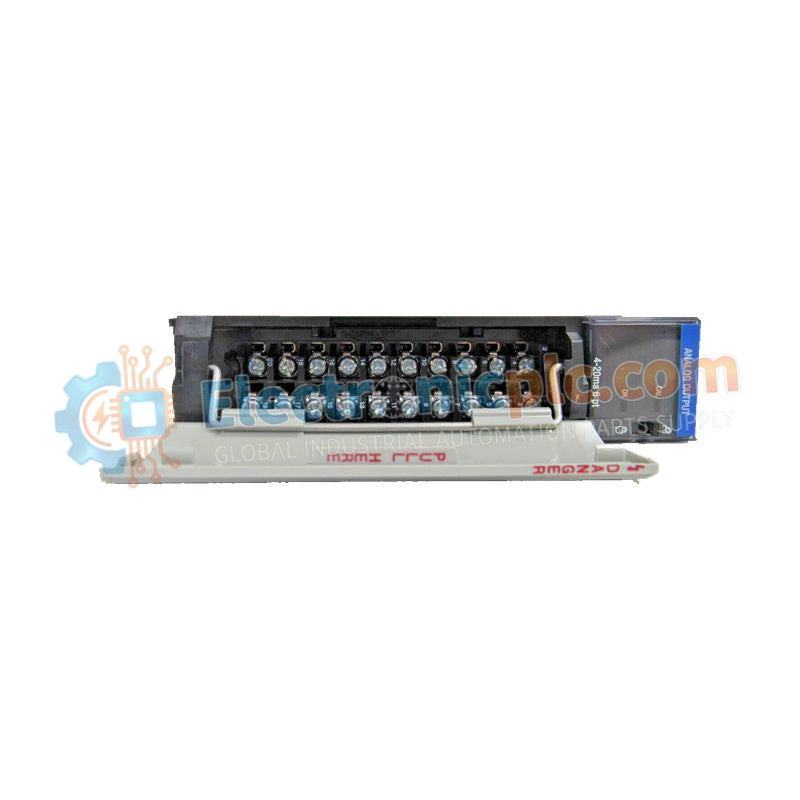

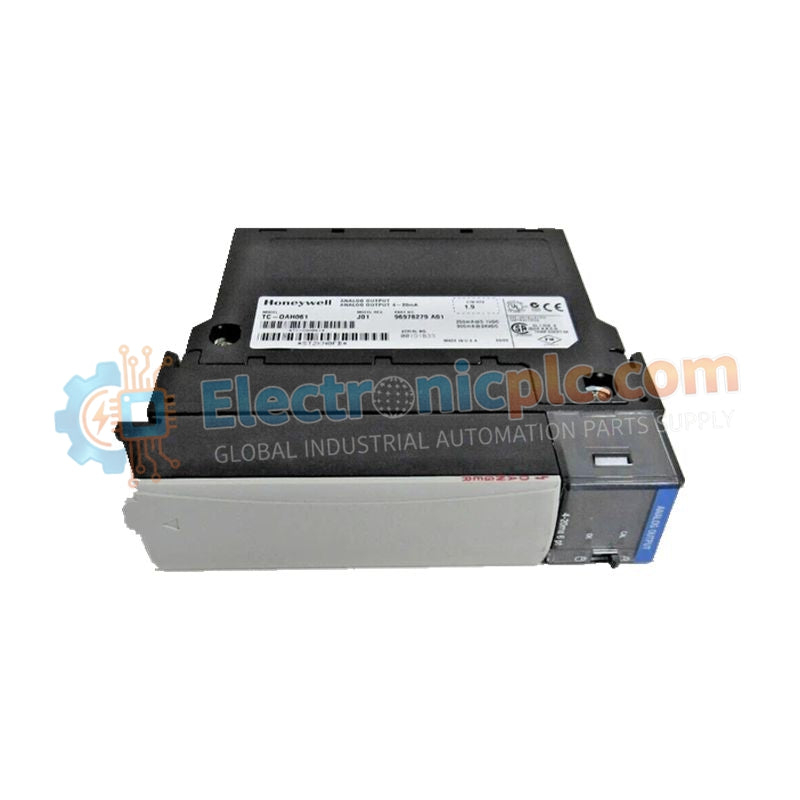

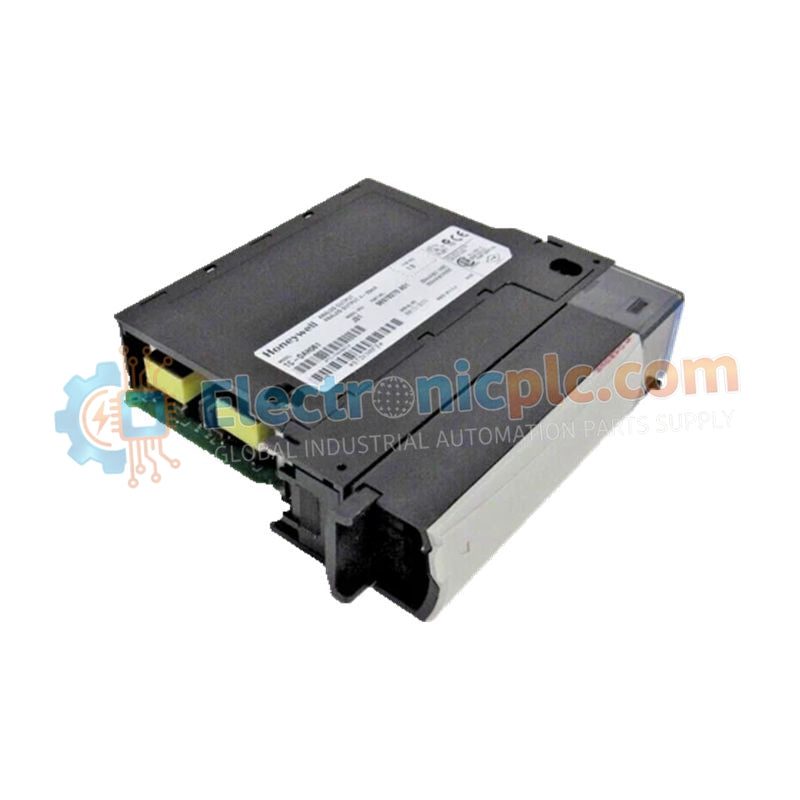

Analog Output Module Honeywell TC-OAH061

Analog Output Module Honeywell TC-OAH061

Product Overview

The Honeywell TC-OAH061 is a high-precision analog output module within the Experion Series-A I/O family. It converts digital control signals into accurate 0–21.0 mA outputs across six independent...

28 people are viewing this right now

Availability: Low stock: 50 left

SKU: TC-OAHO61
Vendor: Honeywell
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell TC-OAH061 is a high-precision analog output module within the Experion Series-A I/O family. It converts digital control signals into accurate 0–21.0 mA outputs across six independent channels, enabling precise control of field devices such as valves, actuators, and variable speed drives. Designed for demanding industrial environments, it ensures stable and synchronized signal delivery for critical process control.

Technical Specifications

Parameter Details
Model Number TC-OAH061
Condition 100% Brand New Original
Output Current Range 0–21.0 mA
Resolution 13-bit (over 21 mA range)
Update Rate 25 ms (all channels synchronized)
Isolation Voltage 2546 VDC (channel-to-channel & system)
Overvoltage Protection 24 VAC/VDC continuous
RFI Immunity < 2.0% error @ 10 V/m (27–1000 MHz)
Power Dissipation 6.7 W (max)
Dimensions 96 × 96 × 48 mm
Weight 0.5 kg

Engineering Advantages

  • High Isolation Protection
    2546 VDC galvanic isolation prevents fault propagation and protects the control system.

  • Fast Update Performance
    25 ms synchronized updates support fast-response control loops.

  • Precision Output Control
    13-bit resolution enables fine adjustments for stable and efficient process control.

  • Strong EMI/RFI Immunity
    Maintains signal accuracy in electrically noisy environments.

  • Wide Operating Range
    Reliable performance in temperatures from -10°C to +60°C.

FAQs

Is this TC-OAH061 a brand new original module?
Yes, it is supplied as 100% brand new, factory-sealed Honeywell hardware with verified part number.

Which terminal block is required?
It uses the TC-TBNH 20-position terminal block for field wiring.

Can it withstand overvoltage conditions?
Yes, it supports continuous overvoltage protection up to 24 VAC/VDC.

What is the benefit of high isolation voltage?
It protects the DCS and other channels from electrical surges and ground loops, improving overall system reliability.
