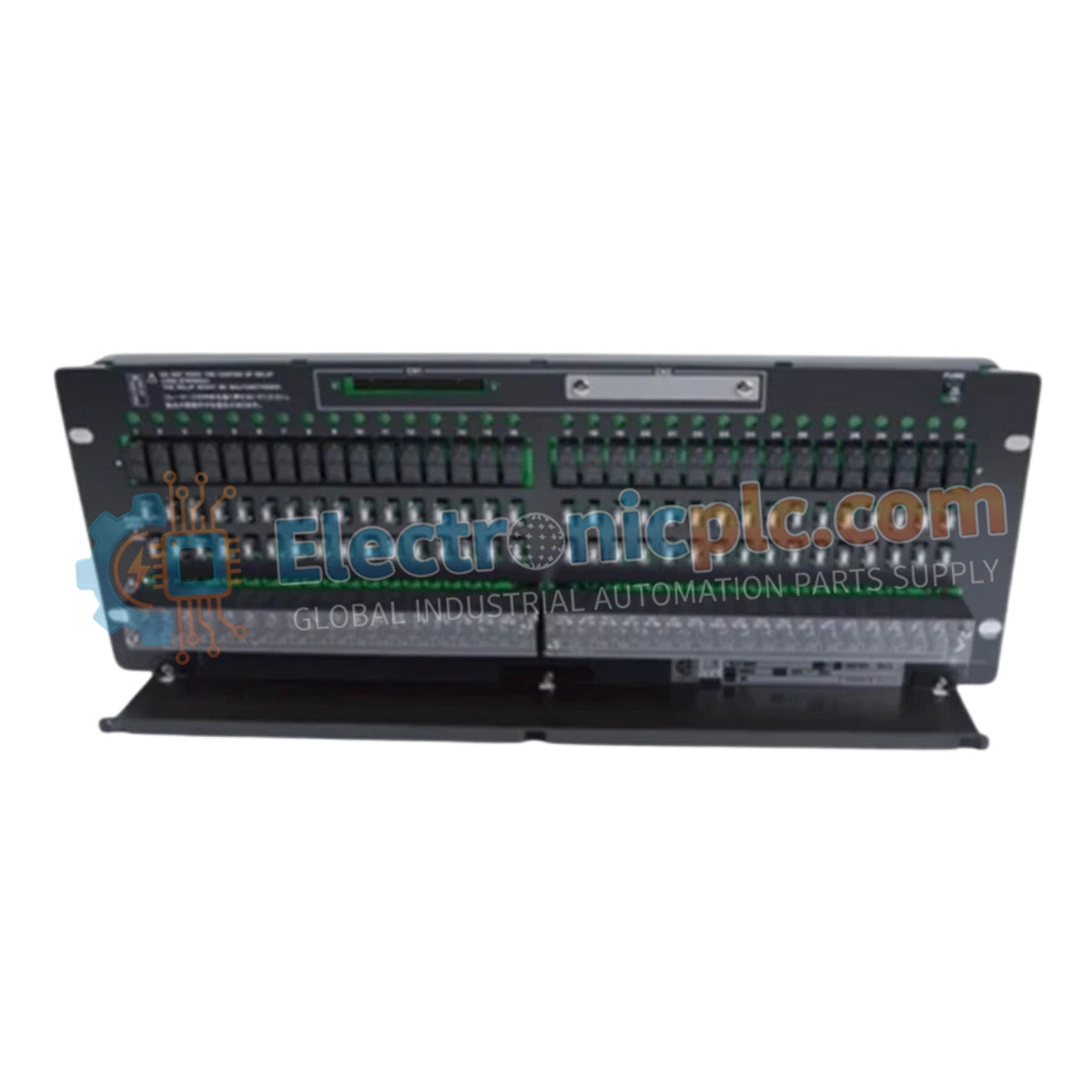

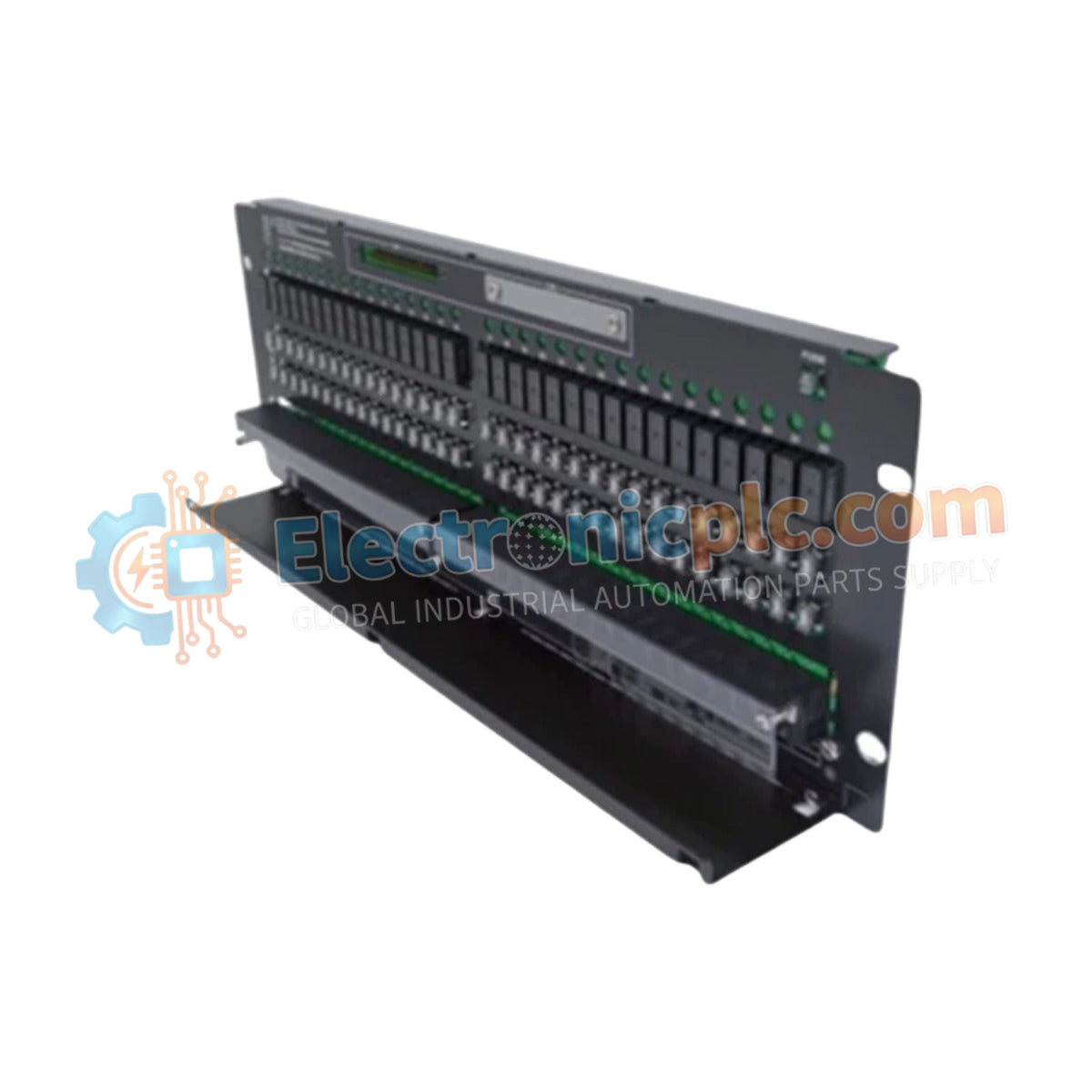

Configured for high-density signal switching in distributed control systems, the Yokogawa ARM55C-000 (ARM55C-000) Mechanical Relay Output Board provides direct physical electrical execution for process control commands.

Hardware Specifications

Process Control and Channel Isolation

The ARM55C-000 utilizes 32 independent mechanical relays to interface between low-voltage control logic and field-level actuators. To ensure signal integrity and protect the control cabinet from field-side electrical faults, the unit provides channel-to-channel isolation and robust dielectric strength (2 kV between field terminals and case). Each channel is user-configurable for Normally Open (NO) or Normally Closed (NC) operation, accommodating diverse logic requirements within the CENTUM VP environment. The board maintains precise signal timing and minimizes contact bounce through high-quality mechanical relay selection.

Frequently Asked Questions

Q: Can these relays handle inductive loads directly without external suppression?

A: It is standard engineering practice to use external flyback diodes for DC inductive loads or RC snubbers for AC loads to prevent back-EMF from damaging the relay contacts over time.

Q: Is the 250 VAC @ 2 A rating absolute for all load types?

A: The 2 A rating is for resistive loads; reactive or highly inductive loads will significantly derate the contact life and maximum current capability, necessitating professional load calculation.

Field Installation Guidelines

• Secure the board within the 19-inch rack using M3.5 screws, ensuring the chassis is bonded to the cabinet protective earth (PE) bus to maintain the specified dielectric integrity.
• Verify that the control signal (5 VDC) wiring is separated from high-current output wiring to avoid induced noise or transient coupling.
• Ensure all field wiring is terminated according to the torque specifications for M3.5 terminals to prevent overheating or loose connections under thermal expansion.
• Periodically verify that the insulation resistance between terminals and the chassis remains above 10 M ohm at 500 VDC to confirm no degradation in board isolation properties.
