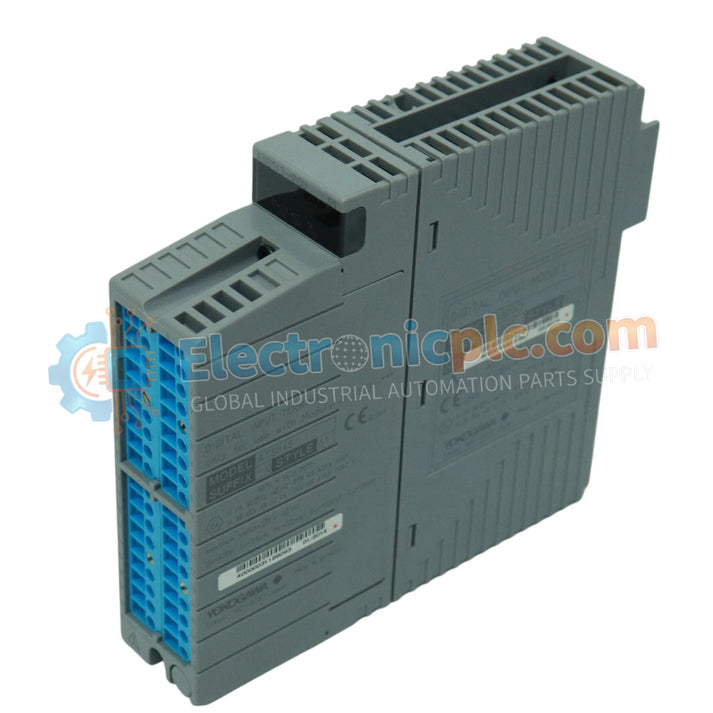

The Yokogawa ASD143-P00/SB4S0 serves as the primary ASD143-P00/SB4S0 Digital Input Module utilized to execute 16-channel NAMUR sensor signal acquisition across distributed control system platforms.
| Parameter | Specification |
|---|---|
| Model | ASD143-P00/SB4S0 |
| Brand | Yokogawa |
| Origin | Standard Industrial Specification |
| Weight | 0.30 kg |
| Dimensions | Standard Rack Module |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | 5 VDC 150 mA, 24 VDC 110 mA |
| Number of Input Channels | 16, isolated |
| Input Signal | NAMUR (IEC 60947-5-6) compatible |
| Withstanding Voltage | 1500 VAC |
The hardware configuration maintains strict electrical isolation across input loops with built-in barrier interfaces to eliminate ground loop interference and suppress transient voltage spikes from field devices. Integration with NAMUR sensor signal standards ensures precise status input response timing, reliable pushbutton detection, and transparent digital communication execution without interrupting real-time process monitoring.
Q: What are the restrictions regarding hot-swapping the ASD143-P00/SB4S0 module?
A: Hot-swapping is restricted unless explicit node redundancy configuration or controller-level maintenance mode activation is engaged to prevent backplane communication errors.
Q: How are external field signals connected to the module?
A: Field signals are terminated via pressure clamp terminals utilizing an ATSB4 interface arrangement.
Mount the unit directly into the designated slot of the node base, ensuring physical alignment with backplane connectors before engaging securing screws. Route input signal wiring away from high-voltage power conduits and use shielded twisted-pair cables to preserve signal integrity. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
