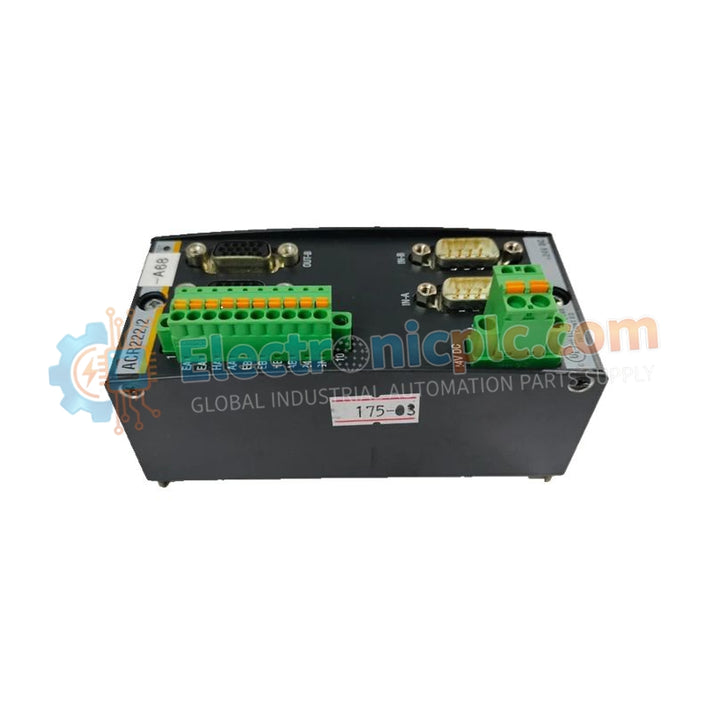

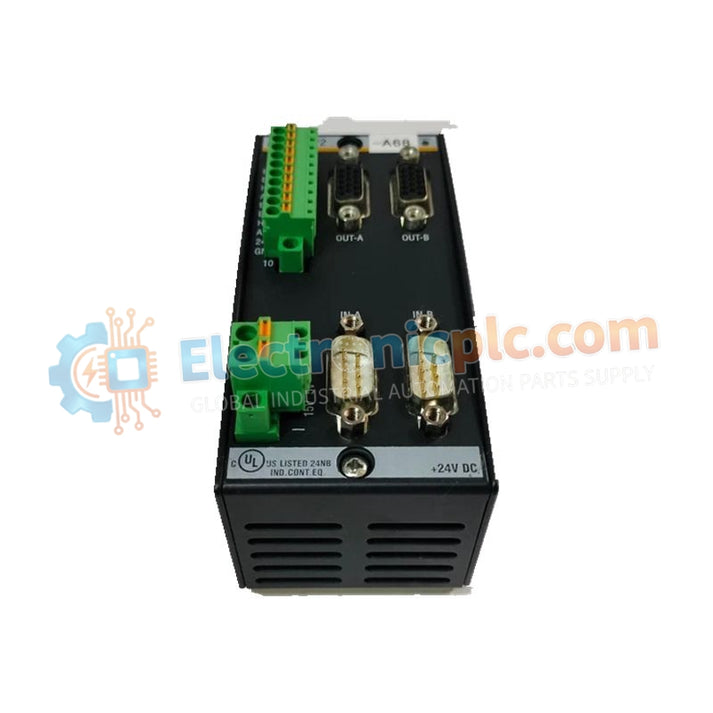

Bachmann ACR222/2 2-Axis Motor Controller Module

Bachmann ACR222/2 2-Axis Motor Controller Module

Product Description

The Bachmann ACR222/2 is a specialized controller module engineered for precise management of stepper motor output stages within the Bachmann M1 Automation System. Designed for high-speed motion control in industrial applications,...

28 people are viewing this right now

Availability: Low stock: 99 left

SKU: ACR222/2
Vendor: Bachmann
Category: 2-Axis Motor Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The Bachmann ACR222/2 is a specialized controller module engineered for precise management of stepper motor output stages within the Bachmann M1 Automation System. Designed for high-speed motion control in industrial applications, the module provides flexible configuration for various motor drive profiles, ensuring stable and reliable operation in demanding mechanical environments.

Its compact form factor enables efficient use of DIN rail or panel space while maintaining high-performance signal processing for accurate positioning and synchronized motor control.

Technical Specifications

Parameter Specification
Model Identifier ACR222/2
Control Axis 2-Axis stepper motor control
Operating Temperature 0°C to +60°C
Pollution Rating Degree 2 (per IEC 60664-1)
Physical Dimensions 6.3 cm × 11.9 cm × 6.3 cm
Net Weight 0.3 kg

Operational Capabilities

The Bachmann ACR222/2 delivers precise motion control by synchronizing stepper motor drivers with the host controller. Its architecture supports high-speed switching and real-time response, ensuring accurate execution of motion profiles under varying load conditions. Flexible configuration options allow engineers to adapt the module to different stepper motor types and operational requirements while maintaining precision throughout its lifecycle.

The module’s compact design and robust industrial build make it suitable for integration into control cabinets, optimizing space utilization while supporting reliable long-term operation.

Frequently Asked Questions

Does the ACR222/2 support different types of stepper motor drives?
Yes. The ACR222/2 provides standard pulse and direction outputs compatible with most stepper motor drive stages, offering flexibility across a range of motion control applications.

Is this module suitable for outdoor environments?
No. The module is designed for installation within industrial enclosures rated for Pollution Degree 2. It is not intended for direct exposure to outdoor elements or harsh weather conditions.
