The Bachmann CM202 is a high-performance communication interface engineered for the Bachmann M1 Automation System. Acting as a CANopen master controller, the module enables deterministic management of decentralized I/O devices, sensors,...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

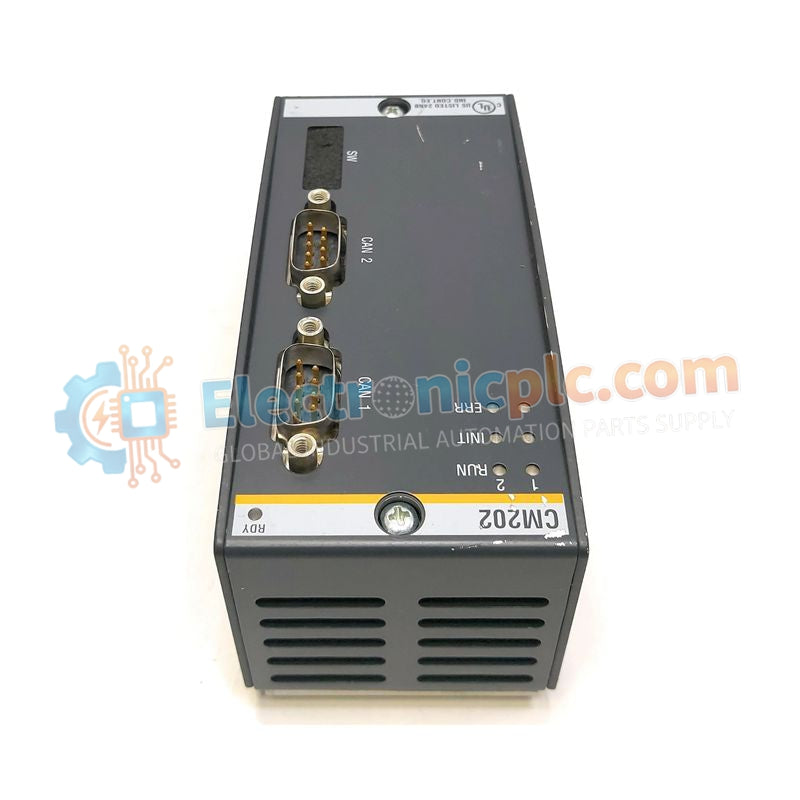

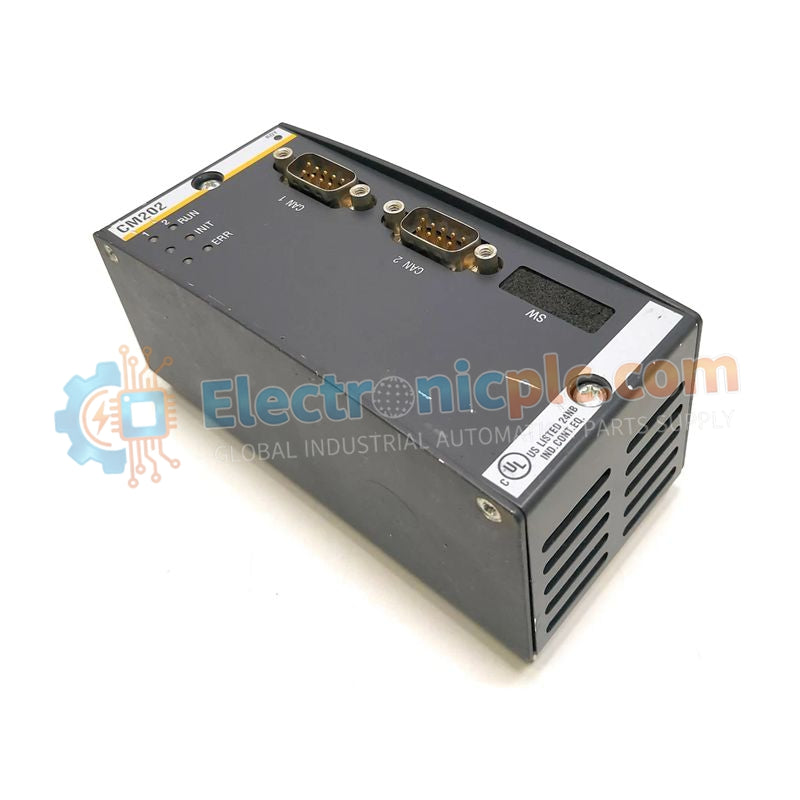

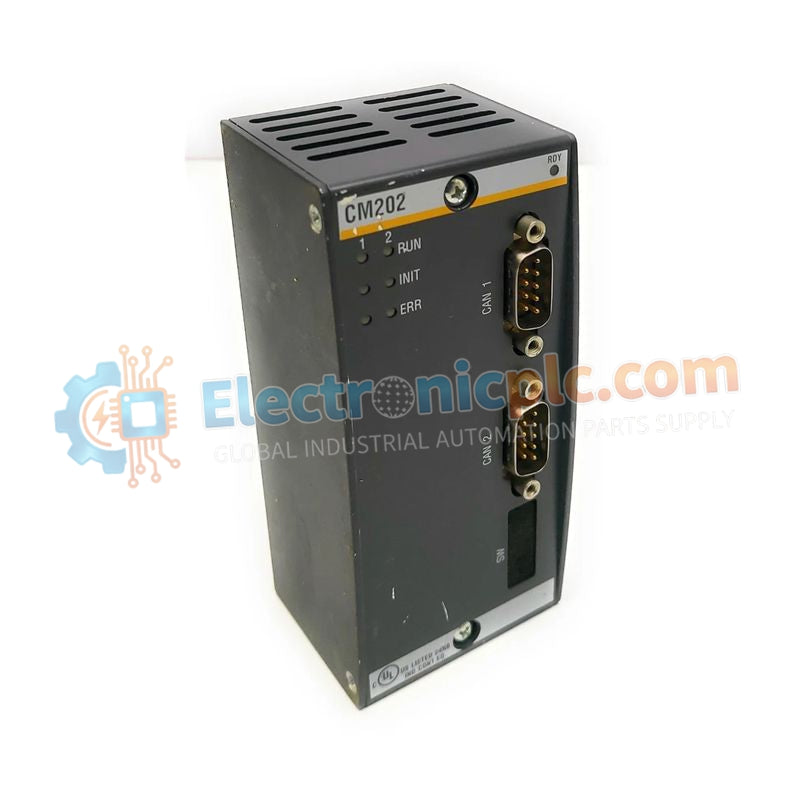

The Bachmann CM202 is a high-performance communication interface engineered for the Bachmann M1 Automation System. Acting as a CANopen master controller, the module enables deterministic management of decentralized I/O devices, sensors, and drives within synchronized automation networks.
With a compact design, the CM202 minimizes control cabinet footprint while providing robust, industry-standard communication capabilities. Its integration allows the offloading of network management tasks from the main CPU, ensuring reliable and timely data exchange in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Model Identifier | CM202 |
| Communication Protocol | CANopen Master |
| Platform Compatibility | Bachmann M1 System |
| Physical Dimensions | 54 mm × 55 mm × 118 mm |
| Net Weight | 0.22 kg |
| Application | Industrial fieldbus synchronization and distributed I/O control |
The Bachmann CM202 streamlines fieldbus operations by managing CANopen communication cycles and offloading processing from the central controller. It ensures deterministic process data exchange between the master and remote slave nodes, maintaining high-speed performance and reliability even in environments with significant electromagnetic interference.
The module’s master functionality supports complex network topologies, PDO mapping, and node-specific configuration, enabling precise synchronization of distributed I/O and automation devices across the network.
Can the CM202 interface with non-Bachmann CANopen slave devices?
Yes. The CM202 is fully compliant with the CANopen standard, allowing it to act as a master for any third-party CANopen-compliant slave devices, including motor drives, encoders, and remote I/O modules.
How is the CM202 configured within the M1 system?
Configuration is performed via Bachmann SolutionCenter, where users define the network topology, PDO mappings, and node-specific parameters to establish and manage the CANopen communication cycle.
