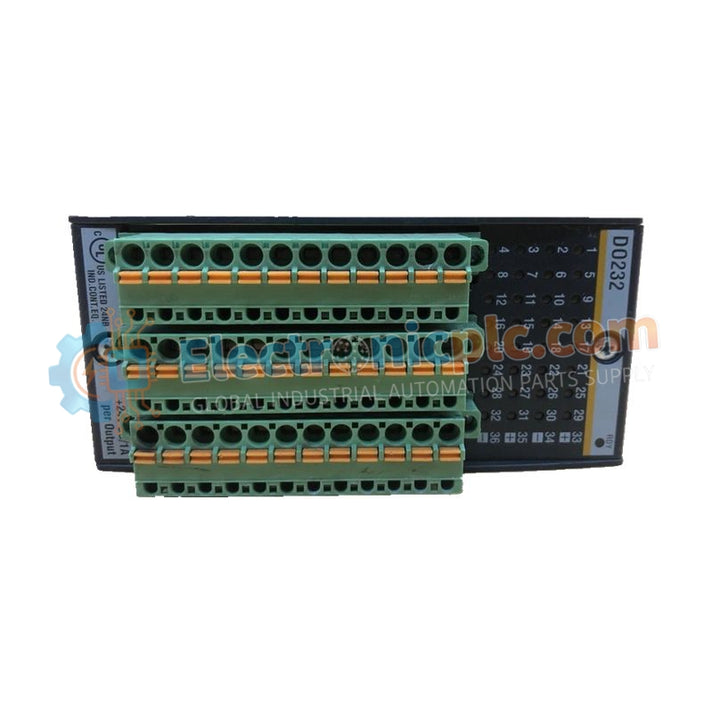

Bachmann DO232 Digital Output Module

Bachmann DO232 Digital Output Module

Product Description

The Bachmann DO232 is a high-density digital output module for the M1 automation system, designed to control field-level actuators such as relays, contactors, valves, and alarm indicators. It provides reliable switching between controller...

15 people are viewing this right now

Availability: Low stock: 99 left

SKU: DO232
Vendor: Bachmann
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The Bachmann DO232 is a high-density digital output module for the M1 automation system, designed to control field-level actuators such as relays, contactors, valves, and alarm indicators. It provides reliable switching between controller logic and output devices, supporting both 16-channel and 32-channel configurations.

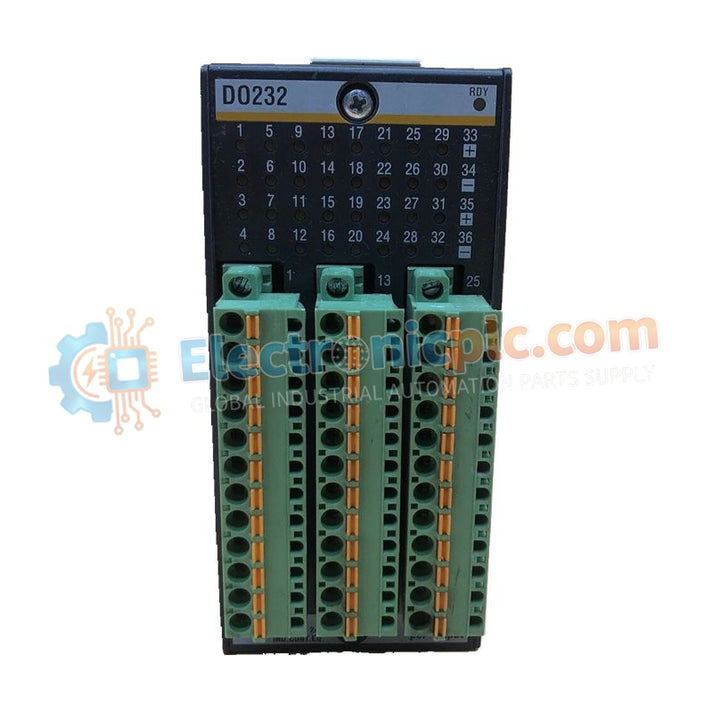

The module features a compact, modular design for efficient cabinet space usage. Integrated LED indicators on every channel allow real-time monitoring, enabling rapid diagnostics and troubleshooting in industrial automation environments.

Technical Specifications

Parameter Specification
Model DO232
Product Type Digital Output Module
Channels 16 or 32
Output Capacity 16-channel: 2.5 A per channel; 32-channel: 1 A per channel
Connectivity M1 Automation System
Diagnostic Indicators LED status for each channel
Design High-density, compact modular
Application Relays, contactors, valves, alarm signaling

Key Features

  • Flexible Output Modes: Choose between 16 or 32 channels depending on load requirements

  • Real-Time Monitoring: Front LEDs indicate output state for quick diagnostics

  • Space-Efficient: Compact design minimizes control panel footprint

  • Industrial Reliability: Deterministic switching ensures precise control in harsh environments

FAQ

Can the DO232 drive heavy-duty contactors directly?
Yes. The 16-channel mode delivers 2.5 A per channel, sufficient for most industrial relays and contactors.

Does the module require external terminal blocks?
Wiring depends on the M1 backplane and connector type, but the module is designed for compact integration without additional terminal blocks in most installations.
