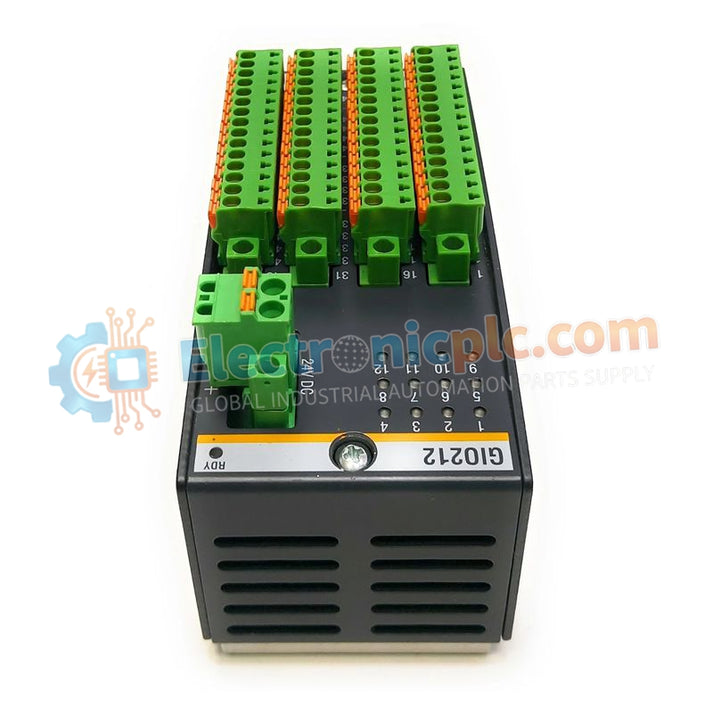

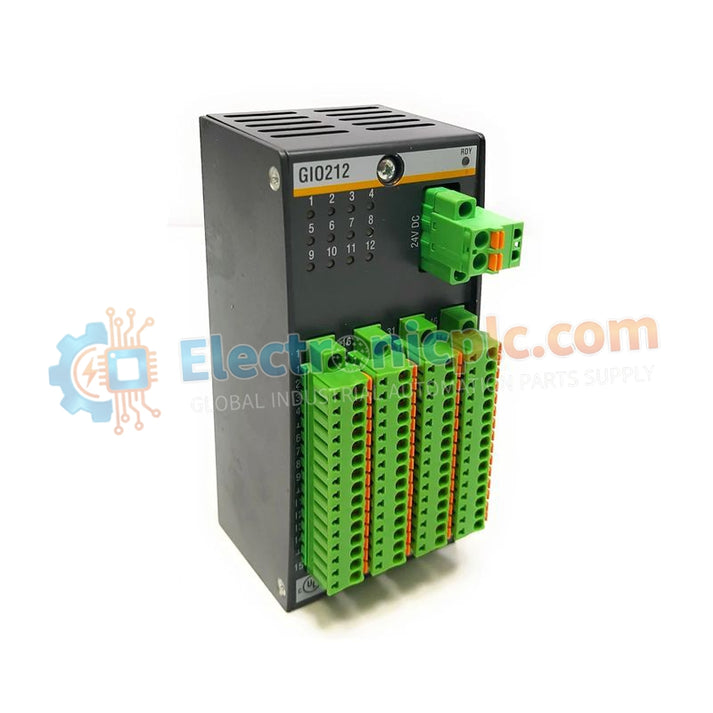

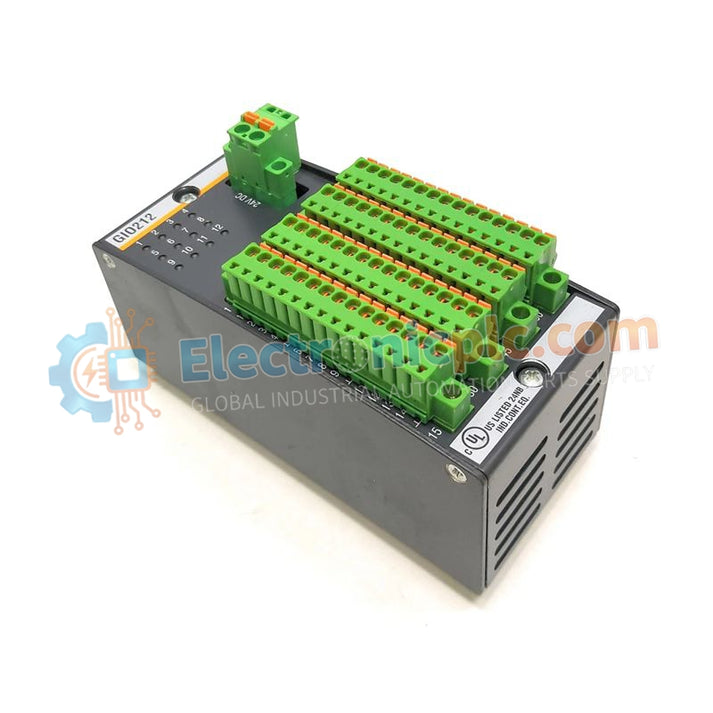

The GIO212 is a high-density, multi-functional interface module for the Bachmann M1 automation platform. Each of its 12 software-configurable channels can be assigned as analog input, digital I/O, or temperature sensor interface, consolidating diverse signal types into a single versatile module. This approach reduces system complexity, spare parts inventory, and rack space requirements. Ideal for applications ranging from precision temperature monitoring to high-speed digital control, the GIO212 delivers flexible, reliable signal processing in harsh industrial environments.
| Specification | Details |
|---|---|
| Model Identification | GIO212 |
| Channel Count | 12 Universal, Software-Configurable Channels |
| Analog Inputs | ±10 mV to ±10 V; 0/4–20 mA |
| Digital Inputs/Outputs | 24 VDC logic; Outputs: Push-Pull, High-Side, Low-Side |
| Pulse/PWM Support | Integrated PWM/frequency outputs |
| Galvanic Isolation | 500 V (Process level ↔ System bus) |
| Operating Temperature | -30°C to +60°C |
| Diagnostics | Individual channel status monitoring via Bachmann SolutionCenter |
Consolidates diverse signal types into a single module, reducing rack footprint.
Ideal for decentralized control stations, pilot plants, engine monitoring, and HVAC automation.
Software flexibility allows channels to switch between digital, analog, and temperature inputs without re-wiring.
Supports precision RTD measurements (2-, 3-, 4-wire) for accurate temperature control.
Unlike AI204 (analog-only) or DI232 (digital-only), the GIO212 provides all-in-one versatility.
Reduces the need for multiple dedicated modules and eliminates unused slots in a rack.
While high-speed analog or digital modules may outperform it in extreme polling scenarios, the GIO212 excels in mixed-signal, flexible deployment.
Q: Can I mix different signal types on the same module?
A: Yes, all 12 channels are independently configurable. You can simultaneously have a thermocouple, a 4-20mA input, and a PWM output on separate channels.
Q: Does it support 4-wire Pt100 for higher accuracy?
A: Yes, it supports 2-, 3-, and 4-wire RTD configurations to compensate for lead resistance and ensure precise temperature measurement.
