Description

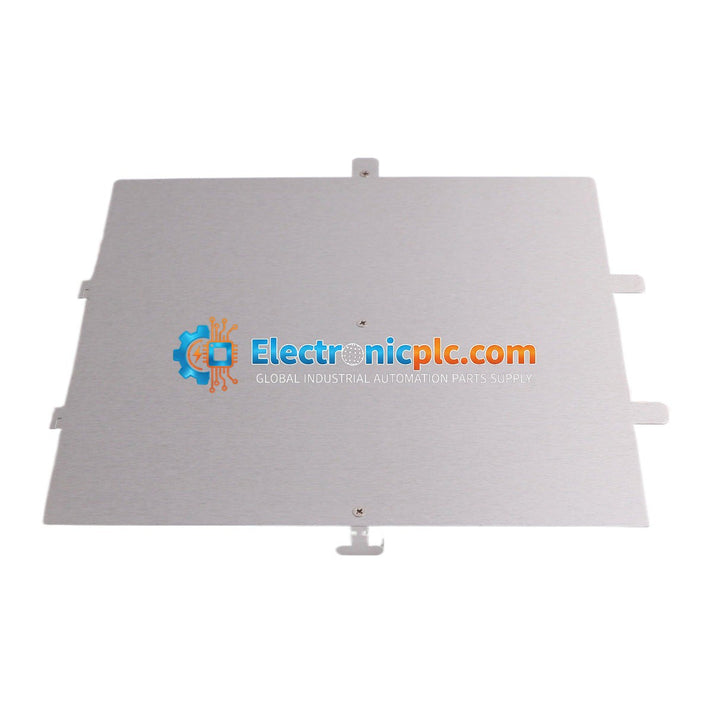

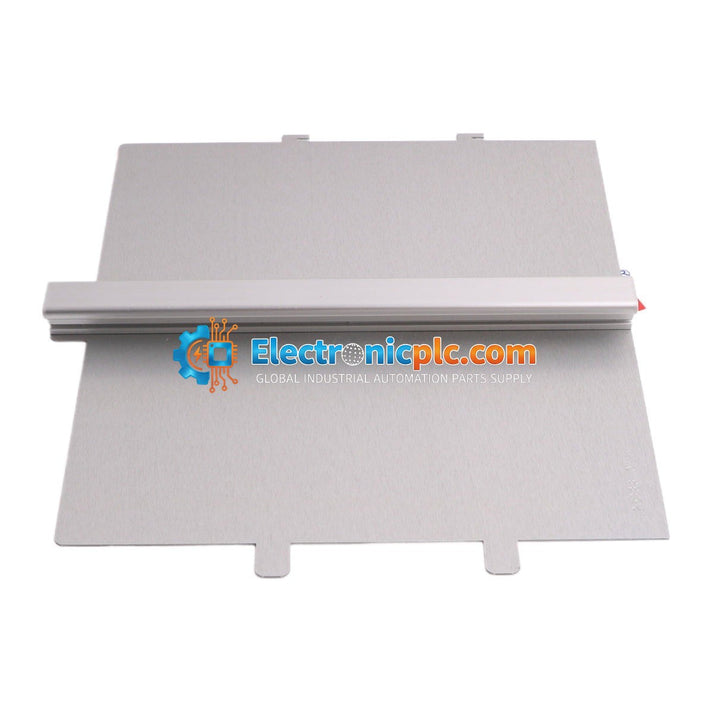

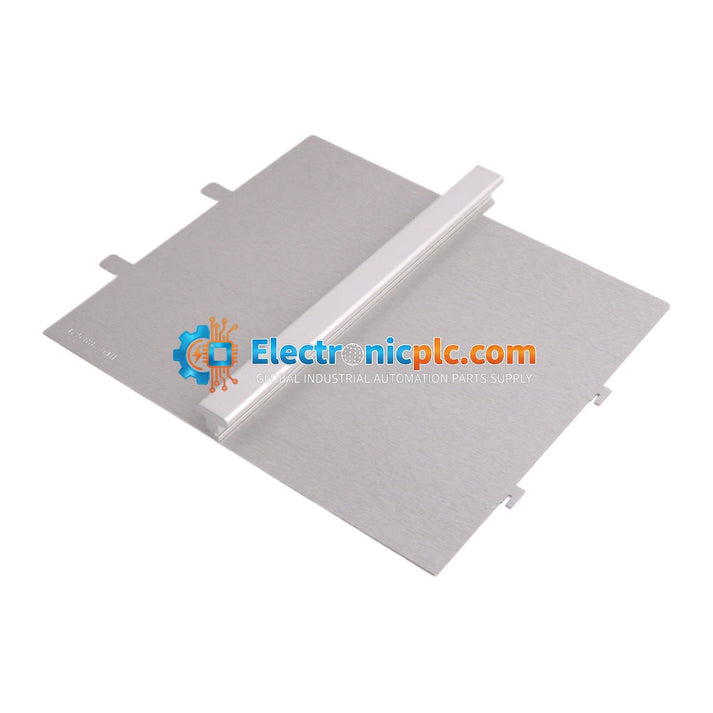

The Bently Nevada 125388-01H is a half-height module internal chassis designed for use within the Bently Nevada 3500 Machinery Protection System. This component provides the necessary structural support and internal mounting interface for half-height modules, ensuring proper alignment and connectivity within the system rack. It serves as a critical mechanical housing component to maintain the integrity of the modular monitoring configuration.

Features

• Designed specifically for Bently Nevada 3500 series rack systems
• Supports half-height module form factors
• Provides secure mechanical mounting and alignment
• Robust construction for industrial rack environments
• Compatible with 125388-01 spare model specifications

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack power is disconnected before attempting to install or remove any internal chassis components.
• Verify that the chassis is free of debris and that the guide rails are unobstructed before sliding the module into the rack.
• Ensure the module is fully seated and the front panel locking mechanisms are engaged to maintain proper grounding and electrical contact with the backplane.
• Handle with care to avoid bending pins or damaging the internal connectors during insertion.
• Maintain proper ventilation in the rack environment to ensure optimal operating temperatures for all installed modules.

FAQ

What is the difference between 125388-01H and 125388-01?

The 125388-01H is the specific orderable model, while 125388-01 is the base spare model identifier. They refer to the same half-height module internal chassis hardware.

Is this chassis compatible with all 3500 series racks?

This chassis is designed for standard Bently Nevada 3500 series rack configurations that support half-height module spacing. Please verify your specific rack configuration requirements before installation.
