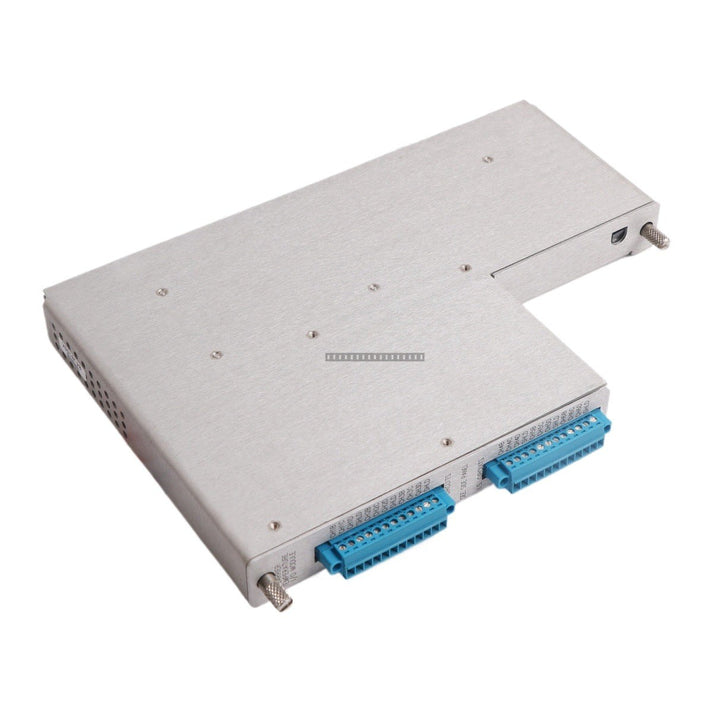

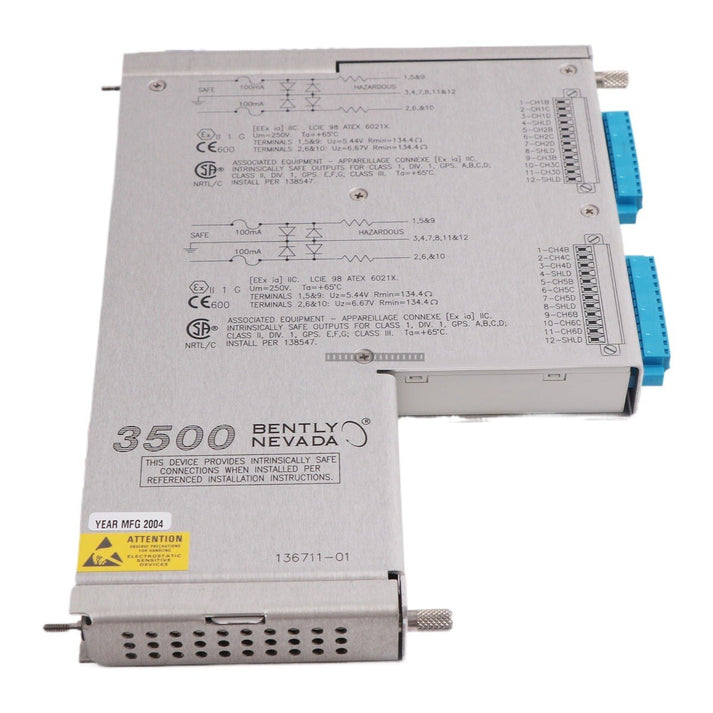

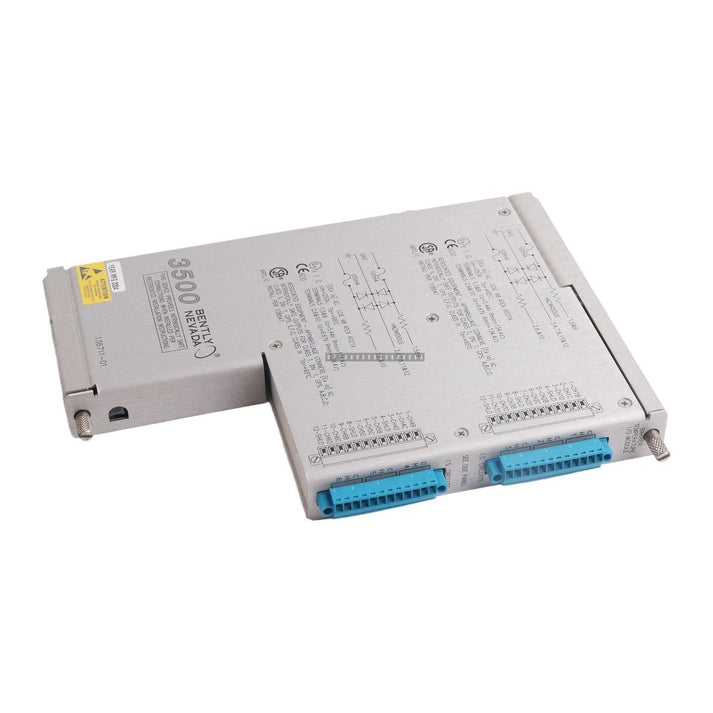

Bently Nevada 136711-01 3500/60 I/O Module

Bently Nevada 136711-01 3500/60 I/O Module

Description

The Bently Nevada 136711-01 is an I/O module designed for the 3500/60 Temperature Monitor system. This module facilitates the interface between field sensors and the 3500 rack, providing reliable signal...

15 people are viewing this right now

Availability: Low stock: 8 left

SKU: 136711-01
Vendor: Bently Nevada
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 136711-01 is an I/O module designed for the 3500/60 Temperature Monitor system. This module facilitates the interface between field sensors and the 3500 rack, providing reliable signal processing for temperature monitoring applications in critical rotating machinery environments.

Features

  • Supports multiple analog input ranges including 4-20 mA and +/- 10V signals.
  • Configurable analog outputs for 4-20 mA, 0-20 mA, and voltage ranges of +/- 10V or 0-10V.
  • Integrated digital inputs rated for 24V DC operation.
  • Equipped with relay contacts rated for 2A at 30V DC or 250V AC.
  • Designed for high-reliability operation in industrial environments with a wide temperature range.

Technical Specifications

Model 136711-01
System Compatibility 3500/60 Temperature Monitor
Analog Inputs 4-20 mA, +/- 10V
Analog Outputs 4-20 mA, 0-20 mA, +/- 10V, 0-10V
Digital Inputs 24V DC (+/- 10%)
Relay Contact Rating 2A @ 30V DC / 250V AC
Operating Temperature -40 degC to +70 degC (-40 degF to +158 degF)
Humidity 5-95% non-condensing

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
  • Verify that the module is correctly seated in the designated rack slot to ensure proper backplane communication.
  • Use appropriate shielded cabling for all analog and digital I/O to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices as specified in the Bently Nevada 3500 system manual to ensure signal integrity.
  • Ensure adequate ventilation around the rack to maintain operating temperatures within the specified -40 degC to +70 degC range.

FAQ

Is this module compatible with other 3500 series monitors?
The 136711-01 is specifically designed for the 3500/60 Temperature Monitor. Please consult your system configuration documentation to ensure compatibility with your specific rack setup.

What is the primary function of this I/O module?
This module acts as the interface between field-mounted temperature sensors and the 3500 monitoring system, allowing for signal conditioning, alarm relay activation, and transmission of analog data to external control systems.
