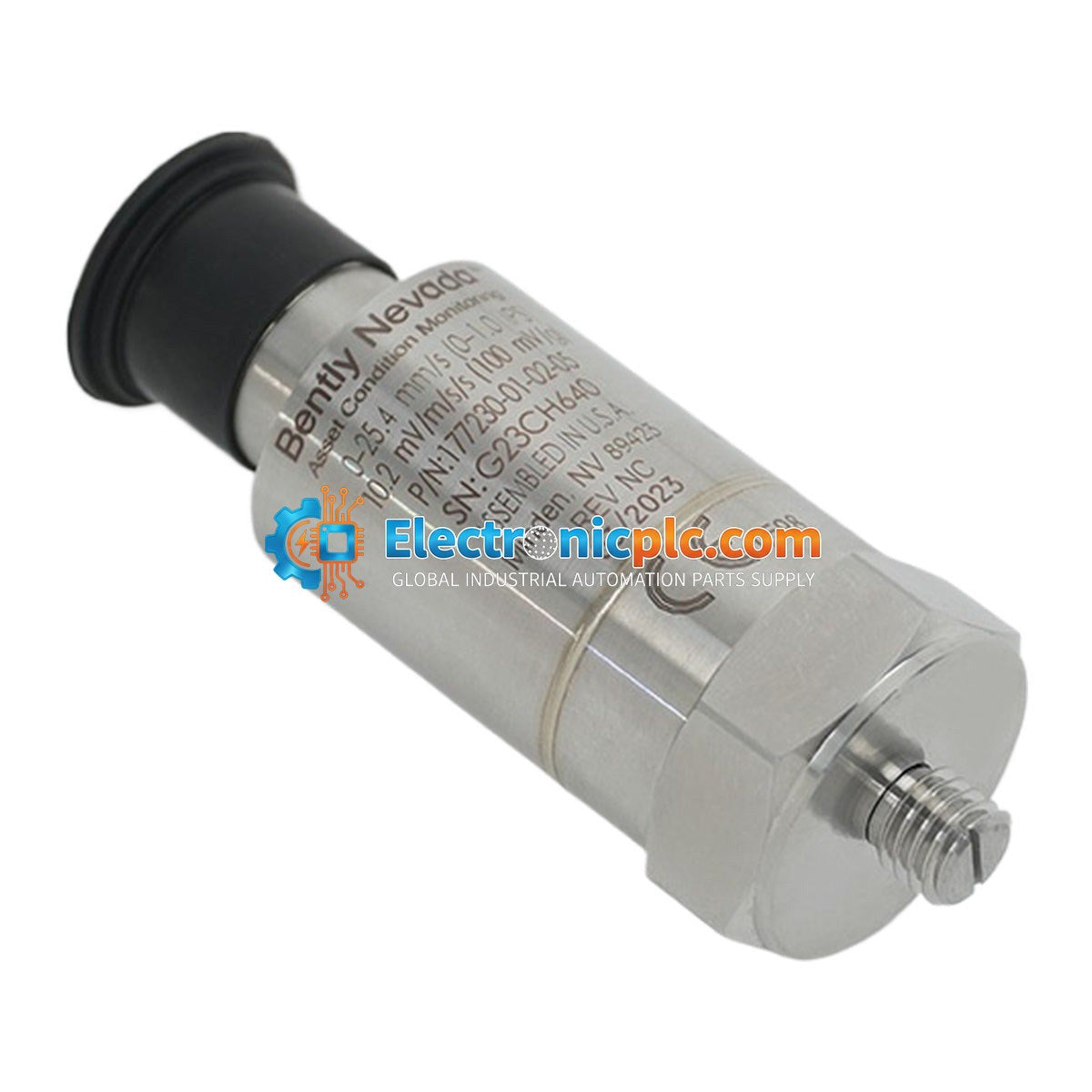

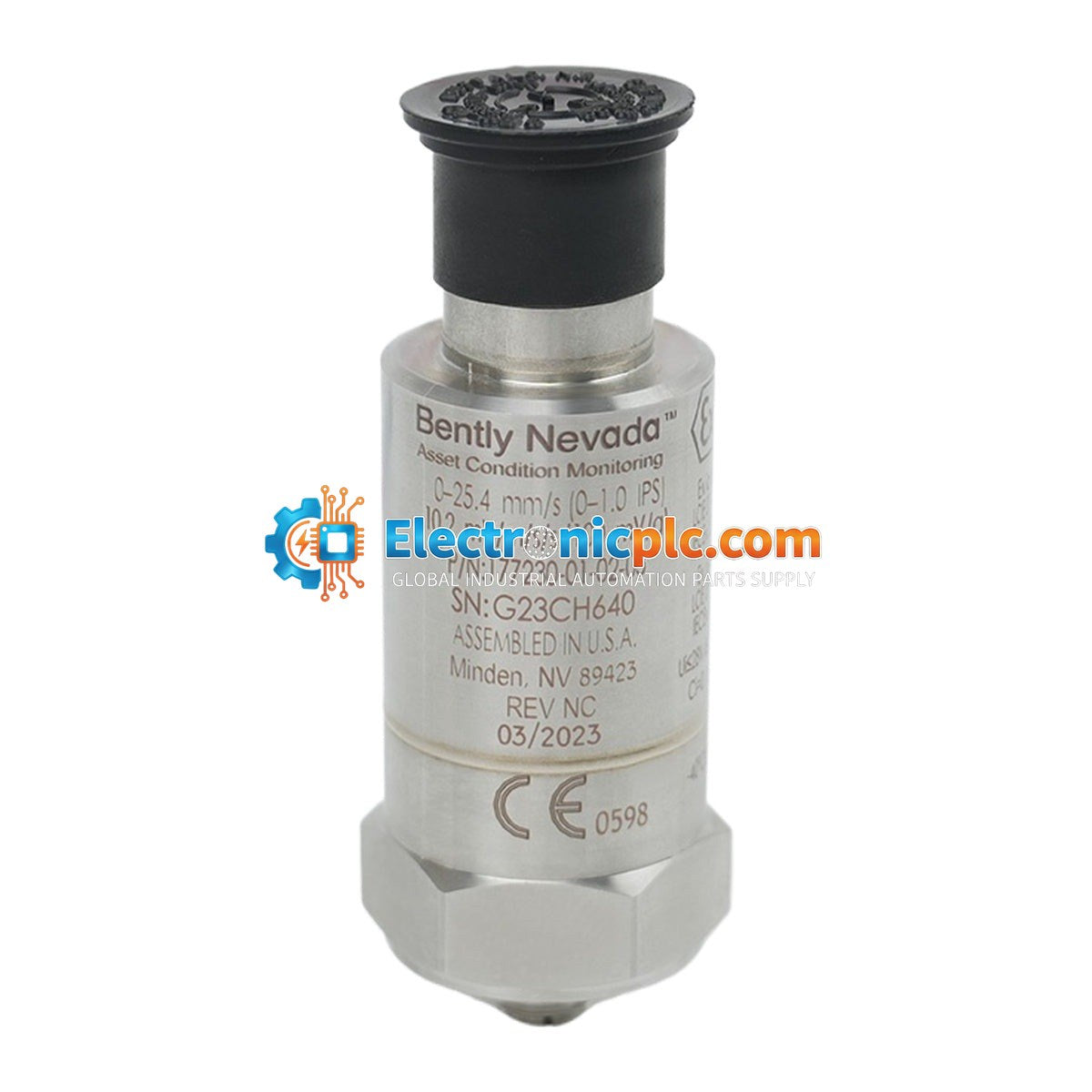

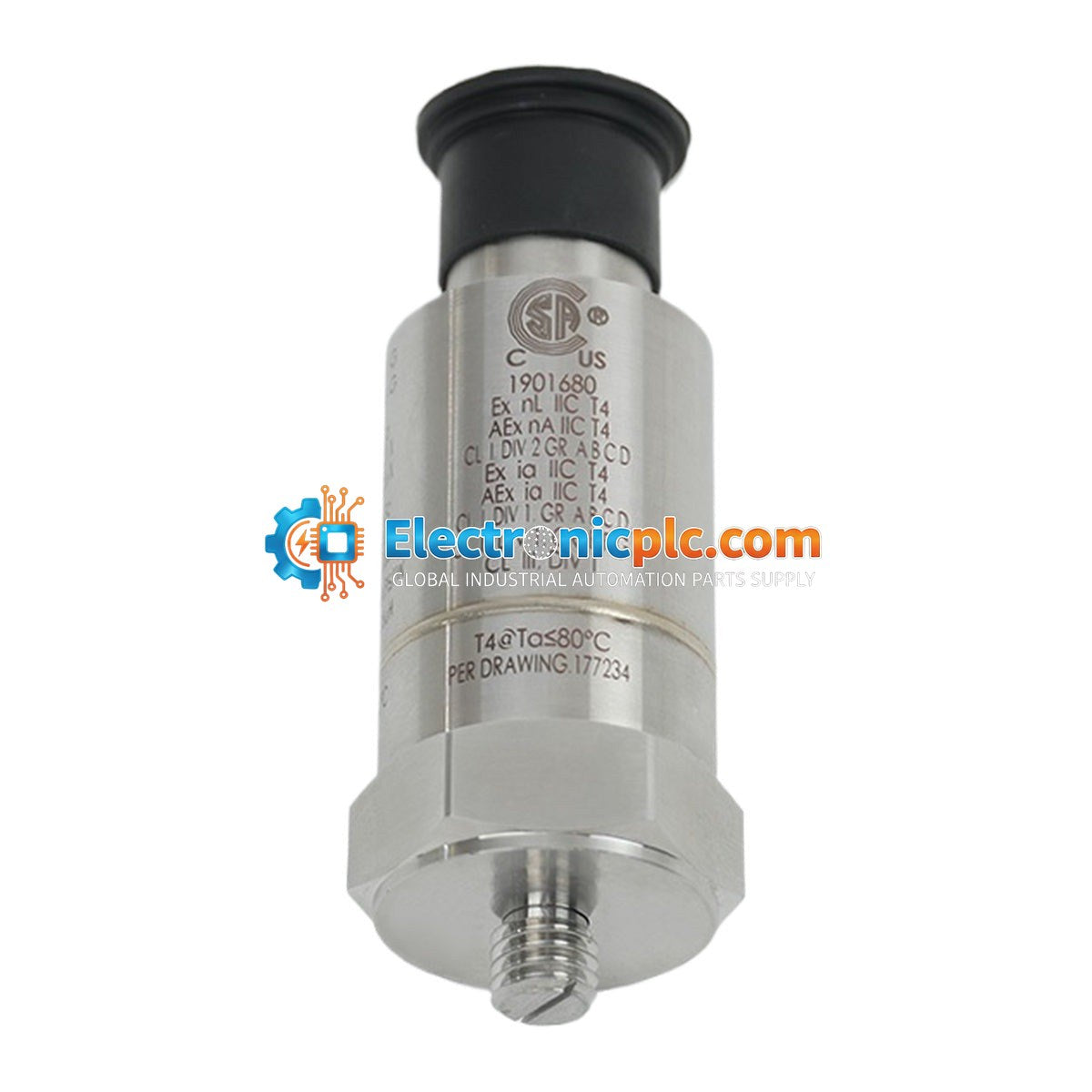

Bently Nevada 177230-01-02-05 Seismic Transmitter

Bently Nevada 177230-01-02-05 Seismic Transmitter

Description

The Bently Nevada 177230 Seismic Transmitter is a loop-powered, 316L stainless steel vibration monitoring device designed for general-purpose machinery. It provides a reliable 4–20 mA output proportional to velocity vibration...

15 people are viewing this right now

Availability: Low stock: 6 left

SKU: 177230-01-02-05
Vendor: Bently Nevada
Category: Seismic Transmitter
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 177230 Seismic Transmitter is a loop-powered, 316L stainless steel vibration monitoring device designed for general-purpose machinery. It provides a reliable 4–20 mA output proportional to velocity vibration levels, allowing for seamless integration into PLCs, DCS, and SCADA monitoring systems. By providing continuous casing vibration data, this transmitter assists in optimizing maintenance schedules and preventing unexpected equipment failures.

Features

  • Loop-powered 4 to 20 mA output for simplified integration with control systems.
  • Robust 316L stainless steel housing for durability in industrial environments.
  • No field configuration or complex adjustments required.
  • Supports a variety of interface cables for flexible installation.
  • Compatible with standard PLC, DCS, and SCADA input cards.

Applications

  • Small to medium-sized electric motors.
  • Centrifugal and industrial process pumps.
  • Fans and blowers (HVAC, cooling towers, ventilation).
  • Small reciprocating compressors.
  • Industrial centrifuges.
  • Auxiliary turbines and generators.

Technical Specifications

Model 177230-01-02-05
Measurement Range 0 – 25.4 mm/s (0 – 1.0 in/s)
Frequency Response 3 Hz to 1 kHz (180 to 60 kcps) peak
Sensitivity 10.2 mV/m/s2 (100 mV/g) ± 20%
Full Scale Range 147 m/s2 (15 g) peak
Linearity ± 1% of Full Scale
Output 4–20 mA (proportional to velocity)
Power Supply 24V DC (loop-powered)
Approvals CSA/NRTL/C, ATEX/IECEx

Installation Guidelines

  • Ensure the mounting surface is flat and clean to maintain accurate vibration signal transmission.
  • The device is typically mounted using a 1/4-28 UNF mounting hole or appropriate M6/M8 adapters.
  • Use shielded cabling to minimize electromagnetic interference (EMI) in industrial environments.
  • Verify loop polarity before applying 24V DC power to the 4-20 mA loop.
  • Handle with care to avoid mechanical shock to the internal sensor element.
  • Always power down the loop before connecting or disconnecting the transmitter.

FAQs

What is the 177230-01-02-05?

It is a loop-powered seismic transmitter designed to monitor vibration on roller element bearing housings, providing a 4-20 mA output for control systems.

What signal does this transmitter output?

It provides a standard 4–20 mA output signal that is proportional to the measured velocity vibration level.

How is the device mounted?

The transmitter is typically mounted via a 1/4-28 UNF mounting hole. Adapters for M6 or M8 threads are often used depending on the specific machine interface.

What power supply is required?

The unit is loop-powered and requires a 24V DC supply provided through the 4-20 mA current loop.
