Bently Nevada 24765-01-01 DC LVDT Assembly

Bently Nevada 24765-01-01 DC LVDT Assembly

Description

The Bently Nevada 24765-01-01 is a DC-operated Linear Variable Differential Transformer (LVDT) assembly designed for precise position measurement in industrial environments. This transducer converts mechanical displacement into a proportional DC...

27 people are viewing this right now

Availability: In stock

SKU: 24765-01-01
Vendor: Bently Nevada
Category: LVDT Transducer
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

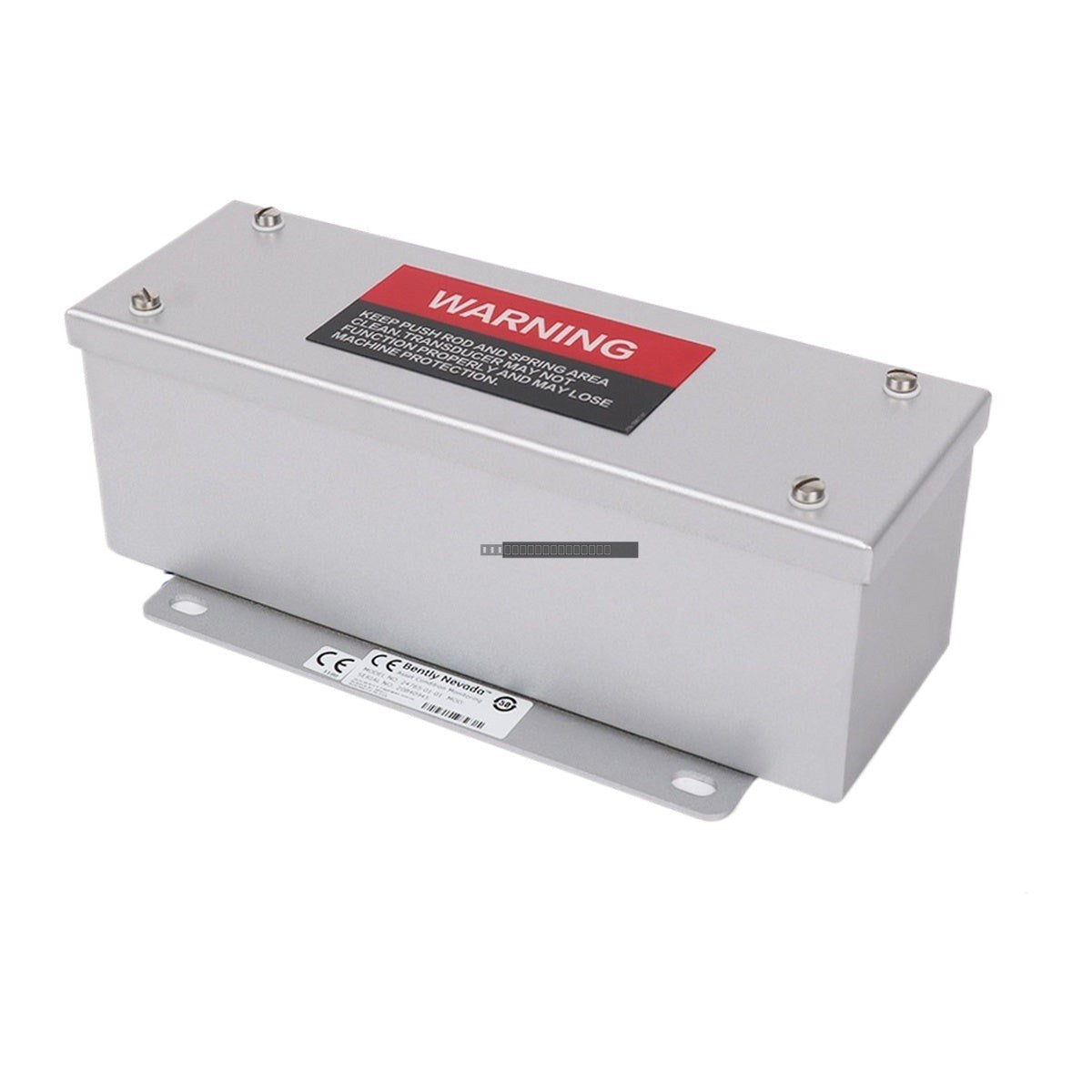

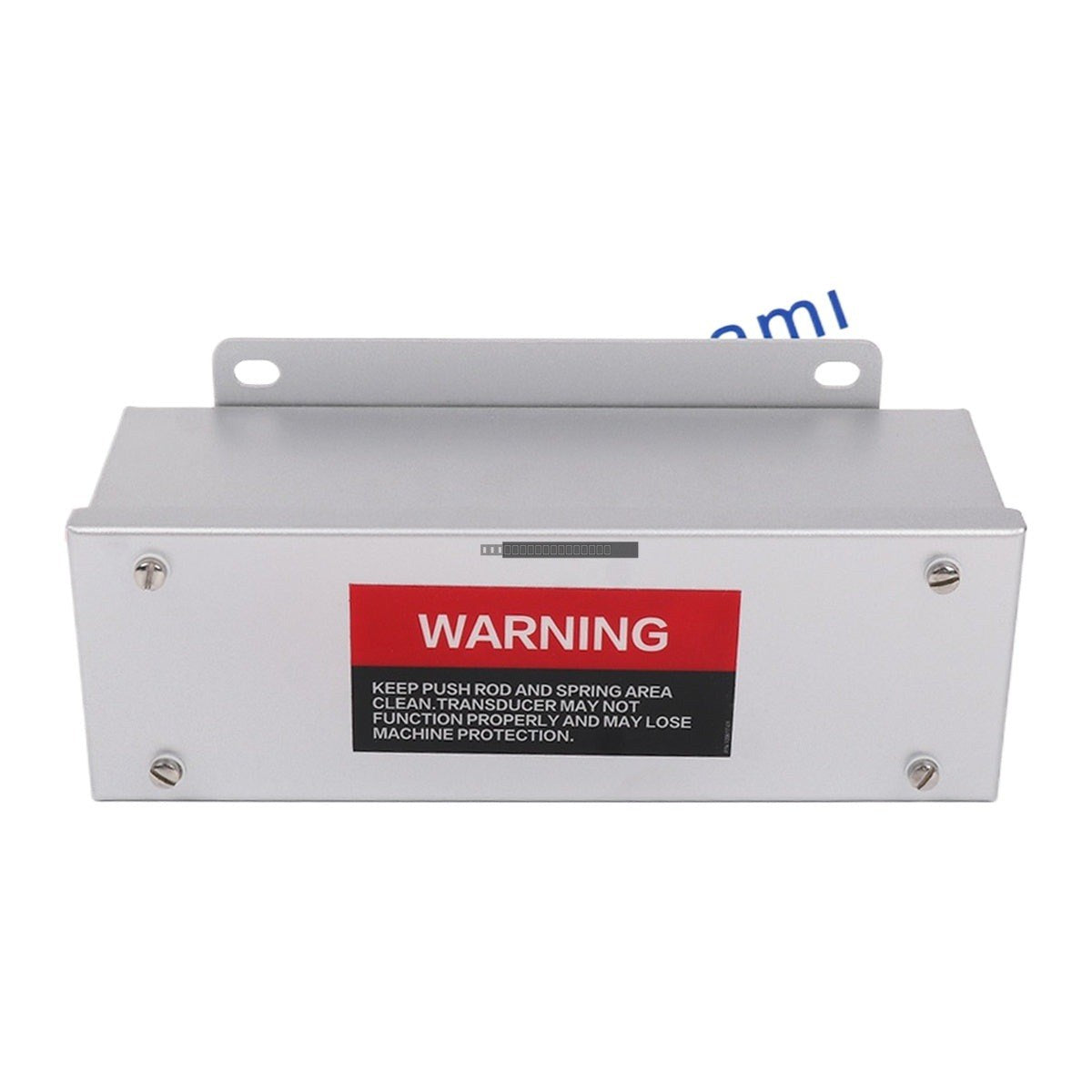

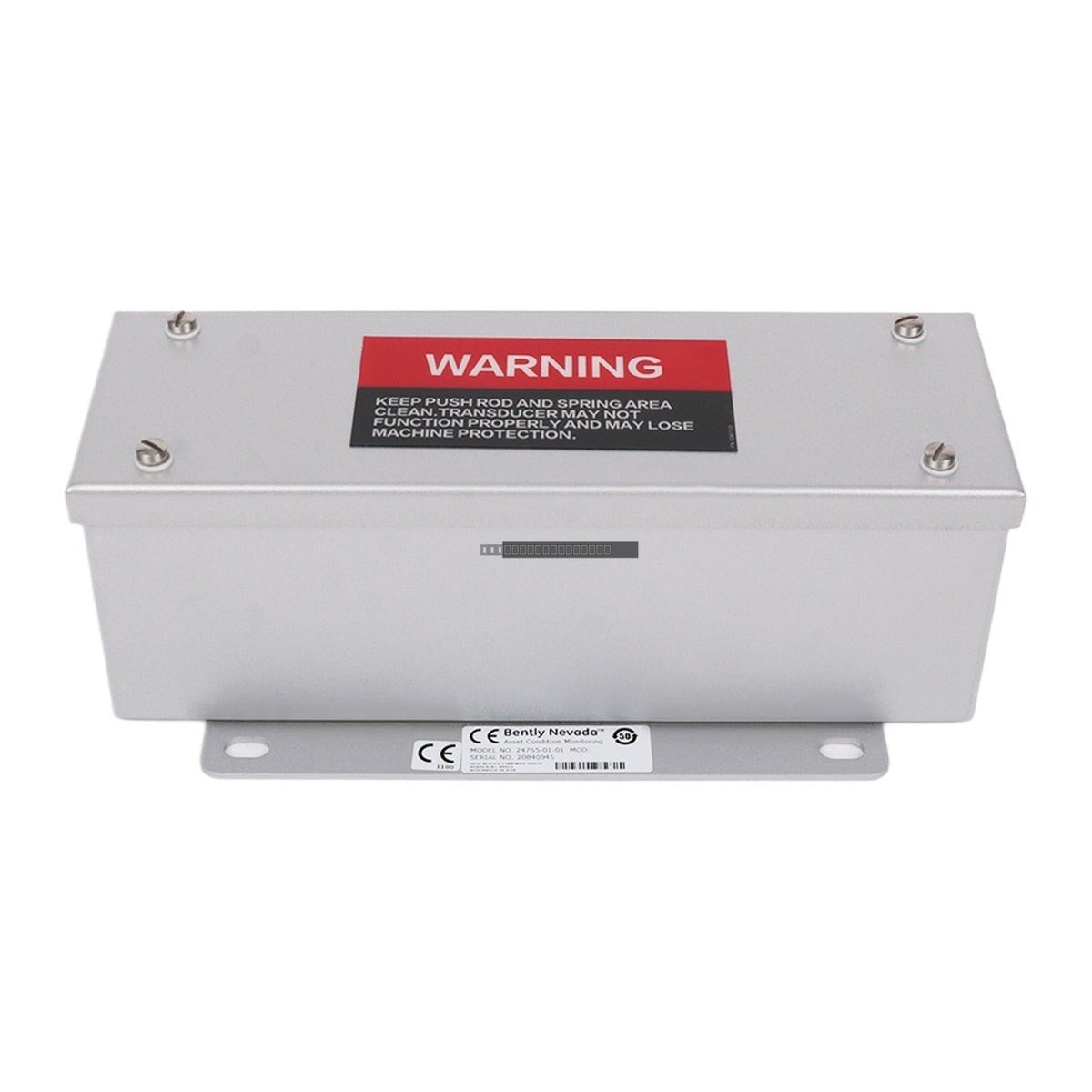

The Bently Nevada 24765-01-01 is a DC-operated Linear Variable Differential Transformer (LVDT) assembly designed for precise position measurement in industrial environments. This transducer converts mechanical displacement into a proportional DC voltage signal, facilitating integration into monitoring and control systems for rotating machinery and critical industrial assets.

Features

  • Integrated DC-to-DC conversion for simplified signal conditioning.
  • High-stability output with low ripple characteristics.
  • Designed for robust performance across a wide operating temperature range.
  • Linearity performance suitable for critical position sensing applications.

Technical Specifications

Model 24765-01-01
Scale Factor 0.346 V/mm (8.79 V/in)
Measurement Range +/- 12.7 mm (+/- 0.5 in)
Frequency Response 20 Hz
Load Impedance 50 kOhm
Linearity +/- 0.5% full-range
Ripple < 1% full scale
Stability 0.125% full-scale
Scale Factor Temp Coefficient 0.07%/degC (0.04%/degF)
Operating Temperature -18 degC to +71 degC (0 degF to +160 degF)
Storage Temperature -54 degC to +93 degC (-65 degF to +200 degF)

Installation Guidelines

  • Ensure the LVDT is mounted securely to minimize mechanical vibration interference.
  • Use shielded cabling to prevent electromagnetic interference (EMI) from affecting the low-voltage output signal.
  • Verify that the mounting alignment is parallel to the axis of motion to maintain rated linearity.
  • Ensure the operating environment remains within the specified temperature limits to maintain measurement accuracy.
  • Power down the associated monitoring system before connecting or disconnecting the transducer to prevent electrical transients.

FAQ

What is the primary function of the 24765-01-01?

This unit is a DC LVDT assembly used for measuring linear displacement, providing a DC voltage output that corresponds to the position of the core within the transformer.

Is this sensor suitable for high-temperature environments?

The device is rated for an operating temperature range of -18 degC to +71 degC. Please ensure your application environment does not exceed these limits for reliable operation.

Does this assembly require external signal conditioning?

As a DC LVDT, it includes internal electronics to provide a DC output, reducing the need for complex external AC carrier-demodulation circuitry.
