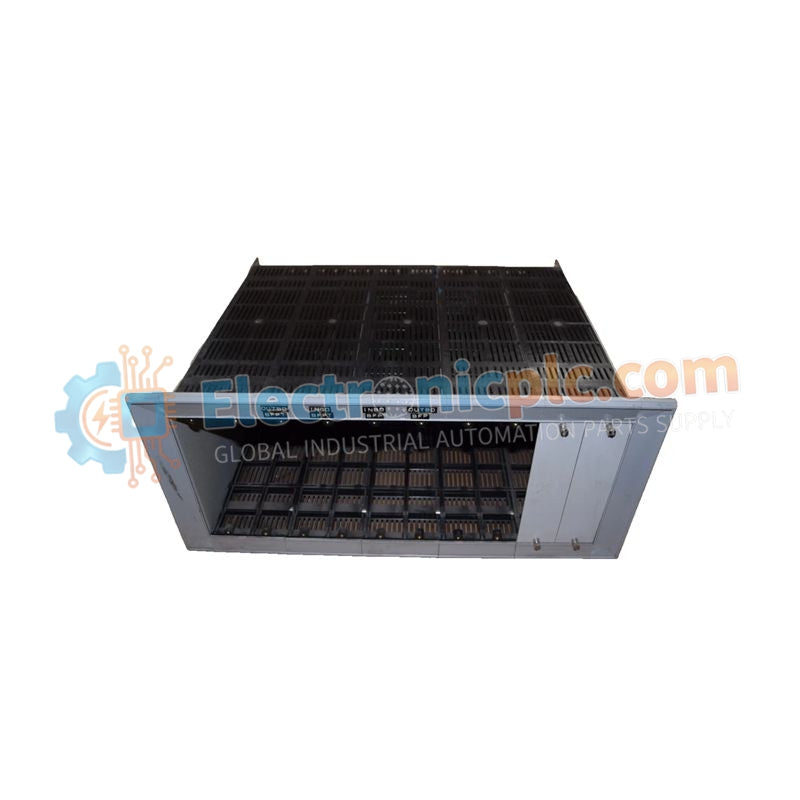

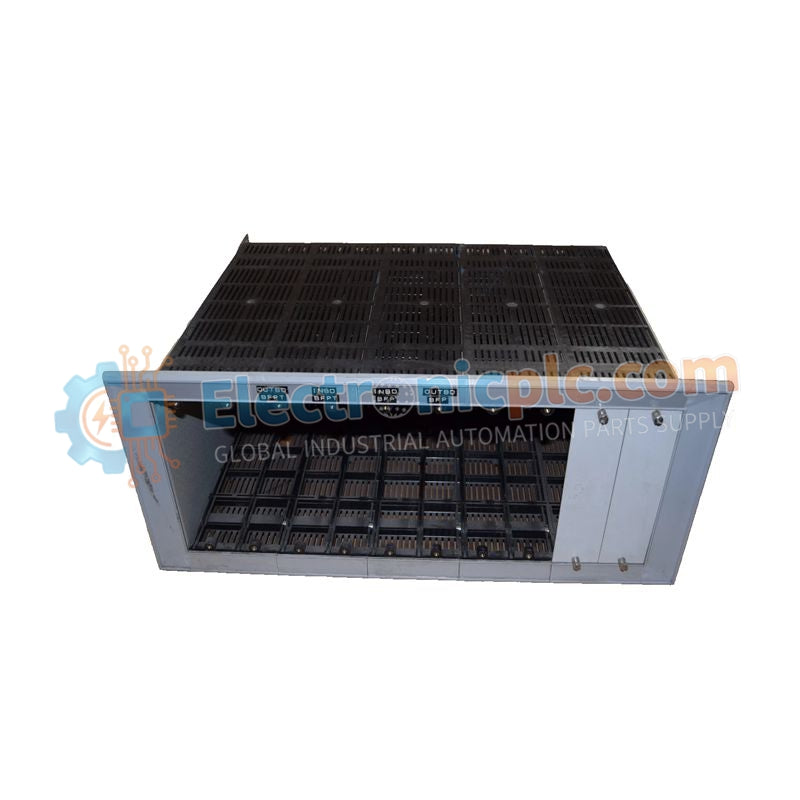

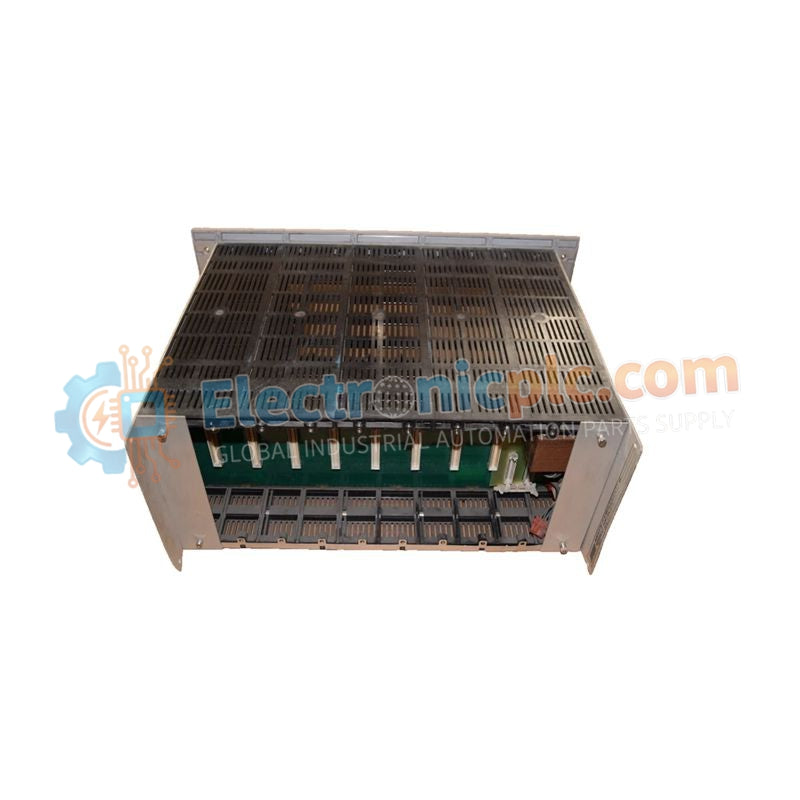

Bently Nevada 3300/05-24-00-00 Machinery Protection System Rack Chassis

Bently Nevada 3300/05-24-00-00 Machinery Protection System Rack Chassis

Product Description

The 3300/05-24-00-00 is a 10-slot modular chassis for the Bently Nevada 3300 Monitoring System, providing the structural and electrical backbone for machinery protection. It integrates power distribution and signal routing across all...

15 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3300/05-24-00-00
Vendor: Bently Nevada
Category: Machinery Protection System Rack Chassis
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3300/05-24-00-00 is a 10-slot modular chassis for the Bently Nevada 3300 Monitoring System, providing the structural and electrical backbone for machinery protection. It integrates power distribution and signal routing across all installed modules, ensuring reliable system operation with a no-internal-wiring design for rapid installation and maintenance.

Constructed from conductive, anti-static injection-molded plastic, the chassis protects sensitive electronics from ESD while maintaining optimal mechanical rigidity. The layout prioritizes power and system monitoring in the first two slots, leaving eight positions available for additional vibration, thrust, or temperature monitoring modules.

Technical Specifications

Specification Description
Model Series 3300/05
Full Part Number 3300/05-24-00-00
Total Slots 10
Chassis Material Conductive anti-static injection-molded plastic
Wiring Architecture Integrated backplane (no internal rack wiring required)
Labeling Bezel tag and clear identification strip support
Operating Temperature -20°C to +60°C (-4°F to +140°F)

Application Scenarios

The 3300/05-24-00-00 is commonly deployed in:

  • Petrochemical plants

  • Gas turbine halls

  • Water treatment facilities

It serves as the central platform for monitoring single large turbine trains or clusters of auxiliary pumps and compressors.

Rack System FAQ

Can I place a vibration monitor in Slot 1 or 2?

  • No. Slot 1 is reserved for the Power Supply (3300/12) and Slot 2 for the System Monitor (3300/01). All monitoring modules must start from Slot 3.

Is this rack compatible with 3500 Series modules?

  • No. The 3300/05-24-00-00 is exclusively compatible with the 3300 series and is physically/electrically incompatible with 3500 series modules.
