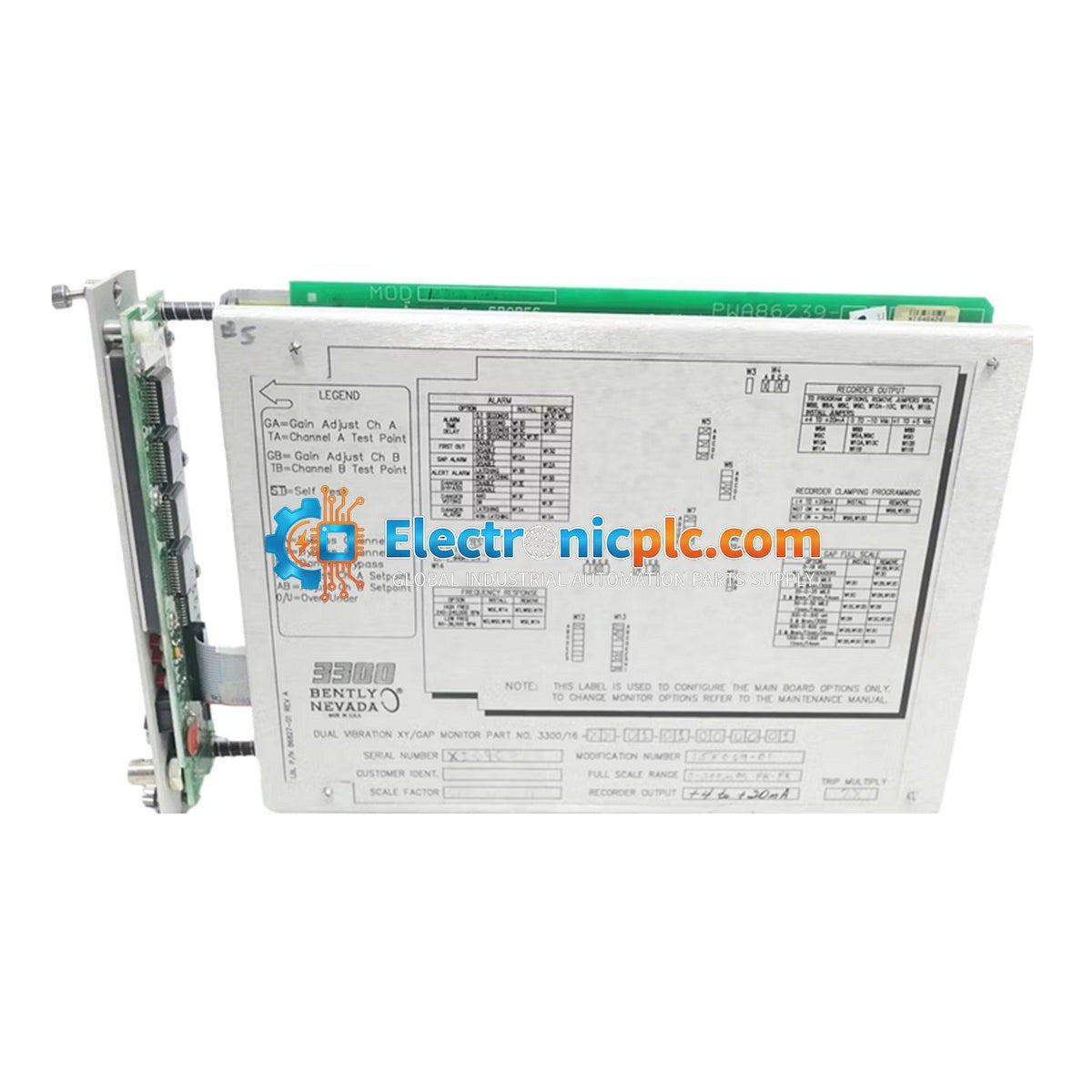

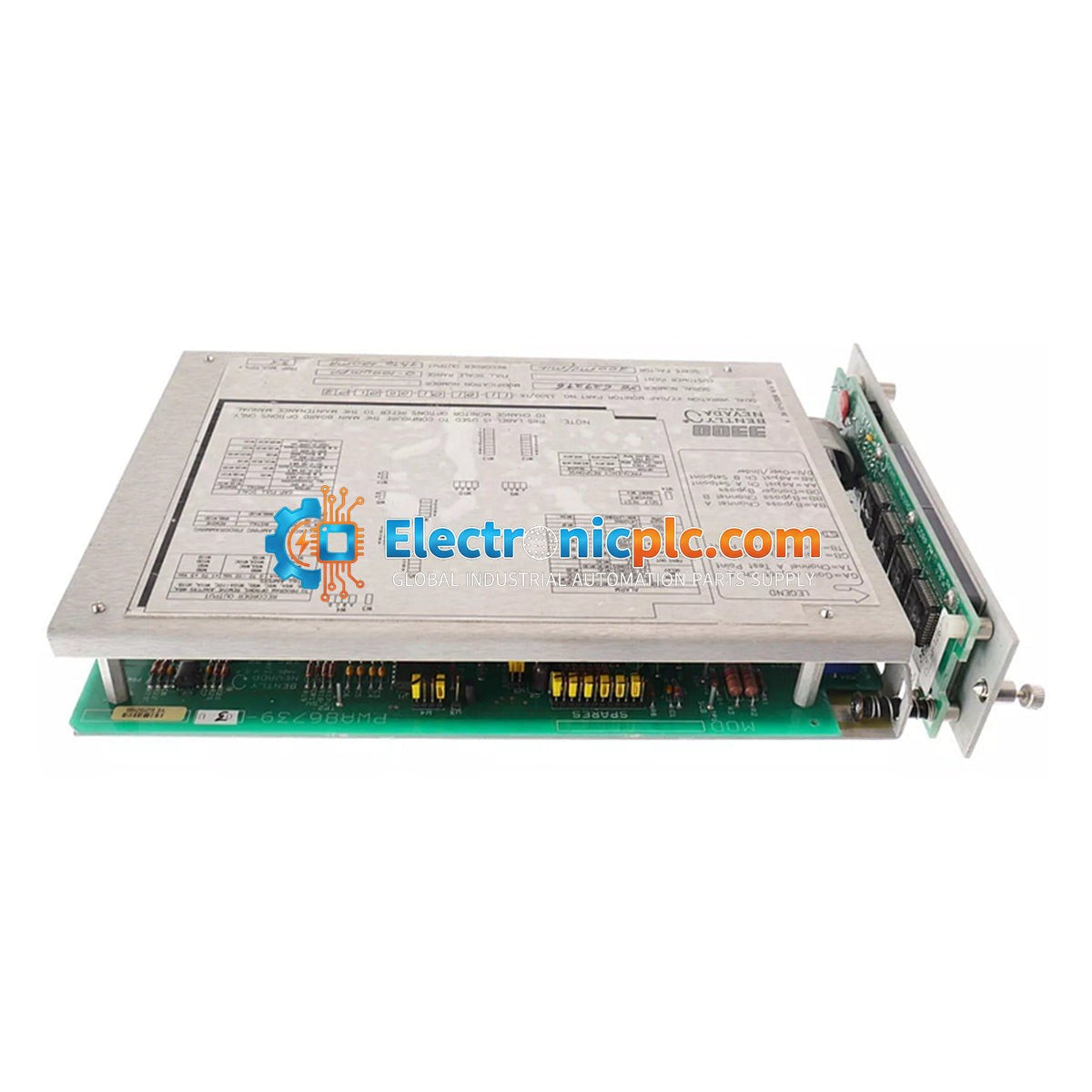

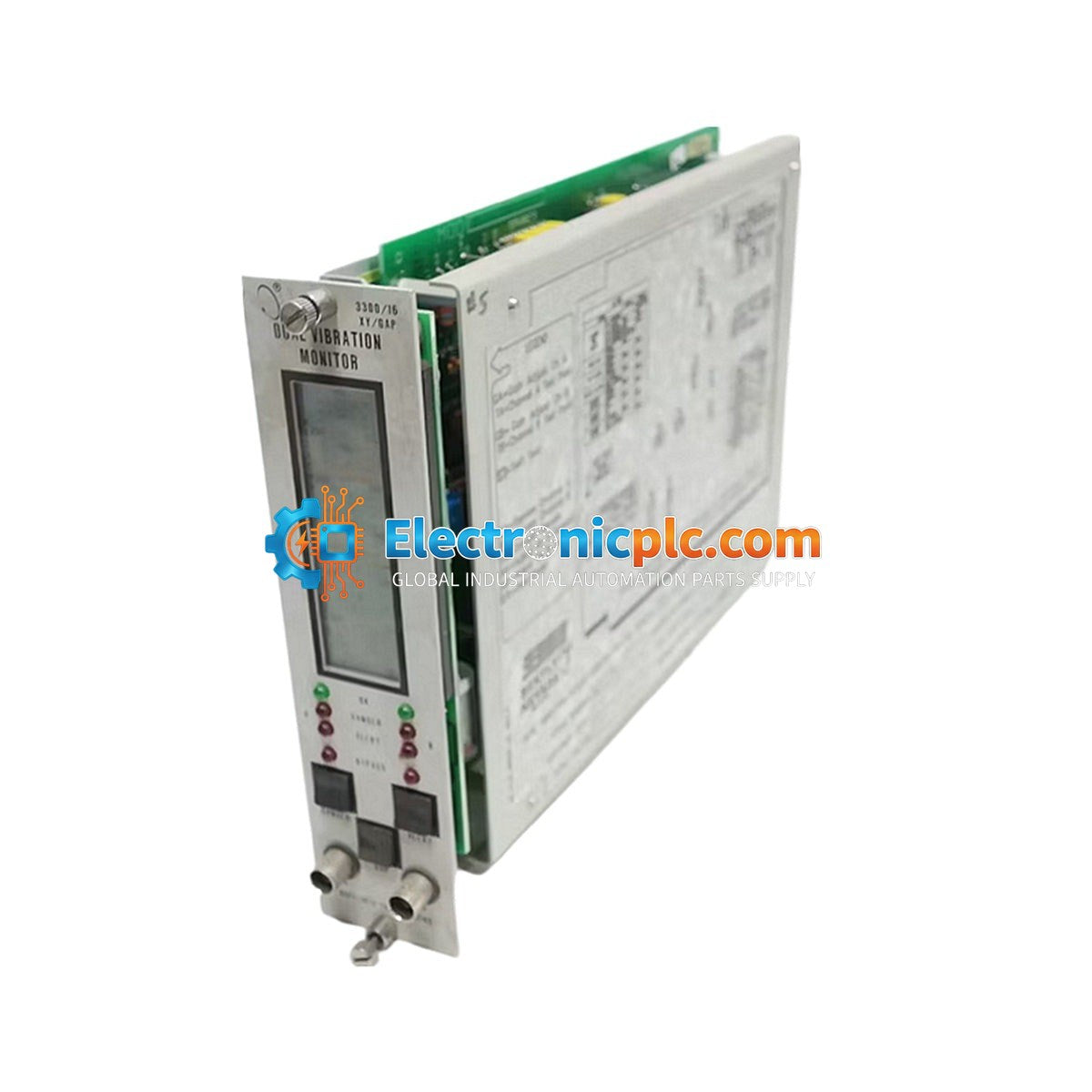

Bently Nevada 3300/16-15-01-01-00-00-00 Dual Vibration Monitor

Bently Nevada 3300/16-15-01-01-00-00-00 Dual Vibration Monitor

Description

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module designed to measure radial shaft vibration in critical rotating machinery, such as turbines and compressors. The 15 suffix...

17 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3300/16-15-01-01-00-00-00
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module designed to measure radial shaft vibration in critical rotating machinery, such as turbines and compressors. The 15 suffix option specifies a dual-channel XY vibration configuration, enabling simultaneous monitoring of two orthogonal vibration signals. This monitor continuously compares vibration parameters against user-defined alarm setpoints, providing early warning of mechanical issues and supporting predictive maintenance strategies.

Features

  • Dual-channel XY vibration monitoring for comprehensive shaft analysis.
  • Continuous signal conditioning and comparison against Alert and Danger setpoints.
  • Integrated LED status indicators for OK, Bypass, Alert, and Danger conditions.
  • Standard relay outputs for alarm annunciation.
  • Compatible with standard Bently Nevada proximity probe and Proximitor sensor systems.

Applications

This module is primarily used in industrial protection systems for monitoring radial vibration on rotating shafts in power generation, oil and gas, and petrochemical facilities. It is designed for integration into the Bently Nevada 3300 Monitoring System rack.

Technical Specifications

Model 3300/16-15-01-01-00-00-00
Brand Bently Nevada
Series 3300
Operating Temperature 0 to 60 degC
Power Consumption ~1.5 W
Signal Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Accuracy +/- 0.33% typical, +/- 1% max at 25 degC
Output Signals +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
  • Verify that the module is fully seated in the rack slot and that the front panel screws are tightened to ensure proper grounding and mechanical stability.
  • Use shielded cabling for all transducer inputs to minimize EMI/RFI interference.
  • Ensure proper ventilation within the cabinet to maintain the operating temperature between 0 and 60 degC.
  • Handle with ESD-safe precautions to protect sensitive internal electronic components.

FAQ

What does the 15 suffix represent in this model code?
The 15 suffix indicates the measurement configuration is set for XY dual vibration, allowing the monitor to process two orthogonal vibration signals simultaneously.

Is this module compatible with standard proximity probes?
Yes, this model is configured for use with standard Bently Nevada proximity probes and their associated Proximitor sensors.
