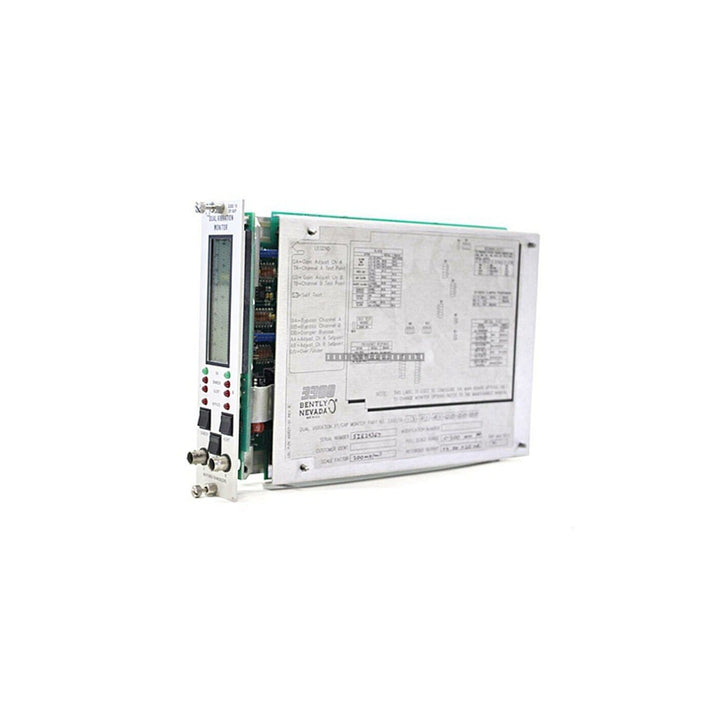

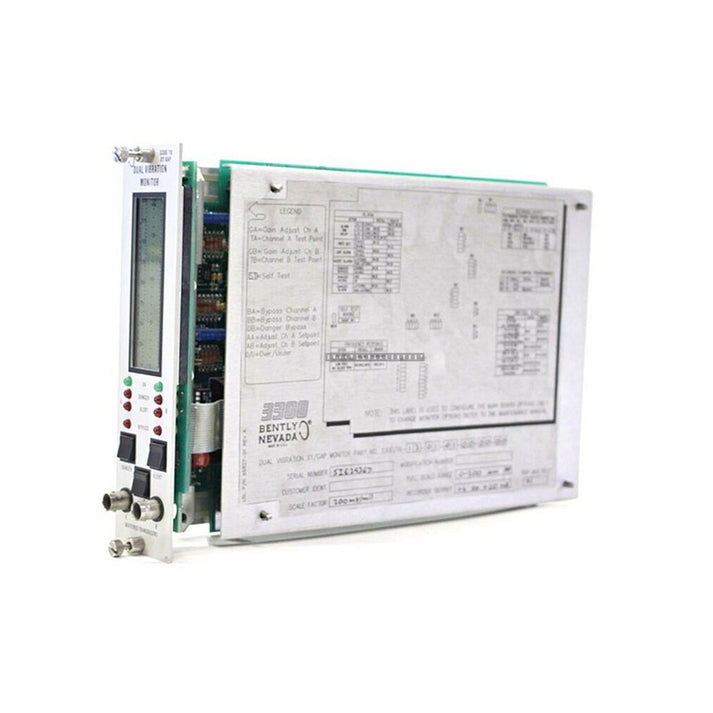

Bently Nevada 3300/16-11-01-01-00-00-00 Dual Vibration Monitor

Bently Nevada 3300/16-11-01-01-00-00-00 Dual Vibration Monitor

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module engineered for continuous radial shaft vibration measurement in critical rotating machinery, including turbines, compressors, and pumps. This dual-channel monitor...

26 people are viewing this right now

Availability: Low stock: 9 left

SKU: 3300/16-11-01-01-00-00-00
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 3300/16 Dual Vibration Monitor is a rack-mounted module engineered for continuous radial shaft vibration measurement in critical rotating machinery, including turbines, compressors, and pumps. This dual-channel monitor provides essential protection by comparing real-time vibration data against pre-configured Alert and Danger setpoints, facilitating both equipment safety and predictive maintenance.

Features

  • Dual-channel radial vibration monitoring for comprehensive shaft analysis.
  • Configured for proximity probe inputs via Proximitor sensors.
  • Integrated alarm logic with relay actuation for Alert and Danger conditions.

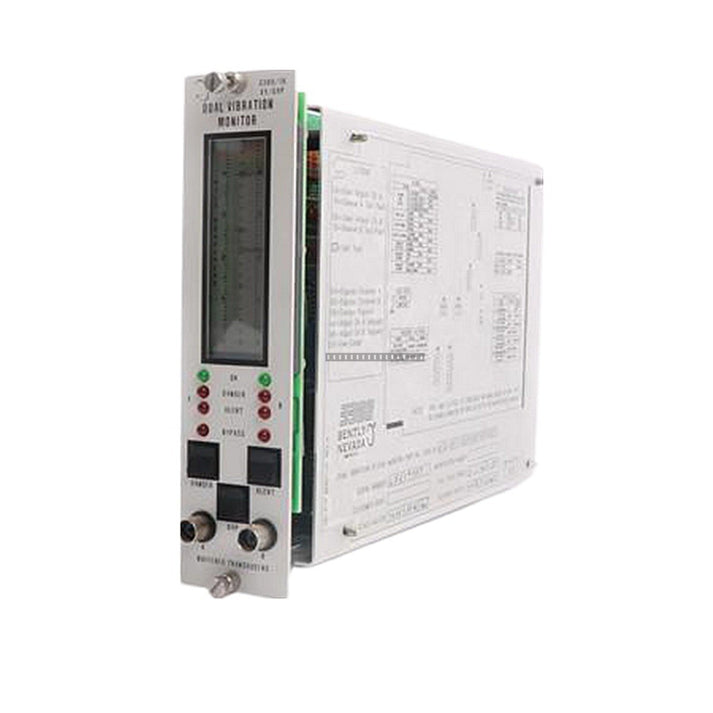

  • Front-panel LED indicators for system status: OK, Bypass, Alert, and Danger.
  • Standardized 3300 rack system compatibility.

Applications

This module is designed for use in industrial environments where monitoring shaft displacement is critical to prevent mechanical failure. Common applications include large steam and gas turbines, centrifugal compressors, and high-speed pumps where vibration trends are key indicators of machine health.

Technical Specifications

Model 3300/16-11-01-01-00-00-00
Brand Bently Nevada
Series 3300
Operating Temperature 0 to 60 deg C
Power Consumption ~1.5 W
Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Accuracy ±0.33% typical, ±1% max at 25 deg C
Analog Outputs +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the module to prevent electrical damage.
  • Ensure proper grounding of the rack system to mitigate EMI and ensure signal integrity.
  • Use shielded cabling for proximity probe inputs to minimize noise interference.
  • Verify that the module is fully seated in the rack slot and that the front-panel connectors are securely fastened.
  • Maintain adequate ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C temperature range.

FAQ

What does the 11-01-01-00-00-00 suffix indicate?

These codes define the specific configuration of your module, including the XY radial vibration setup, standard agency approval, proximity probe input compatibility, and default relay/barrier settings.

Can this module be used for non-radial vibration measurements?

The 3300/16 is specifically optimized for radial shaft vibration. For other measurement types, please consult the Bently Nevada 3300 series documentation for the appropriate module model.
