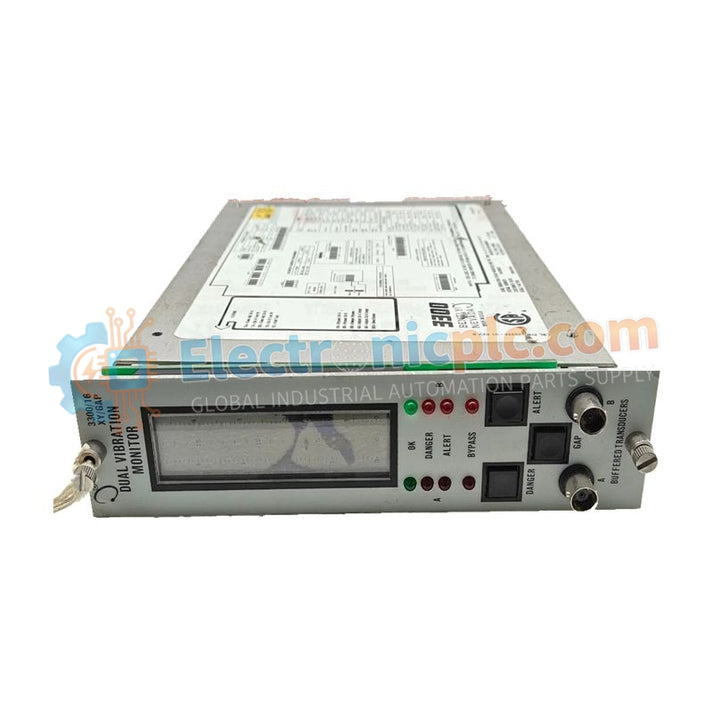

Bently Nevada 3300/16-14-01-03-00-00-00 Dual Vibration Monitor

Bently Nevada 3300/16-14-01-03-00-00-00 Dual Vibration Monitor

Product Description

The 3300/16-14-01-03-00-00-00 is a dual-channel radial vibration and shaft gap monitor for the Bently Nevada 3300 rack system. It continuously monitors radial shaft vibration and average gap voltage, providing early detection of mechanical...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3300/16-14-01-03-00-00-00
Vendor: Bently Nevada
Category: Dual Vibration Monitor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3300/16-14-01-03-00-00-00 is a dual-channel radial vibration and shaft gap monitor for the Bently Nevada 3300 rack system. It continuously monitors radial shaft vibration and average gap voltage, providing early detection of mechanical issues such as unbalance, misalignment, or bearing clearance changes.

This configuration is optimized for legacy 7200 series Proximitor sensors, with a sensitivity of 200 mV/mil and a measurement range of 0–10 mils peak-to-peak. Epoxy-sealed alarm relays ensure robust operation in harsh industrial environments.

Technical Specifications

Specification Description
Model Designation 3300/16
Full Order Code 3300/16-14-01-03-00-00-00
Measurement Function Dual-channel radial vibration & shaft gap monitoring
Full-Scale Range 0–10 mils peak-to-peak (pp)
Transducer Compatibility Bently Nevada 7200 Series Proximitor (200 mV/mil)
Frequency Response 10 Hz – 1 kHz
Analog Output 4–20 mA DC per channel for PLC/DCS integration
Relay Protection Epoxy-sealed Alert and Danger relays (Option -03)
Input Voltage 24 VDC (via system backplane)
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Weight 1.5 kg

Application Scenarios

  • Legacy Turbine Supervisory Instrumentation (TSI) in power plants, pumping stations, and refineries

  • Monitoring centrifugal compressors and large fans

  • Bridging older 7200 series sensors with modern 4–20 mA control systems

  • Ideal for harsh environments or non-climate-controlled rack installations

Hardware Compatibility FAQ

Why is 200 mV/mil sensitivity important?

  • Ensures accurate 0–10 mils monitoring when using legacy 7200 series Proximitor sensors. Using sensors with different scale factors requires verification of gap voltage and linearity to maintain measurement accuracy.

What does the epoxy-sealed relay option provide?

  • Protects the relays from moisture and atmospheric contaminants, increasing reliability in harsh or industrial settings.
