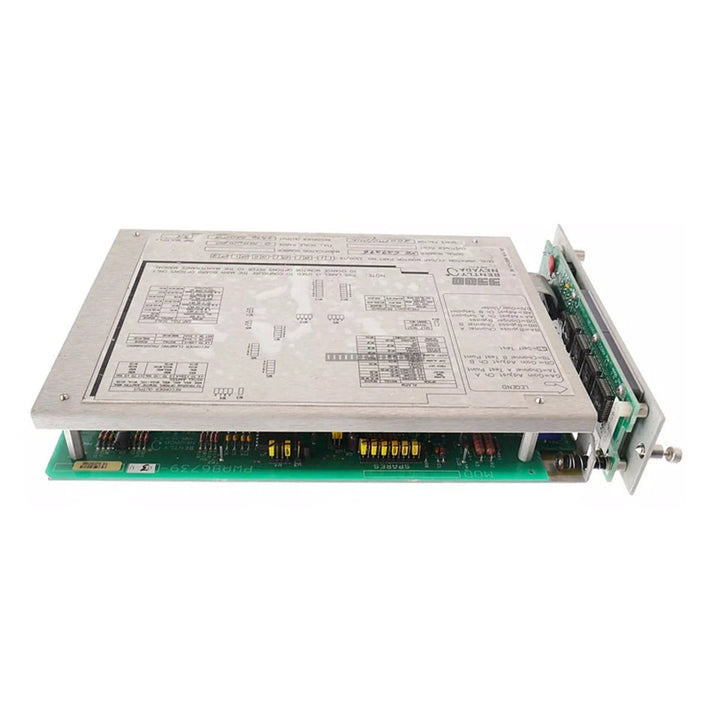

Bently Nevada 3300/20-11-01-01-00-02 Dual Thrust Monitor

Bently Nevada 3300/20-11-01-01-00-02 Dual Thrust Monitor

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a rack-mounted module designed for precise axial thrust position measurement in critical rotating machinery, including turbines and compressors. This module provides continuous...

19 people are viewing this right now

Availability: Low stock: 7 left

SKU: 3300/20-11-01-01-00-02
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a rack-mounted module designed for precise axial thrust position measurement in critical rotating machinery, including turbines and compressors. This module provides continuous monitoring of axial displacement, allowing for early detection of bearing wear or mechanical failure to support predictive maintenance strategies and minimize unplanned downtime.

Features

  • Dual-channel axial thrust monitoring configuration.
  • Continuous comparison of measured parameters against user-defined Alert and Danger alarm setpoints.
  • Integrated relay outputs for automated alarm and trip logic.
  • Front-panel LED indicators providing status for OK, Bypass, Alert, and Danger conditions.
  • Configured for compatibility with standard proximity probes and Proximitor sensors.

Applications

This monitor is specifically engineered for use within the Bently Nevada 3300 monitoring system, serving as a primary protection component for large rotating equipment where axial position integrity is critical to machine health.

Technical Specifications

Model 3300/20-11-01-01-00-02
Product Type Dual Thrust Monitor
Operating Temperature 0 to 60 degC
Power Consumption 1.5 W (typical)
Input Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy +/- 0.33% typical (+/- 1% max at 25 degC)
Current Output +4 to +20 mA (+/- 0.7% accuracy)
Voltage Output +1 to +5 VDC or 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
  • Verify that the module is correctly seated in the rack slot to ensure proper backplane communication.
  • Use shielded cabling for all transducer inputs to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the 3300 rack system in accordance with standard industrial instrumentation practices.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What does the 11 suffix represent in this model?

The 11 suffix indicates the measurement option configured for dual-channel thrust monitoring, which allows the module to process two axial displacement signals simultaneously.

Is this module compatible with standard proximity probes?

Yes, the 01 transducer input option is specifically configured to accept signals from standard proximity probes paired with Proximitor sensors.
