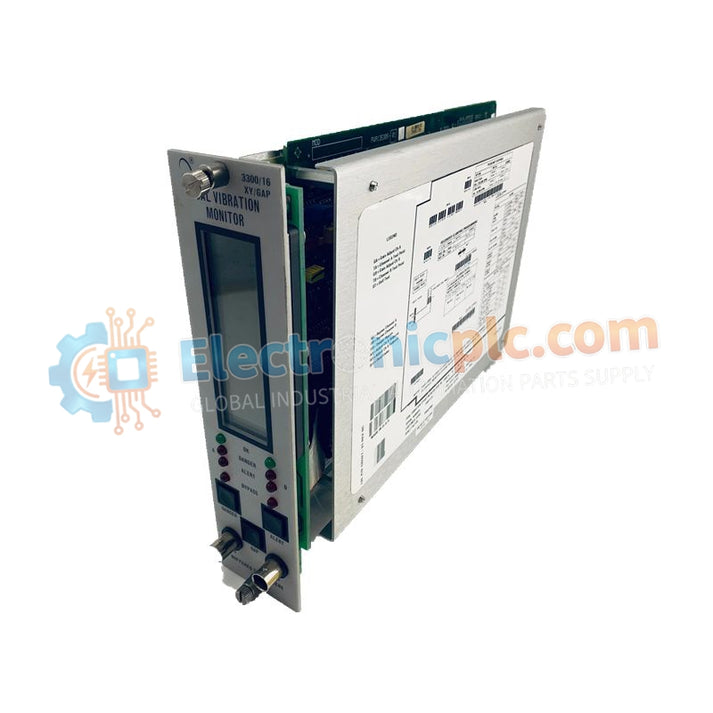

Bently Nevada 3300/16-15-01-01-00-00-01 Dual Vibration Monitor

Bently Nevada 3300/16-15-01-01-00-00-01 Dual Vibration Monitor

Product Description

The 3300/16-15-01-01-00-00-01 is a dual-channel radial vibration and shaft position monitor within the Bently Nevada 3300 rack system. It converts signals from proximity probes into precise displacement measurements, enabling real-time detection of imbalance,...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 3300/16-15-01-01-00-00-01
Vendor: Bently Nevada
Category: Dual Vibration Monitor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 3300/16-15-01-01-00-00-01 is a dual-channel radial vibration and shaft position monitor within the Bently Nevada 3300 rack system. It converts signals from proximity probes into precise displacement measurements, enabling real-time detection of imbalance, misalignment, or bearing wear.

This module is optimized for 0–10 mils peak-to-peak full-scale range, making it ideal for large fluid-film bearing machines such as steam turbines, centrifugal compressors, and industrial fans. With a response latency under 1 millisecond, it ensures rapid trip signals to prevent catastrophic equipment damage.

Technical Specifications

Specification Description
Model Designation 3300/16
Full Order Code 3300/16-15-01-01-00-00-01
Primary Function Radial shaft vibration and axial position monitoring
Full-Scale Measurement 0–10 mils peak-to-peak (pp)
Input Channels Two independent channels for Proximitor sensors
Transducer Compatibility Bently Nevada 3300 (5mm) & 3300 XL (8mm) Proximity Probes
Proximitor Supply -17.5 VDC to -26 VDC with non-incendive protection
Analog Output 4–20 mA DC for PLC/DCS integration
System Latency <1 ms for alarm/trip activation
Power Consumption Max 12 mA per transducer
Operating Temperature -40°C to +85°C
Dimensions 5.8 × 20.3 × 2.5 cm
Weight 1.0 kg

Application Scenarios

  • Turbine Supervisory Instrumentation (TSI) in power plants

  • Oil refineries and chemical processing facilities

  • Monitoring fluid-film bearing machines, including large centrifugal compressors, steam turbines, and industrial fans

  • Critical for early detection of radial shaft movement to prevent equipment failure

Technical FAQ

Can this module work with older 7200 series Proximitor sensors?

  • Yes. It is backward compatible, provided the scale factor (mV/mil) is correctly calibrated to match the monitor’s input range.

How does supply voltage affect measurement accuracy?

  • Designed for a -24 V supply. Operating above -23 V may reduce the linear range of the proximity probe and affect high-vibration measurement accuracy.
