Description

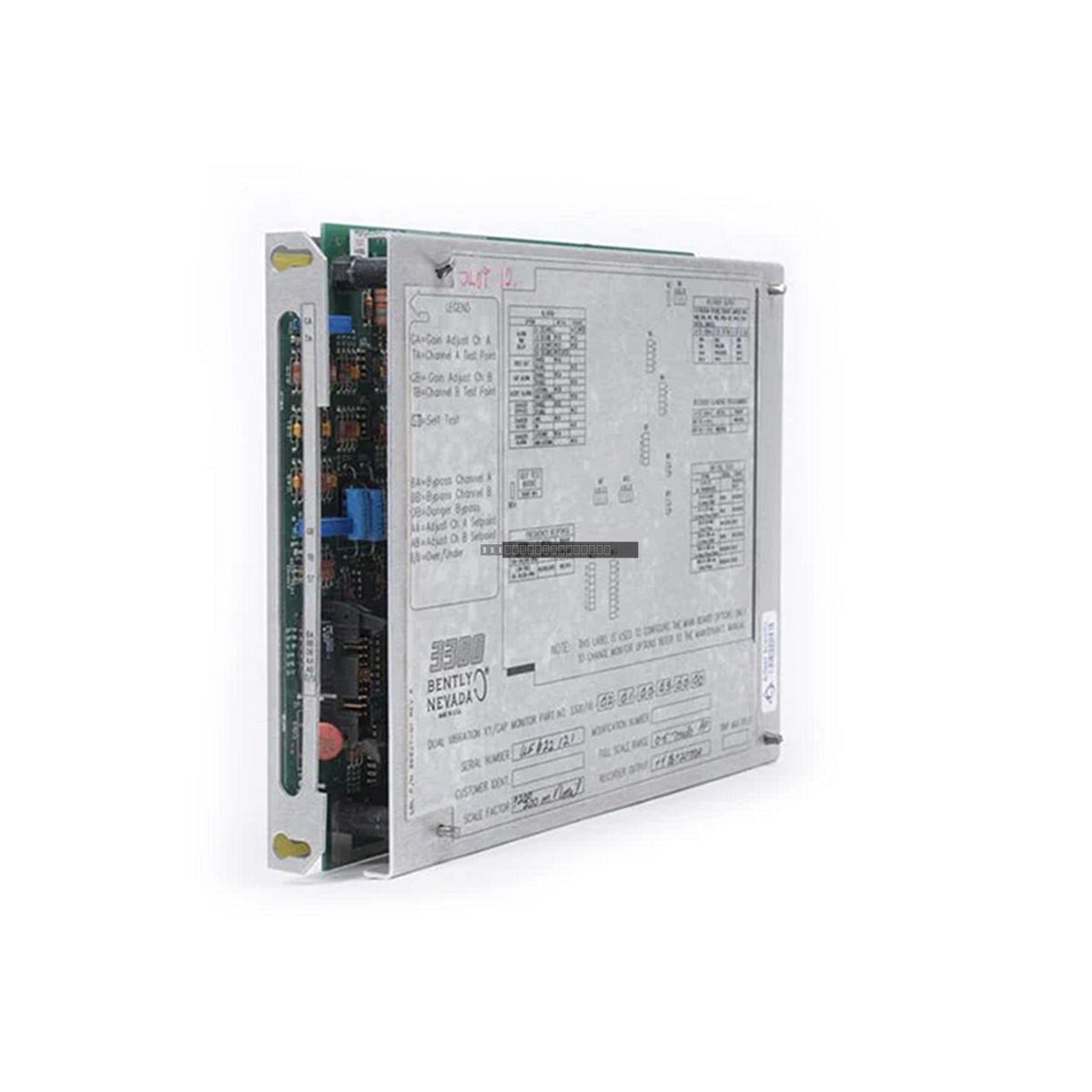

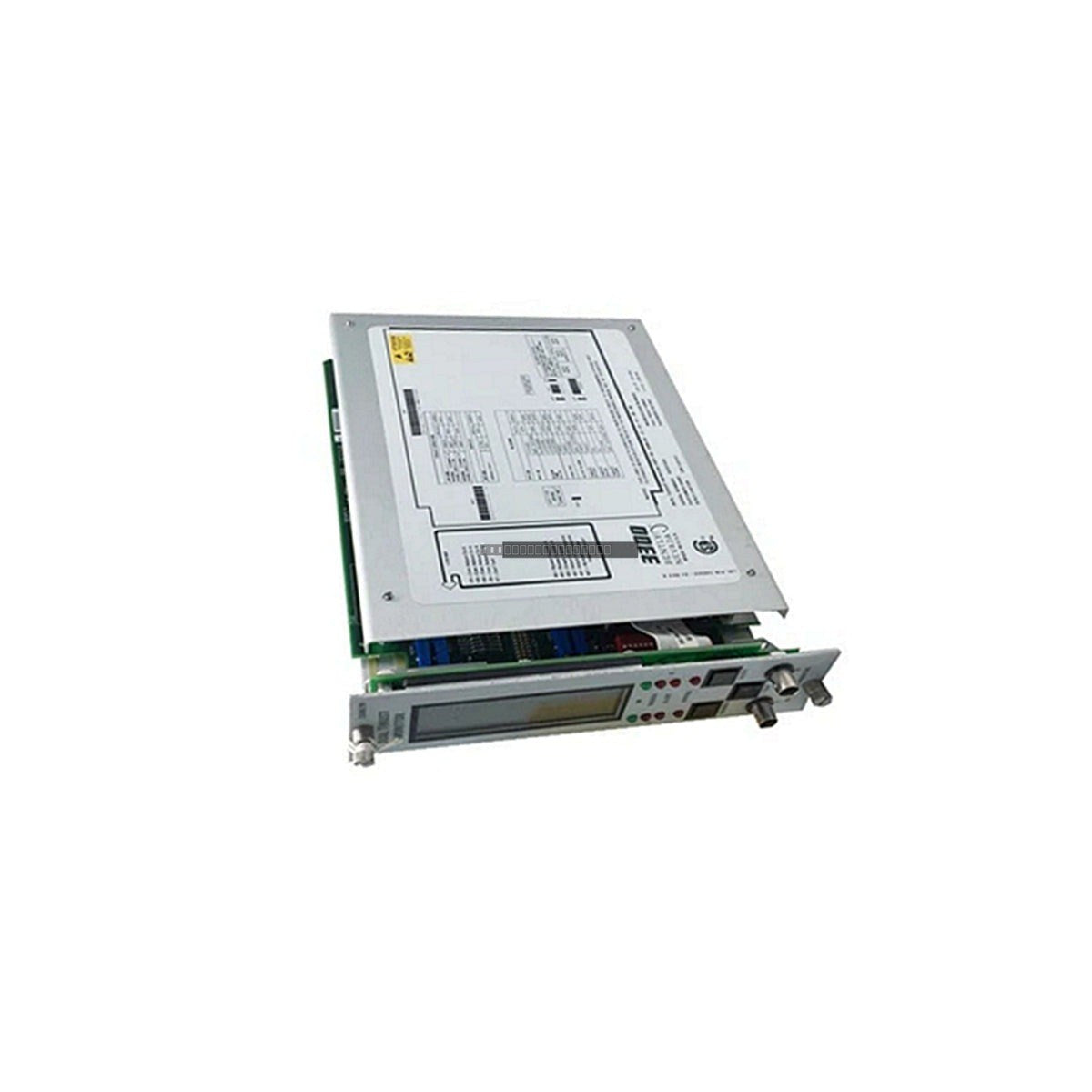

The Bently Nevada 3300/55 Dual Velocity Monitor is a high-performance, rack-mounted module within the 3300 Series monitoring system. This unit is engineered to measure casing vibration velocity by interfacing with Velomitor piezo-velocity sensors. It provides two independent channels of continuous monitoring, comparing real-time vibration data against pre-configured alarm setpoints to ensure the operational integrity of critical rotating machinery, including turbines, compressors, motors, and pumps.

Features

• Dual-channel velocity measurement for comprehensive casing vibration monitoring.
• Direct compatibility with Velomitor piezo-velocity sensors.
• Integrated relay outputs for Alert and Danger alarm conditions.
• Proportional 4–20 mA outputs for integration with external control systems.

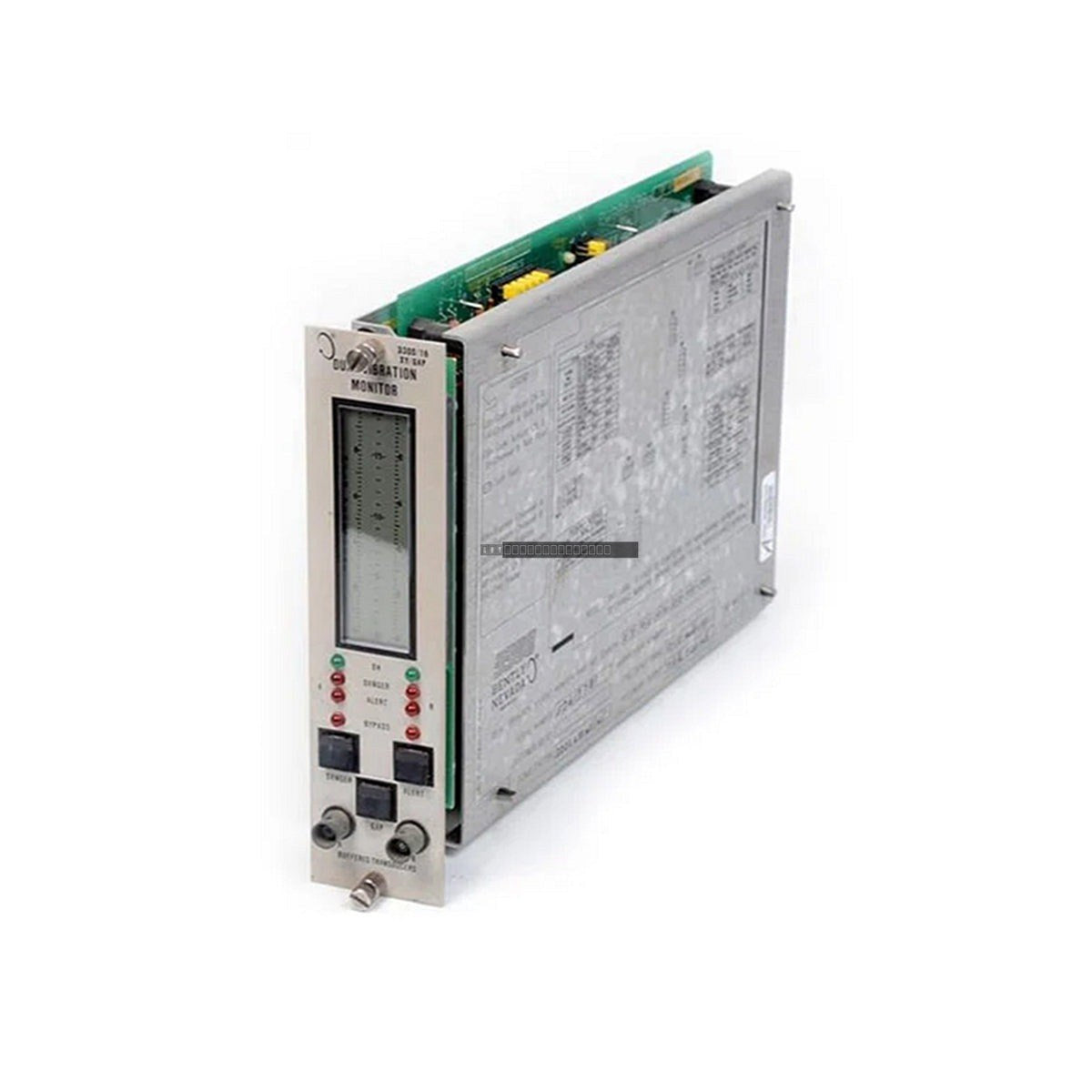

• Front-panel LED indicators providing status for OK, Bypass, Alert, and Danger conditions.
• Designed for integration into the standard Bently Nevada 3300 rack environment.

Applications

This monitor is primarily utilized in industrial environments where casing vibration monitoring is critical for asset protection. Common applications include the monitoring of centrifugal pumps, gas and steam turbines, large electric motors, and centrifugal compressors to detect mechanical degradation or imbalance before failure occurs.

Technical Specifications

Installation Guidelines

• Ensure the 3300 rack is powered down before inserting or removing the monitor module to prevent electrical damage.
• Verify that the module is fully seated in the rack slot and that the front-panel screws are tightened to ensure proper grounding and mechanical stability.
• Use shielded twisted-pair cabling for transducer inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain adequate ventilation around the 3300 rack to ensure the operating temperature remains within the 0 degC to +60 degC range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.

FAQ

What is the primary function of the 3300/55 module?

The 3300/55 is a Dual Velocity Monitor designed to measure casing vibration velocity using piezo-velocity sensors. It protects machinery by triggering alarms when vibration levels exceed defined thresholds.

Can this module be used for intrinsic safety applications?

This specific model (3300/55-01-04-12-12-00-00-05-01) is configured with a '00' barrier option, meaning it does not include internal intrinsic safety barriers. Ensure your installation environment meets the requirements for non-intrinsically safe equipment.

What do the LED indicators on the front panel represent?

The LEDs provide immediate visual feedback on the module's health and the status of the monitored machinery, specifically indicating OK (sensor/module health), Bypass (maintenance mode), Alert, and Danger conditions.
