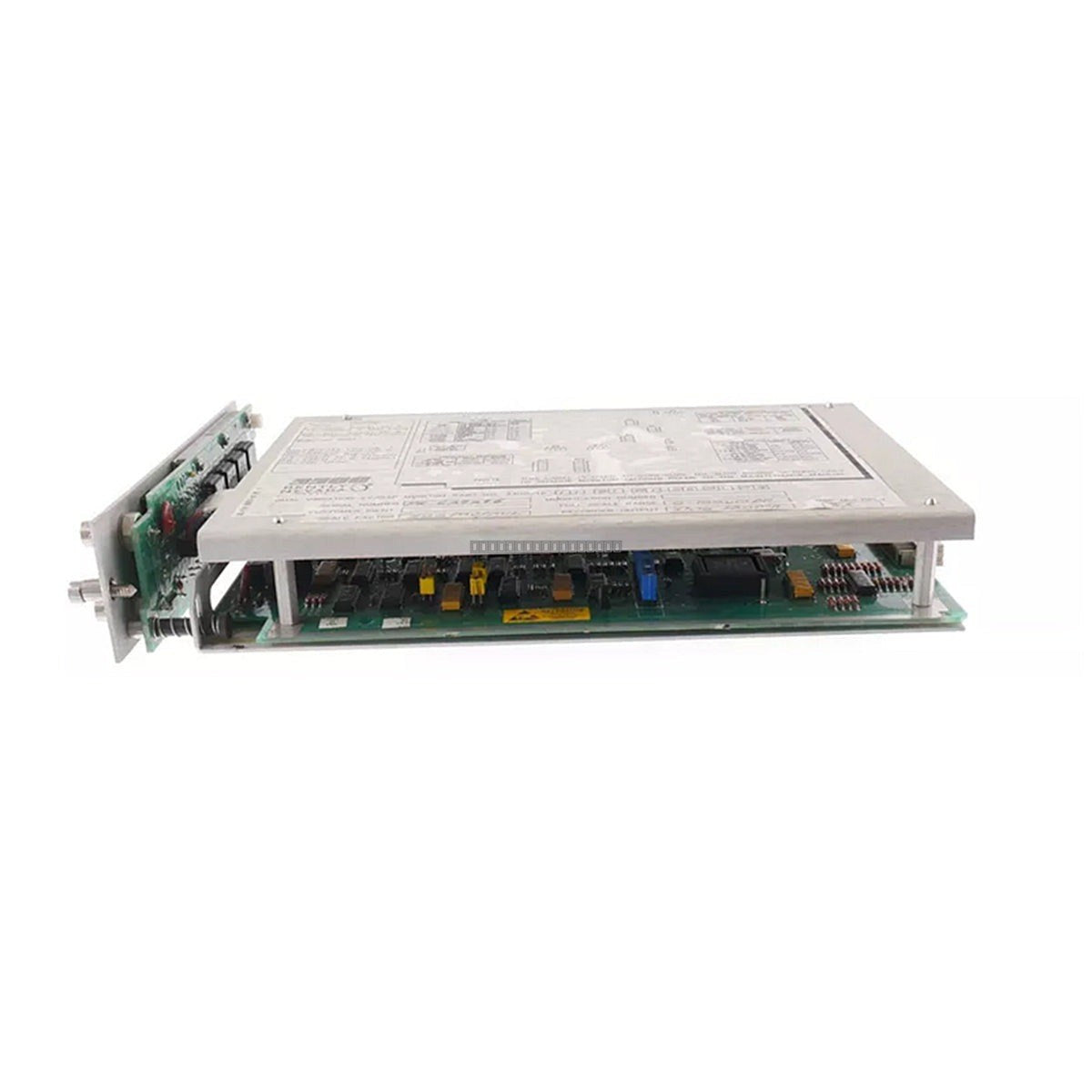

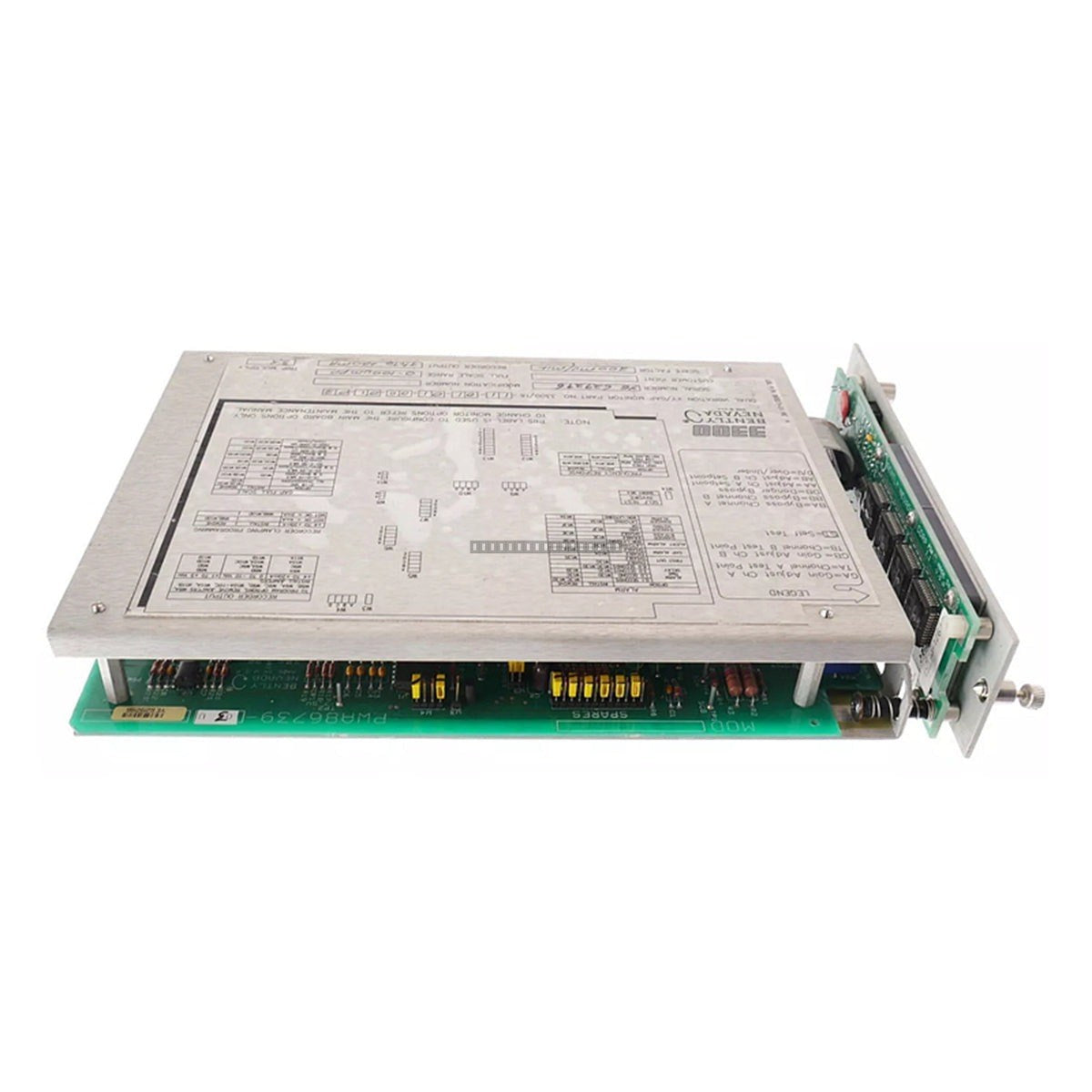

Bently Nevada 3300/46-XX-XX-01-00 Differential Expansion Monitor

Bently Nevada 3300/46-XX-XX-01-00 Differential Expansion Monitor

Description

The Bently Nevada 3300/46 Differential Expansion Monitor is a rack-mounted module designed to measure the relative expansion between a turbine rotor and its casing. This measurement is critical in steam...

22 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3300/46-XX-XX-01-00
Vendor: Bently Nevada
Category: Differential Expansion Monitor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3300/46 Differential Expansion Monitor is a rack-mounted module designed to measure the relative expansion between a turbine rotor and its casing. This measurement is critical in steam turbines and other large rotating machinery where thermal growth can cause mechanical interference. The monitor continuously compares expansion values against alarm setpoints, providing early warning of abnormal conditions and protecting equipment from damage.

Features

  • Measures differential expansion between rotor and casing
  • Continuous parameter comparison against alarm setpoints
  • Relay actuation for Alert and Danger conditions
  • LED indicators for OK, Bypass, Alert, and Danger status
  • Compatible with standard proximity probe inputs via Proximitor sensors

Technical Specifications

Model 3300/46-XX-XX-01-00
Brand Bently Nevada
Series 3300
Operating Temperature 0 to 60 degC
Power Consumption 1.5 W
Sensitivity 200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy +/- 0.33% typical, +/- 1% max at 25 degC
Output Signals +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC

Installation Guidelines

  • Ensure the 3300 rack is properly grounded to a clean earth point to minimize electrical noise.
  • Always power down the rack before inserting or removing the monitor module to prevent damage to the backplane connectors.
  • Use shielded cables for all transducer inputs to protect against EMI in industrial environments.
  • Verify that the probe configuration matches the specific module suffix settings for accurate measurement.
  • Ensure adequate ventilation within the cabinet to maintain the operating temperature range of 0 to 60 degC.

FAQ

What is the primary function of the 3300/46 monitor?

This module is designed to monitor the differential expansion between the rotor and the casing of rotating machinery, such as steam turbines, to prevent mechanical interference caused by thermal growth.

Does this module include relay outputs?

Yes, the 01 suffix indicates a single relay output configuration for Alert and Danger alarm conditions.

What type of sensors does this module support?

It is designed to accept inputs from proximity probes via Proximitor sensors.
