The Bently Nevada 3300/10-02-02-00 is the foundational power conversion module for the 3300 Machinery Protection System. This high-reliability power supply is designed to occupy the far-left position in a 3300 rack, converting primary facility AC power into the regulated DC voltages required...
Availability: Low stock: 10 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

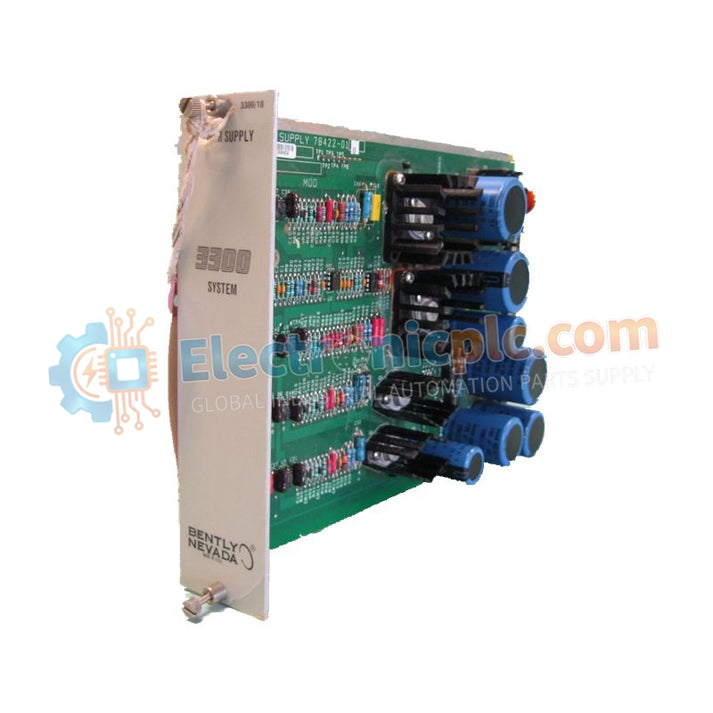

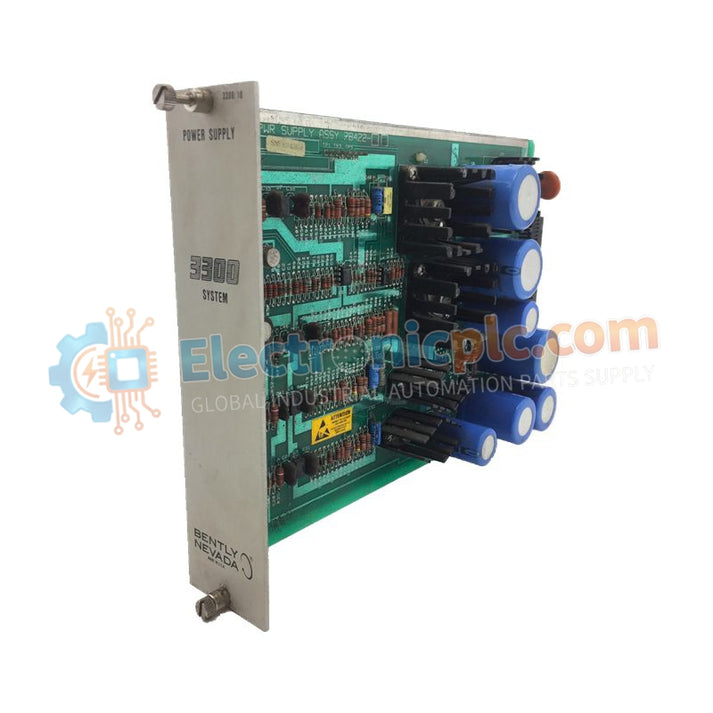

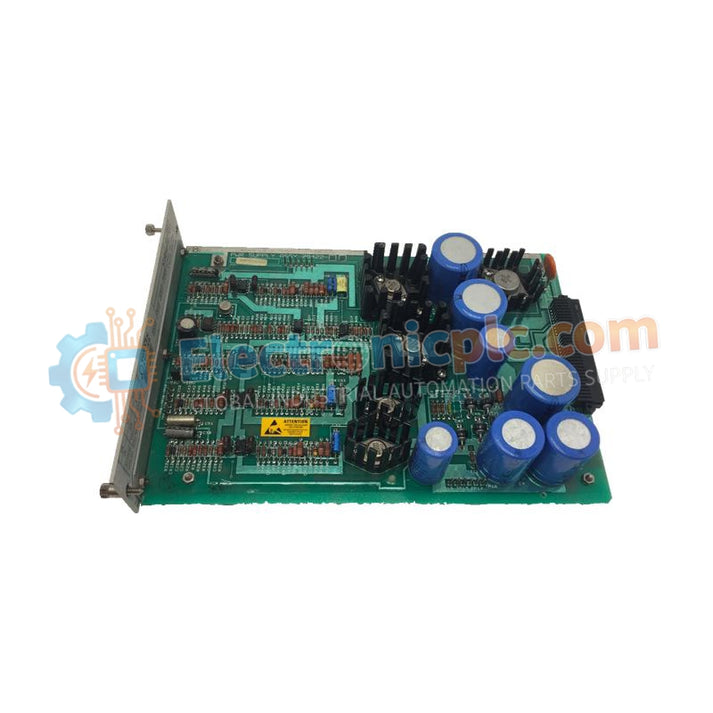

The Bently Nevada 3300/10-02-02-00 is the foundational power conversion module for the 3300 Machinery Protection System. This high-reliability power supply is designed to occupy the far-left position in a 3300 rack, converting primary facility AC power into the regulated DC voltages required by the backplane to power monitoring cards and proximity transducers.
Built for mission-critical industrial environments, the 3300/10-02-02-00 incorporates advanced line filtering and surge suppression to protect sensitive monitoring electronics from grid fluctuations. This configuration is optimized for high-voltage AC inputs (220 VAC) and includes an integrated Power Input Module (PIM) that provides a secure, fused connection point for field wiring, ensuring that power transients do not compromise system integrity or signal reliability.
| Specification | Details |
|---|---|
| Model Number | 3300/10-02-02-00 |
| Module Type | AC Power Supply with Power Input Module (PIM) |
| Input Voltage Option | 175 to 250 VAC (Nominal 220 VAC), 50/60 Hz |
| Output Voltages | Regulated ±24 VDC and +5 VDC (System Backplane Voltages) |
| Power Capacity | Sufficient to drive a fully populated 3300 rack (up to 12 monitoring modules) |
| Input Connector Option | Standard AC Power Input Module with Fuse Protection |
| Agency Approval Option | Standard Non-Hazardous / CSA/NRTL/C (General Purpose) |
| Protection Features | Over-voltage protection, short-circuit current limiting, and EMI filtering |
| Isolation | Galvanic isolation between primary AC input and DC secondary outputs |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
The 3300/10-02-02-00 is the primary power source for 3300 racks used in power plants, oil refineries, and gas processing facilities. It is essential for any facility using 220V/240V mains power to energize their vibration, thrust, and temperature monitoring systems.
Although the 3300 system is robust, it is highly recommended to de-energize the primary AC source before removing or installing the 3300/10-02-02-00 power supply to prevent arcing and ensure technician safety.
Yes, the "-02" option in the configuration code specifies the inclusion of the Power Input Module designed for the 175–250 VAC range.
First, verify the primary AC input at the PIM terminals. If power is present, check the user-replaceable fuse located on the PIM. If the fuse is intact and the LED remains off, the internal power conversion has likely failed.
