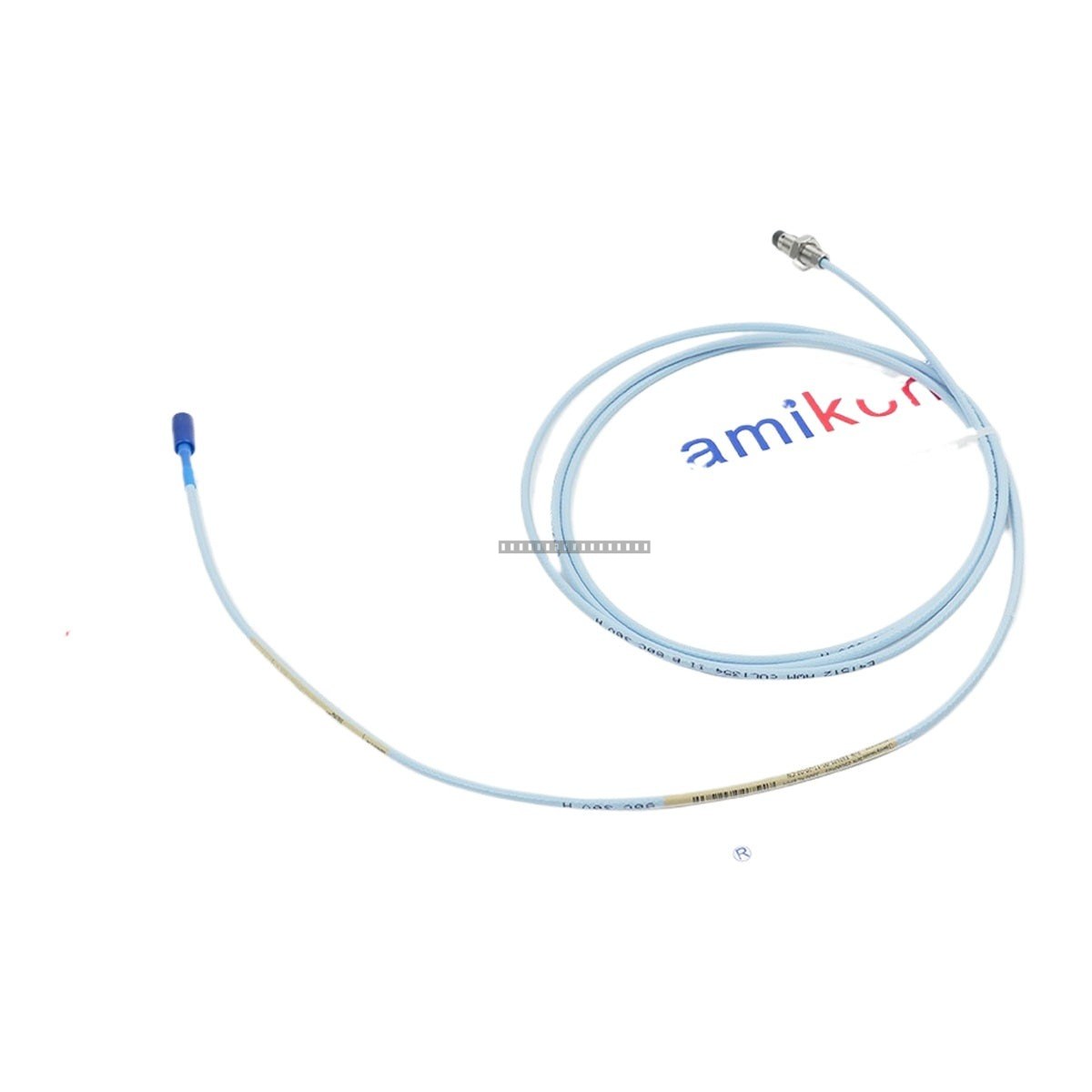

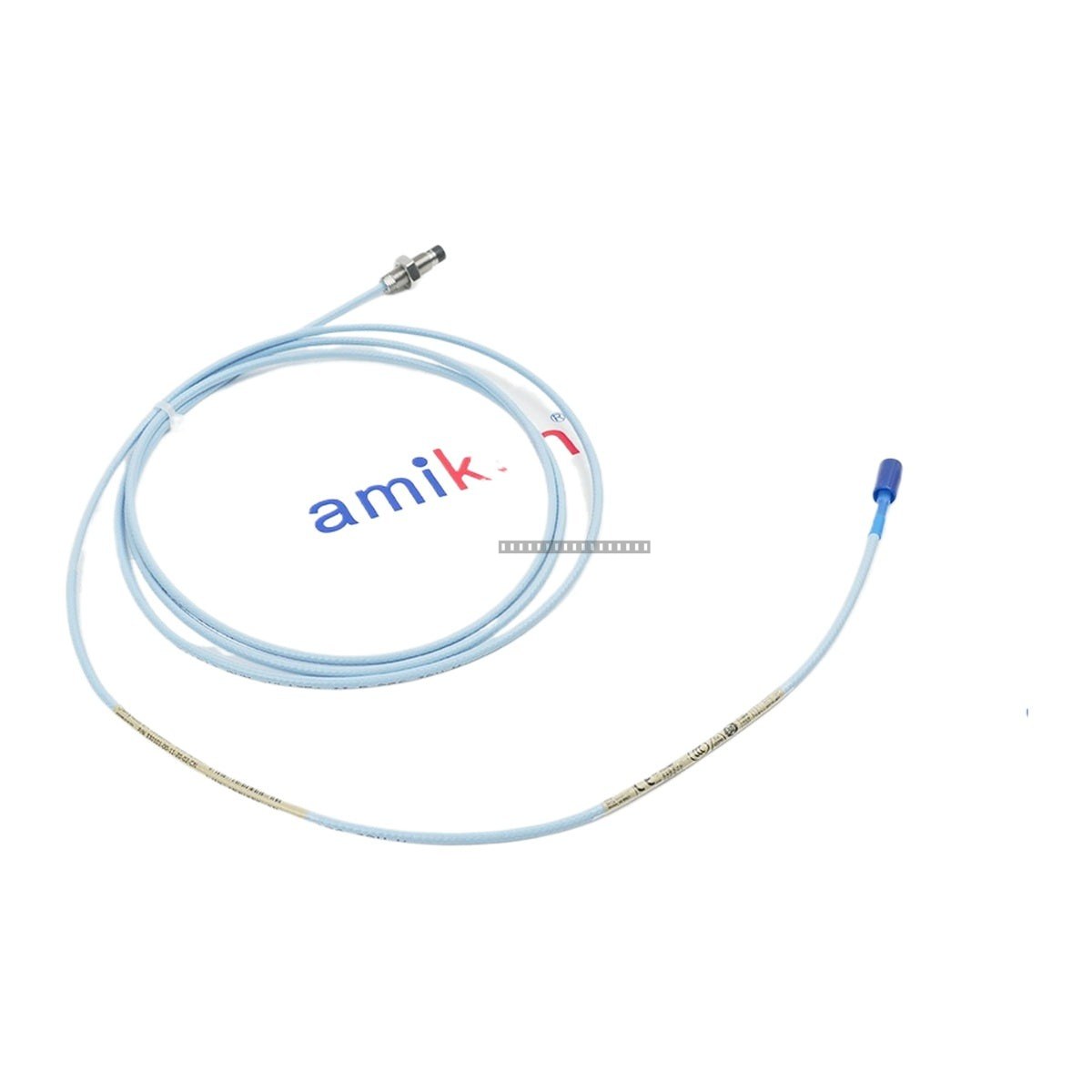

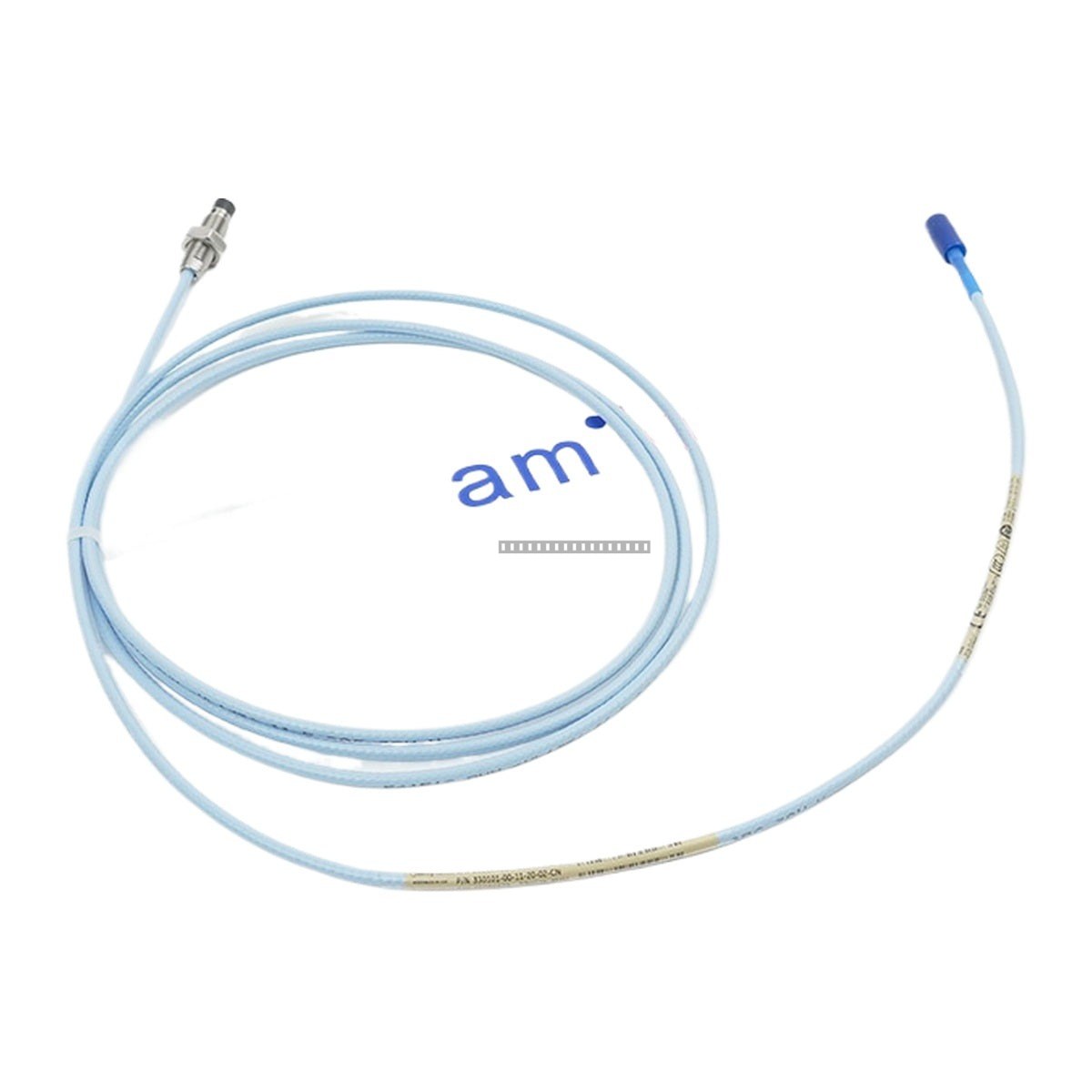

Bently Nevada 330101-00-11-20-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-11-20-02-CN 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-11-20-02-CN is a 3300 XL 8 mm proximity probe designed for use within eddy current proximity transducer systems. This probe provides precise measurement of shaft vibration and...

22 people are viewing this right now

Availability: Low stock: 3 left

SKU: 330101-00-11-20-02-CN
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 330101-00-11-20-02-CN is a 3300 XL 8 mm proximity probe designed for use within eddy current proximity transducer systems. This probe provides precise measurement of shaft vibration and position in rotating machinery, ensuring compatibility with the 3300 XL series monitoring systems.

Features

  • 8 mm probe diameter with 3/8-24 UNF thread
  • Miniature coaxial ClickLoc connector for secure, reliable signal transmission
  • Standard cable configuration with 2.0 meter total length
  • Designed for complete interchangeability with 3300 XL series probes, extension cables, and Proximitor sensors
  • Complies with API 670 standards for mechanical configuration, linear range, and accuracy
  • Hazardous area approvals including CSA, ATEX, and IECEx

Applications

  • Turbines: Monitoring shaft vibration and axial thrust in gas and steam turbines
  • Compressors: Centrifugal, axial, and reciprocating compressor monitoring
  • Motors and Generators: Assessing stability and bearing health
  • Pumps: Dynamic vibration and shaft position monitoring for high-energy pumps
  • Gearboxes: Tracking internal shaft movement and speed for wear detection

Technical Specifications

Model 330101-00-11-20-02-CN
Probe Diameter 8 mm
Thread Size 3/8-24 UNF
Minimum Unthreaded Length 0.0 in
Minimum Case Length 1.1 in
Cable Length 2.0 meters (6.6 feet)
Connector Type Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx
Target Material Factory-calibrated for AISI 4140 steel

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false readings.
  • The probe is factory-calibrated for AISI 4140 steel; using different target materials will require recalibration of the scale factor.
  • For radial vibration applications, the recommended gap setting is 1.27 mm (50 mils), corresponding to approximately -9 Vdc.
  • ClickLoc connectors should be tightened until they audibly "click" to ensure a secure lock.
  • Handle with care to avoid damage to the probe tip or cable insulation.
  • Always power down the monitoring system before connecting or disconnecting transducer components.

FAQ

What is this product?

It is a Bently Nevada 3300 XL 8mm Proximity Probe, used in Proximity Transducer Systems (PTS) for monitoring machine vibration and position.

What is the typical gap voltage for this sensor?

The gap voltage for a 3300 XL probe system is typically set at -10 VDC. The linear range generally operates between -2 VDC and -18 VDC.
