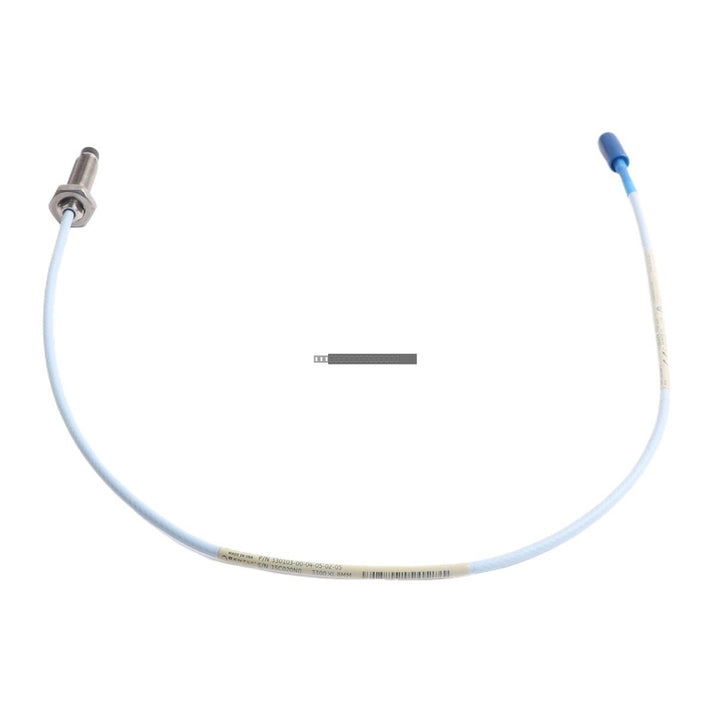

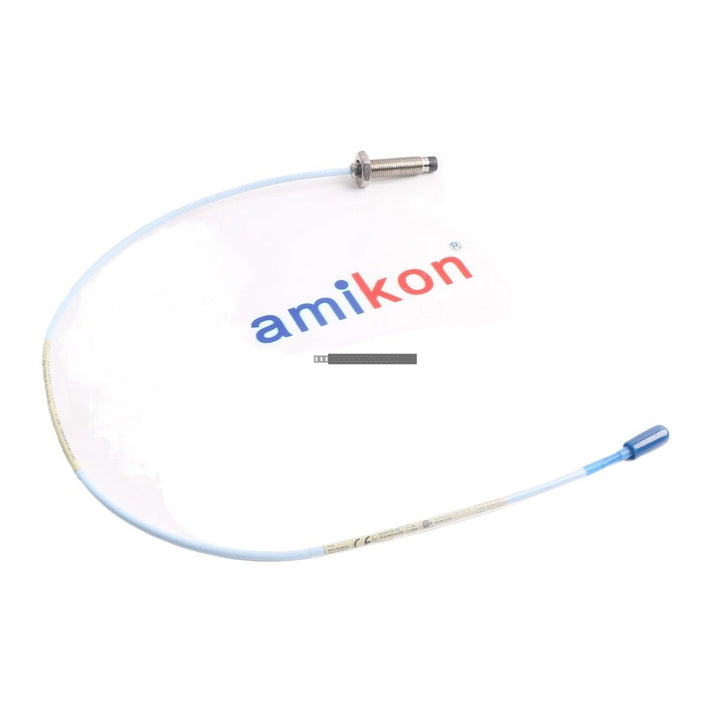

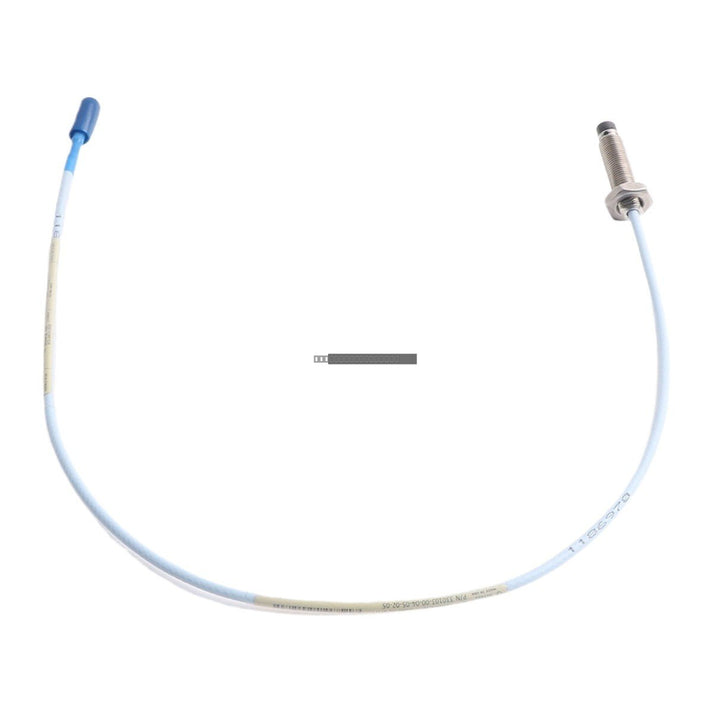

Bently Nevada 330103-00-04-05-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-04-05-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-04-05-02-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position measurement. This probe is a critical component of the 3300 XL...

22 people are viewing this right now

Availability: In stock

SKU: 330103-00-04-05-02-05
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 330103-00-04-05-02-05 is a high-performance 3300 XL 8 mm proximity probe designed for non-contact vibration and position measurement. This probe is a critical component of the 3300 XL transducer system, providing reliable data for monitoring shaft displacement, vibration, and speed in industrial rotating machinery.

Features

  • Compliant with API 670 standards for mechanical configuration, linear range, and accuracy.
  • Patented TipLoc and CableLoc designs ensure a robust bond and high pull strength (330 N / 75 lbf).
  • Miniature coaxial ClickLoc connector with gold-plated, corrosion-resistant contacts.
  • Improved RFI/EMI immunity for reliable operation in harsh electromagnetic environments.
  • Fully interchangeable and backward compatible with 3300 series 5 mm and 8 mm system components.

Applications

  • Power Generation: Monitoring steam and gas turbine shafts and large generator sets.
  • Oil & Gas: Tracking high-load centrifugal compressors, multi-stage pumps, and expanders.
  • Hydroelectric: Monitoring turbine setups with wide clearance requirements.
  • Heavy Manufacturing: Asset protection for steel rolling mills, paper mill rollers, and mining machinery.

Technical Specifications

Model 330103-00-04-05-02-05
Probe Diameter 8 mm
Thread Size M10 x 1
Unthreaded Length 0 mm
Case Length 40 mm
Total Length 0.5 meter
Connector Type Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx

Installation Guidelines

  • Ensure the M10 x 1 threaded body is screwed cleanly into the mounting bracket or housing.
  • Maintain a minimum clear radius of 30 mm (1.2 in) around the probe tip to prevent interference.
  • Observe the metal-free zone requirements to avoid distortion of the eddy-current RF field.
  • Space adjacent probe tips at least 40 mm (1.6 in) apart to prevent signal crosstalk.
  • Handle with care to avoid damage to the probe tip; ensure the system is powered down before connecting or disconnecting cables.

FAQ

What is the primary function of this probe?
It provides continuous, non-contact measurement of static parameters like shaft position and dynamic parameters like shaft vibration using the eddy current principle.

Does this probe require an extension cable?
Yes, because the probe cable length is 0.5 meters, it must be used with a compatible 3300 XL extension cable to reach the Proximitor sensor.

What is the sensitivity of the 3300 XL 8 mm system?
The system provides a standard scale factor sensitivity of 200 mV/mil (7.87 V/mm).
