Description

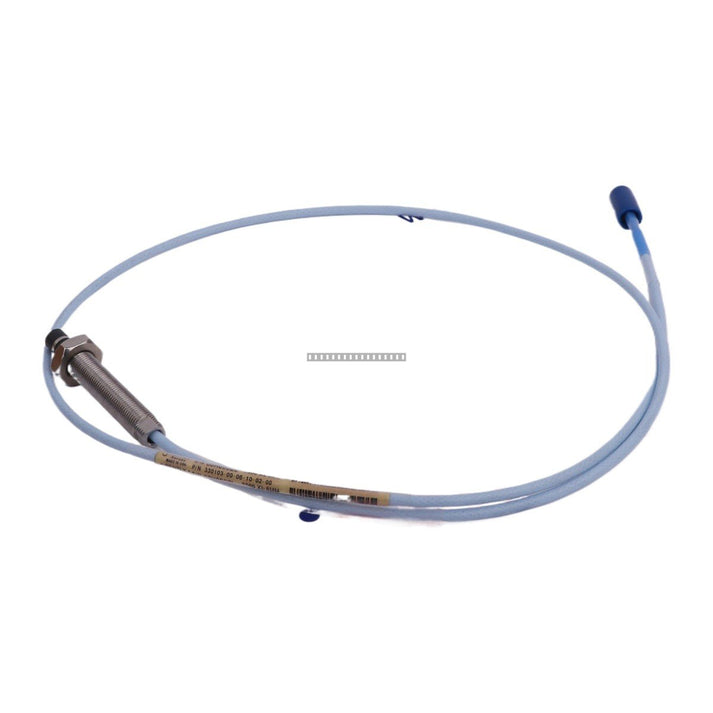

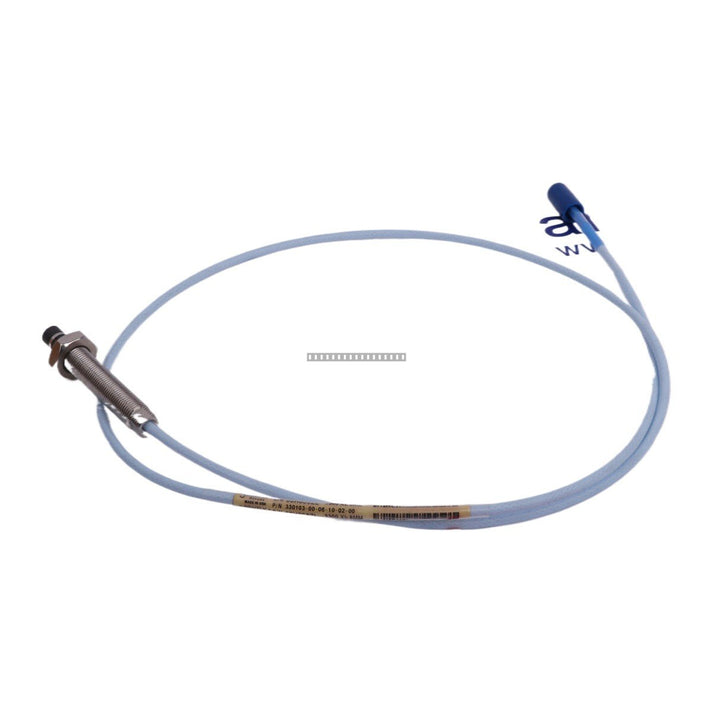

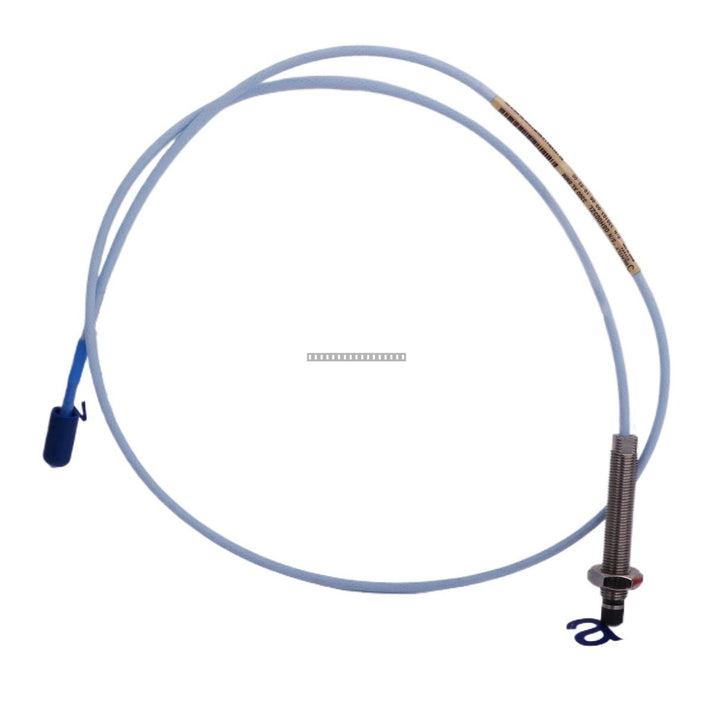

The Bently Nevada 330103-00-06-10-02-00 is a 3300 XL 8 mm proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. This probe is part of the Bently Nevada 3300 XL transducer system, which provides reliable, non-contact measurement of shaft displacement, position, and speed in critical assets such as turbines, compressors, and pumps.

Features

• 8 mm probe tip diameter for standard eddy current proximity sensing.
• M10 x 1 thread configuration for secure mounting in probe housings.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable construction with a total length of 1.0 meter (3.3 feet).
• Designed for harsh industrial environments with robust material construction.
• Zero minimum unthreaded length and 60 mm minimum case length configuration.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a rigid, vibration-free mounting bracket to prevent measurement errors.
• Maintain proper gap distance between the probe tip and the target surface as specified in the 3300 XL system manual.
• Use caution when tightening the M10 threads to avoid damaging the probe housing or internal components.
• Route coaxial cables away from high-voltage power lines or sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure all ClickLoc connectors are fully seated and locked to prevent intermittent signal loss.
• Handle the probe tip with care; any physical damage or scratches to the tip can affect the accuracy of the proximity measurement.

FAQ

What is the primary function of the 330103 probe?

This probe is a non-contact eddy current sensor used to measure the dynamic and static position of a rotating shaft relative to the probe mounting location, commonly used for vibration analysis and axial position monitoring.

Is this probe compatible with standard 3300 XL extension cables?

Yes, the 330103-00-06-10-02-00 is designed to integrate with the standard Bently Nevada 3300 XL transducer system components, including compatible extension cables and proximitors.
