Description

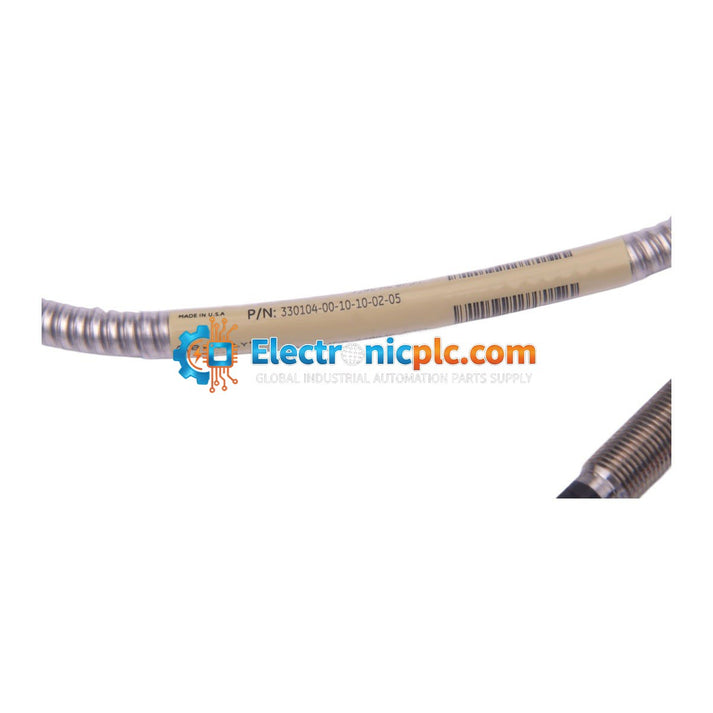

The Bently Nevada 330104-00-10-10-02-05 is a high-performance 3300 XL 8 mm proximity probe designed for vibration and position monitoring in industrial rotating machinery. As a critical component of the Bently Nevada 3300 XL transducer system, this probe provides precise, non-contact measurement of shaft displacement, position, and speed. The 3300 XL system is engineered for harsh industrial environments, ensuring reliable signal integrity and long-term stability in demanding applications.

Features

• 8 mm probe tip diameter for standard radial vibration and thrust measurements.
• M10 x 1 thread configuration for secure mounting.
• Integrated armor for enhanced cable protection in industrial settings.
• Features the reliable ClickLoc miniature coaxial connector for secure, low-noise signal transmission.
• Standard cable construction with a total length of 1.0 meter.
• Certified for hazardous locations including CSA, ATEX, and IECEx approvals.

Applications

This proximity probe is widely used in power generation, oil and gas, and petrochemical industries for monitoring critical rotating equipment such as steam turbines, gas turbines, centrifugal compressors, and large motors. It is essential for detecting shaft wear, misalignment, and vibration patterns that indicate potential mechanical failure.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid bracket to prevent mechanical resonance.
• Handle the probe tip with care; any damage to the tip surface can affect measurement accuracy.
• Route the coaxial cable away from high-voltage power lines or sources of significant electromagnetic interference (EMI).
• Verify that the probe gap is set according to the specific machinery monitoring requirements during installation.
• Ensure all connections are clean and fully seated to maintain the integrity of the ClickLoc interface.
• Always power down the monitoring system before disconnecting or replacing the transducer probe.

FAQ

What is the purpose of the 3300 XL 8 mm probe?
It is used to measure the distance between the probe tip and a conductive target, typically a rotating shaft, to monitor vibration, position, and speed.

Can this probe be used in hazardous areas?
Yes, this specific model (ending in -05) includes CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous locations.

What does the ClickLoc connector do?
The ClickLoc connector provides a secure, reliable connection that prevents accidental disconnection while ensuring consistent electrical contact for the transducer signal.
