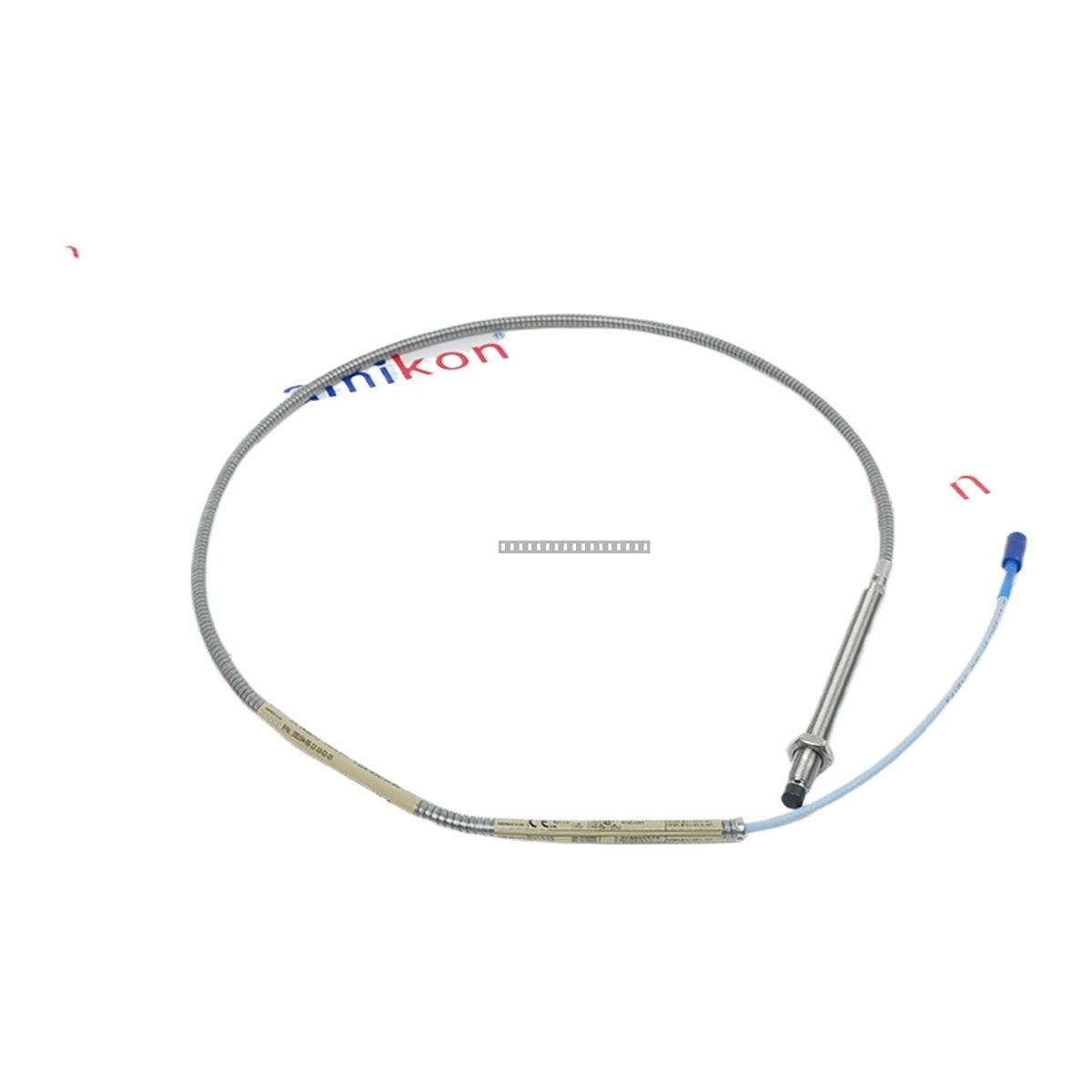

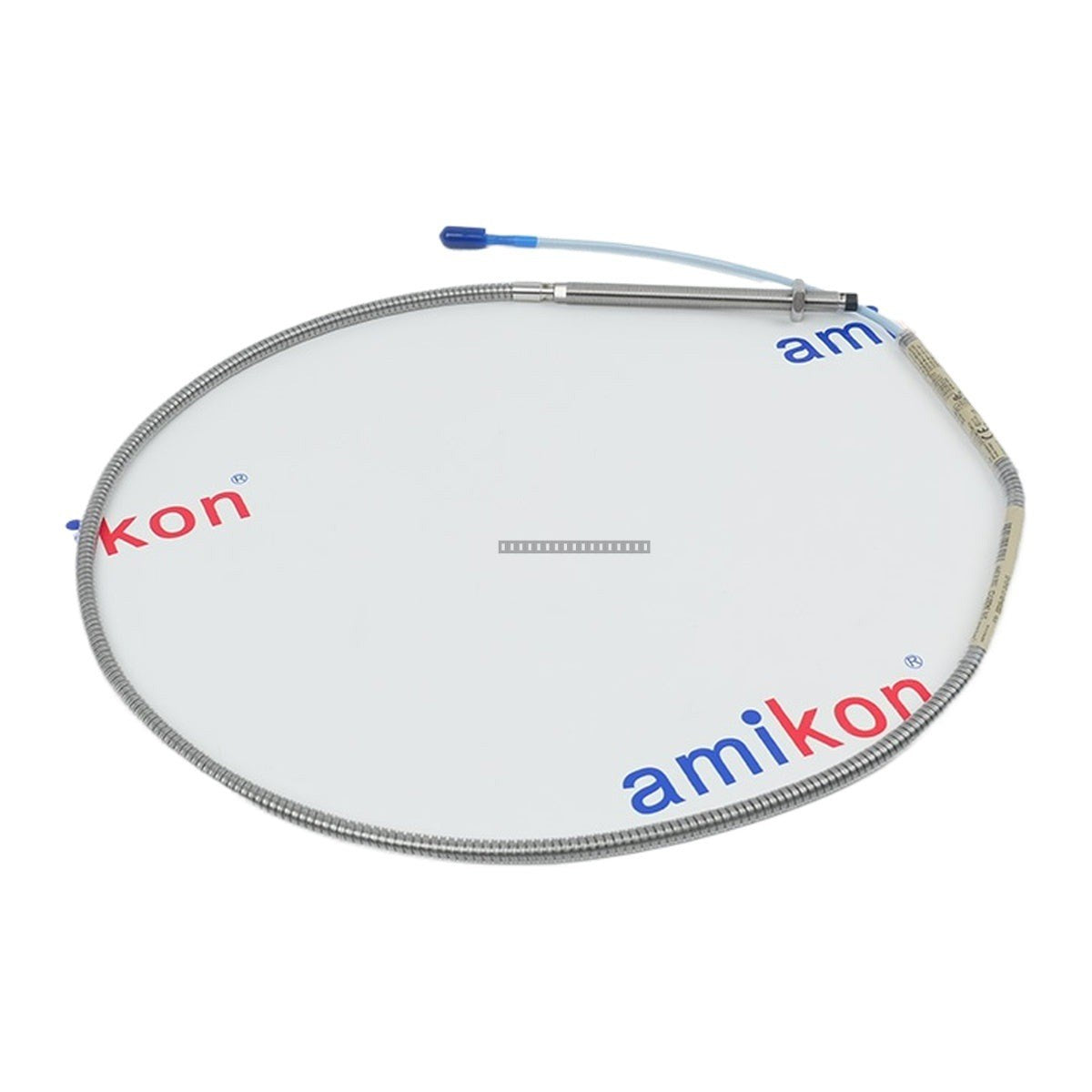

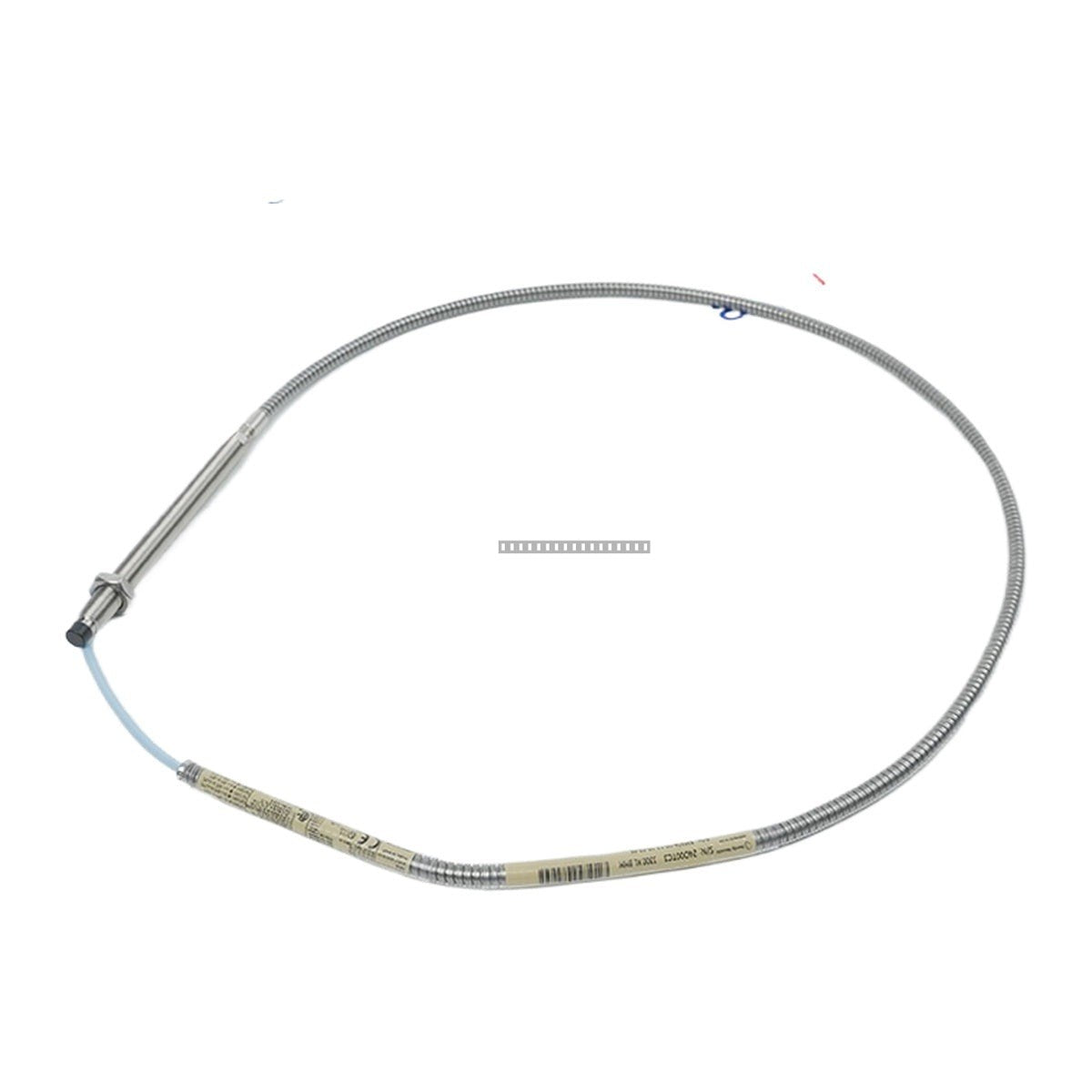

Bently Nevada 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-00-12-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-12-10-02-05 is a 3300 XL 8 mm proximity probe designed for high-accuracy vibration and shaft displacement monitoring in rotating machinery. As part of the 3300 XL eddy...

24 people are viewing this right now

Availability: Low stock: 7 left

SKU: 330104-00-12-10-02-05
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 330104-00-12-10-02-05 is a 3300 XL 8 mm proximity probe designed for high-accuracy vibration and shaft displacement monitoring in rotating machinery. As part of the 3300 XL eddy current transducer system, this probe provides a voltage output directly proportional to the distance between the probe tip and a conductive target, enabling the measurement of both static (position) and dynamic (vibration) parameters.

Features

  • M10 x 1 thread configuration with 120 mm case length.
  • Includes armor for enhanced cable protection.
  • Features patented TipLoc molding for a robust bond between the probe tip and body.
  • Equipped with a patented CableLoc design providing 330 N (75 lbf) pull strength.
  • Miniature coaxial ClickLoc connector for secure, reliable signal transmission.
  • Agency approvals include CSA, ATEX, and IECEx for hazardous area compliance.

Applications

  • Turbine and compressor vibration monitoring.
  • Fluid-film bearing machine position measurements.
  • Keyphasor reference and speed sensing.
  • Monitoring of cooling tower fans, agitators, and reactor cooling systems.

Technical Specifications

Model 330104-00-12-10-02-05
Probe Type 3300 XL 8 mm Proximity Probe
Thread Size M10 x 1
Unthreaded Length 0 mm
Case Length 120 mm
Cable Length 1.0 meter (3.3 feet)
Connector Miniature coaxial ClickLoc
Approvals CSA, ATEX, IECEx
Operating Temperature -35 degC to +177 degC

Installation Guidelines

  • Ensure the mounting hole is properly tapped for an M10 x 1 thread.
  • For standard AISI 4140 steel targets, the probe should be gapped at 1.27 mm (50 mils) to maintain the linear operating range.
  • Maintain a minimum separation of 40 mm (1.6 in) for axial or 38 mm (1.5 in) for radial measurements between probe tips to prevent cross-talk.
  • Handle with care to avoid damage to the probe tip or cable jacket during installation.
  • Ensure all connections are clean and fully seated before system power-up.

FAQ

What is the 330104-00-12-10-02-05?

It is a 3300 XL 8 mm proximity probe used for monitoring shaft vibration and position in industrial rotating machinery.

What is the function of this probe?

It acts as an eddy current sensor, providing a voltage output proportional to the gap between the probe tip and a conductive surface, allowing for both static and dynamic measurements.

Does the probe require special shielding?

The 3300 XL system features high RFI/EMI immunity, often allowing for installation without specialized shielded conduits, while meeting CE mark requirements.
