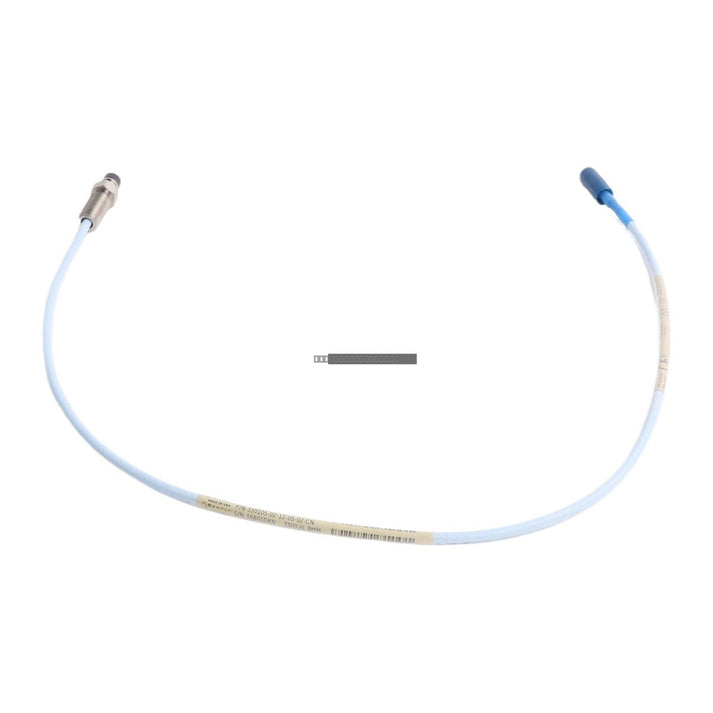

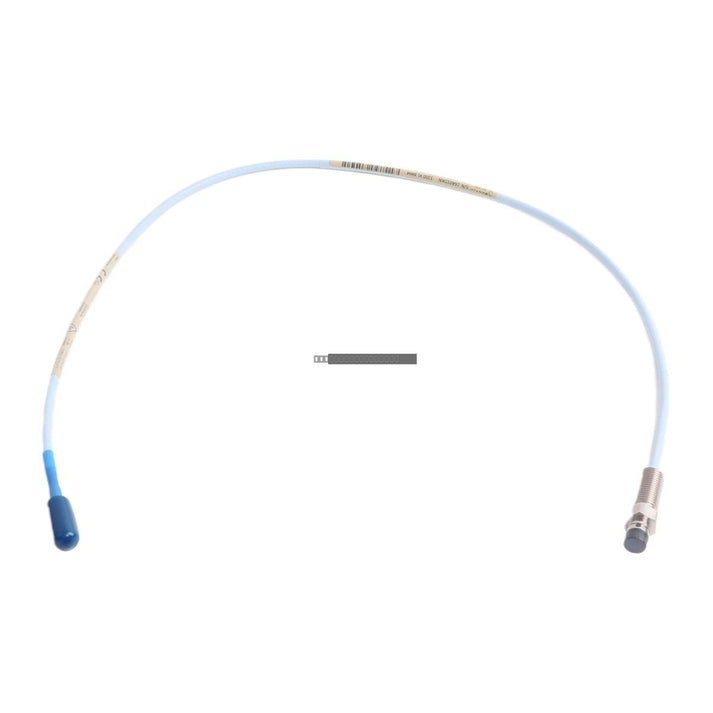

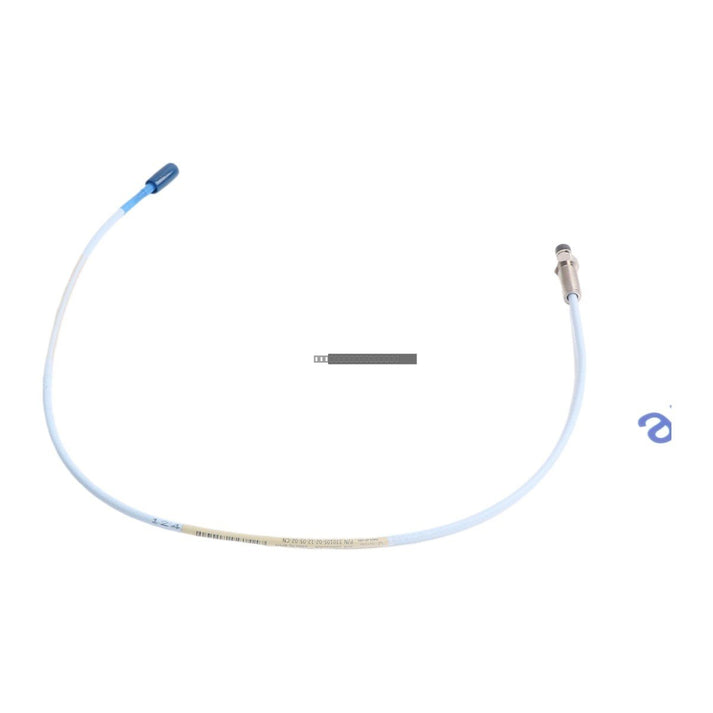

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe

Description

The Bently Nevada 330105-02-12-05-02-CN is a 3300 XL 8 mm reverse mount proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. This probe is a critical...

27 people are viewing this right now

Availability: Low stock: 3 left

SKU: 330105-02-12-05-02-CN
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 330105-02-12-05-02-CN is a 3300 XL 8 mm reverse mount proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. This probe is a critical component of the 3300 XL transducer system, providing reliable non-contact measurement of shaft displacement, position, and speed in demanding environments.

Features

  • 8 mm probe tip diameter for standard proximity measurement applications.
  • Reverse mount configuration for specific mechanical installation requirements.
  • Integrated Miniature ClickLoc coaxial connector for secure, reliable signal transmission.
  • Agency approved for hazardous area installations including CSA, ATEX, and IECEx.
  • Designed for compatibility with 3300 XL series extension cables and proximity sensors.

Technical Specifications

Product Model 330105-02-12-05-02-CN
Probe Type 3300 XL 8 mm Reverse Mount
Total Length 0.5 meter (1.6 feet)
Connector Type Miniature ClickLoc coaxial
Agency Approvals CSA, ATEX, IECEx
Output Resistance 50 Ohm
Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical
Tariff Code 8537101190

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free housing to maintain measurement accuracy.
  • Handle the probe tip with care; avoid physical impact or scratching of the sensing surface.
  • When connecting the Miniature ClickLoc connector, ensure it is fully seated and locked to prevent signal noise or intermittent contact.
  • Route coaxial cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that the installation meets the requirements for the specified hazardous area certifications (CSA, ATEX, IECEx) if applicable.
  • Always power down the monitoring system before disconnecting or replacing transducer components.

FAQ

What is the primary function of the 330105-02-12-05-02-CN probe?

This probe is used to measure the dynamic and static distance between the probe tip and the observed conductive surface, typically a rotating machine shaft, as part of a Bently Nevada vibration monitoring system.

Is this probe suitable for hazardous environments?

Yes, this specific model includes CSA, ATEX, and IECEx approvals, making it suitable for use in designated hazardous locations when installed according to the relevant safety documentation.

What is the purpose of the ClickLoc connector?

The ClickLoc connector is designed to provide a secure, reliable connection that resists loosening due to mechanical vibration, ensuring consistent signal transmission in industrial environments.
