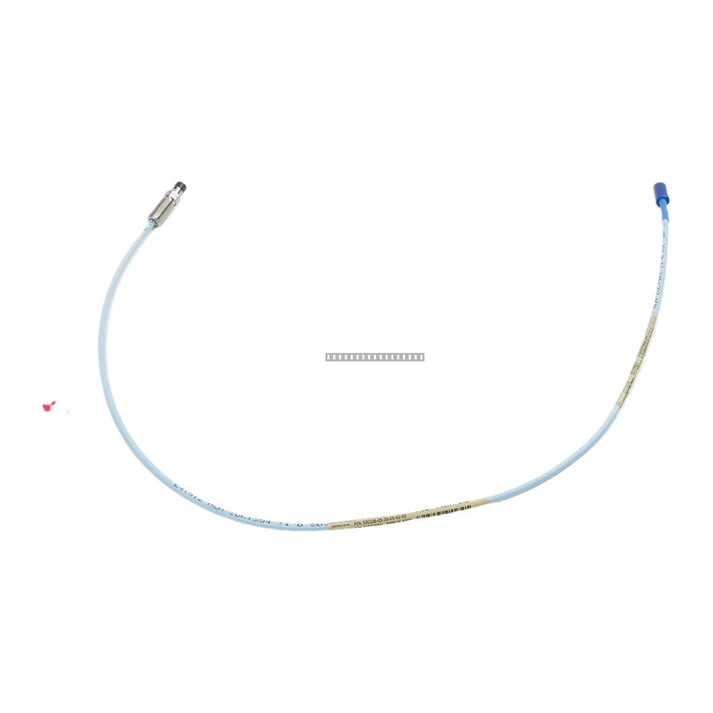

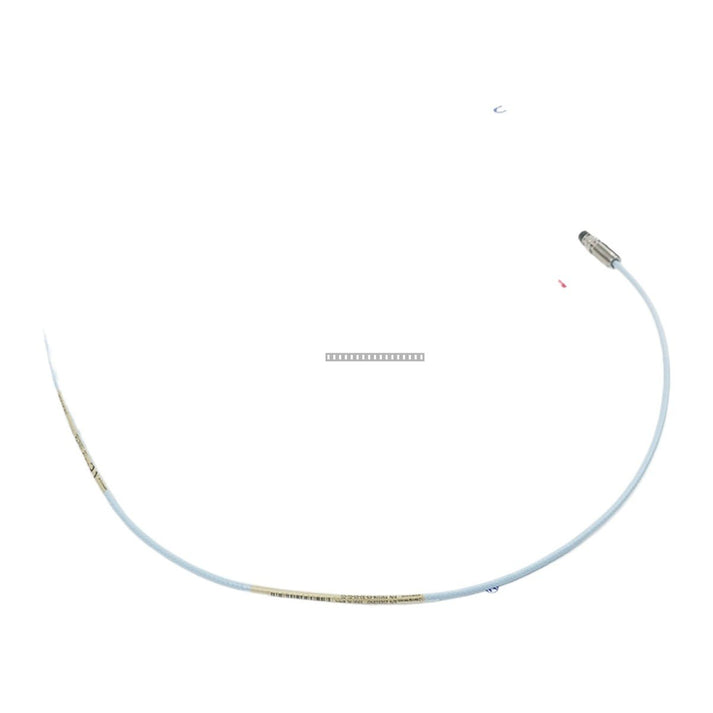

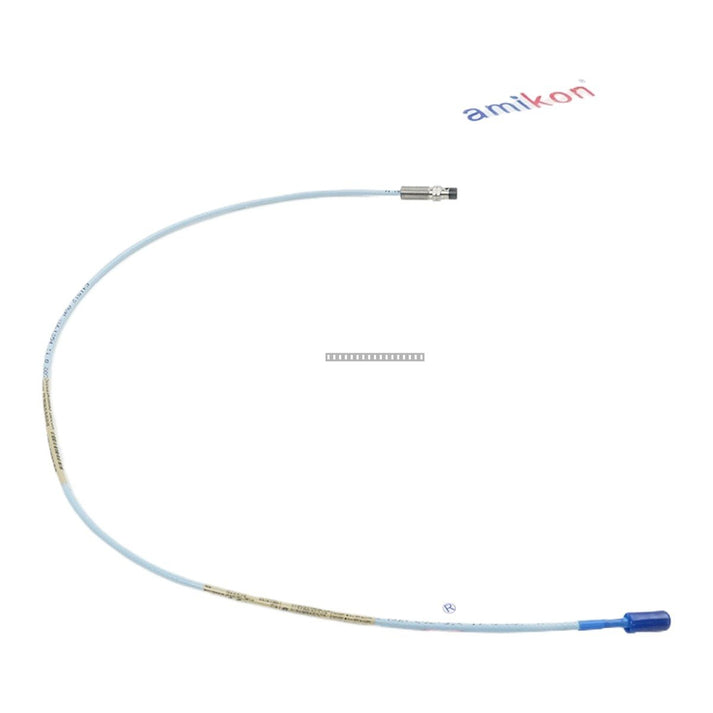

Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probe

Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probe

The Bently Nevada 330106-05-30-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe designed for high-performance eddy current transducer systems. It provides precise measurements of shaft-to-bearing clearance, vibration, and...

17 people are viewing this right now

Availability: In stock

SKU: 330106-05-30-05-02-05
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 330106-05-30-05-02-05 is a 3300 XL 8 mm reverse mount proximity probe designed for high-performance eddy current transducer systems. It provides precise measurements of shaft-to-bearing clearance, vibration, and position in rotating machinery, ensuring operational integrity in demanding industrial environments.

Features

  • Designed for 3300 XL 8 mm proximity transducer systems.
  • Reverse mount configuration with M10 x 1 threads.
  • Complete interchangeability of probes, extension cables, and Proximitor sensors.
  • Complies with API 670 standards for mechanical configuration, linear range, and accuracy.
  • Includes Miniature ClickLoc coaxial connector for secure signal transmission.
  • CSA, ATEX, and IECEx hazardous area approvals.

Applications

  • Steam turbines and generator bearings in power plants.
  • Centrifugal and reciprocating compressors in oil and gas facilities.
  • Large blowers and fans in steel metallurgy.
  • Pulp and water treatment pumps.

Technical Specifications

Model 330106-05-30-05-02-05
Probe Type 3300 XL 8 mm Reverse Mount
Thread Size M10 x 1
Cable Length 0.5 meter (1.6 feet)
Connector Miniature ClickLoc coaxial
Approvals CSA, ATEX, IECEx
Output Resistance 50 Ohm
Cable Capacitance 69.9 pF/m (21.3 pF/ft) typical

Installation Guidelines

  • Ensure the probe is mounted securely using the provided M10 x 1 threads to maintain consistent gap measurement.
  • Route coaxial cables away from high-EMI sources and high-voltage power lines to prevent signal interference.
  • Verify that the probe tip is clear of obstructions and correctly gapped according to the specific machine's monitoring requirements.
  • Handle with care to avoid damage to the probe tip or the coaxial connector interface.
  • Always power down the associated monitoring system before connecting or disconnecting the transducer system components.

FAQs

What is the primary function of this probe?

This probe measures the distance between the probe tip and a conductive surface, providing data for static position and dynamic vibration monitoring in rotating machinery.

Is this probe interchangeable?

Yes, the 3300 XL 8 mm system is designed for complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component bench calibration.

What materials are used in the construction?

The probe tip is constructed from Polyphenylene sulfide (PPS), and the probe case is manufactured from AISI 303 or 304 stainless steel.
