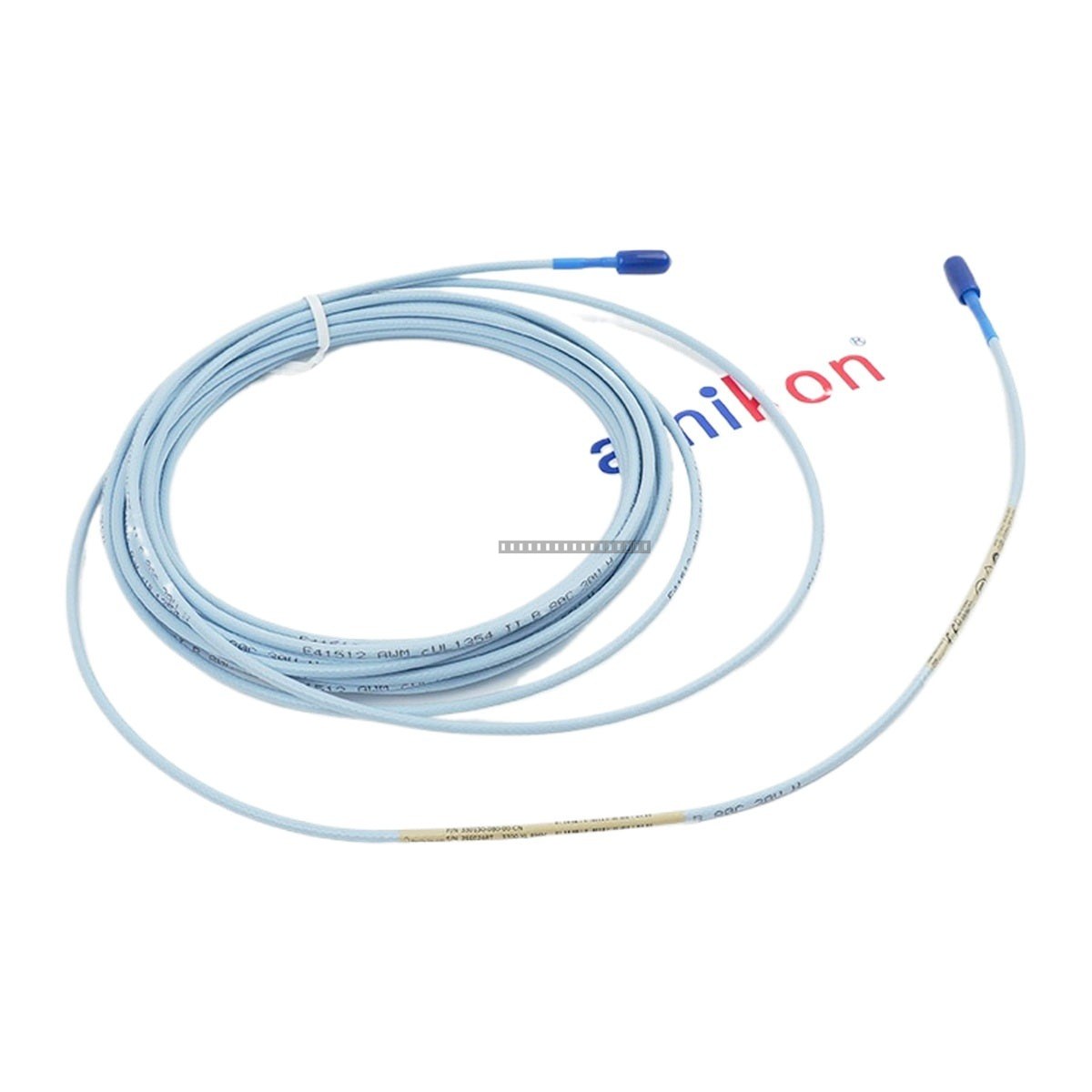

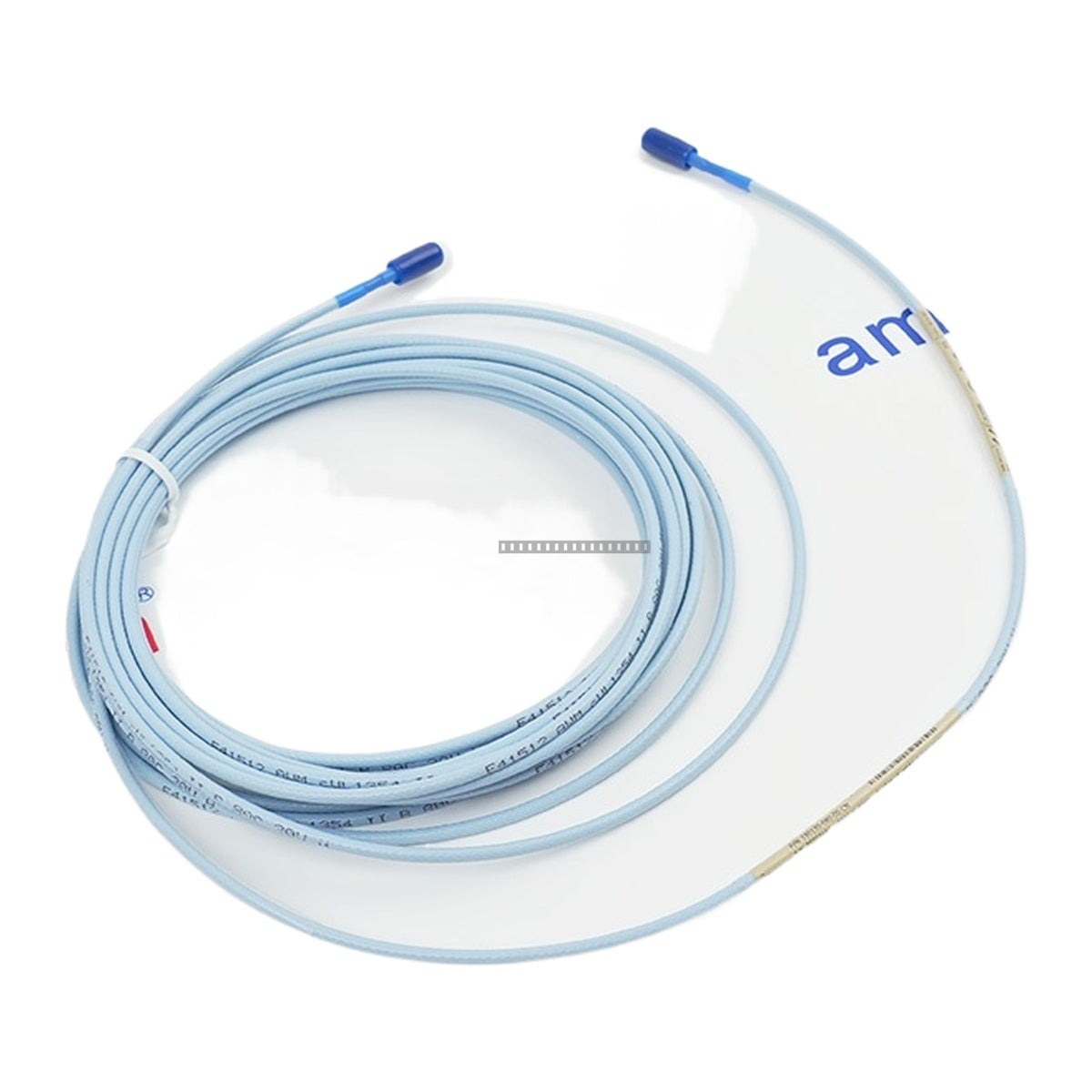

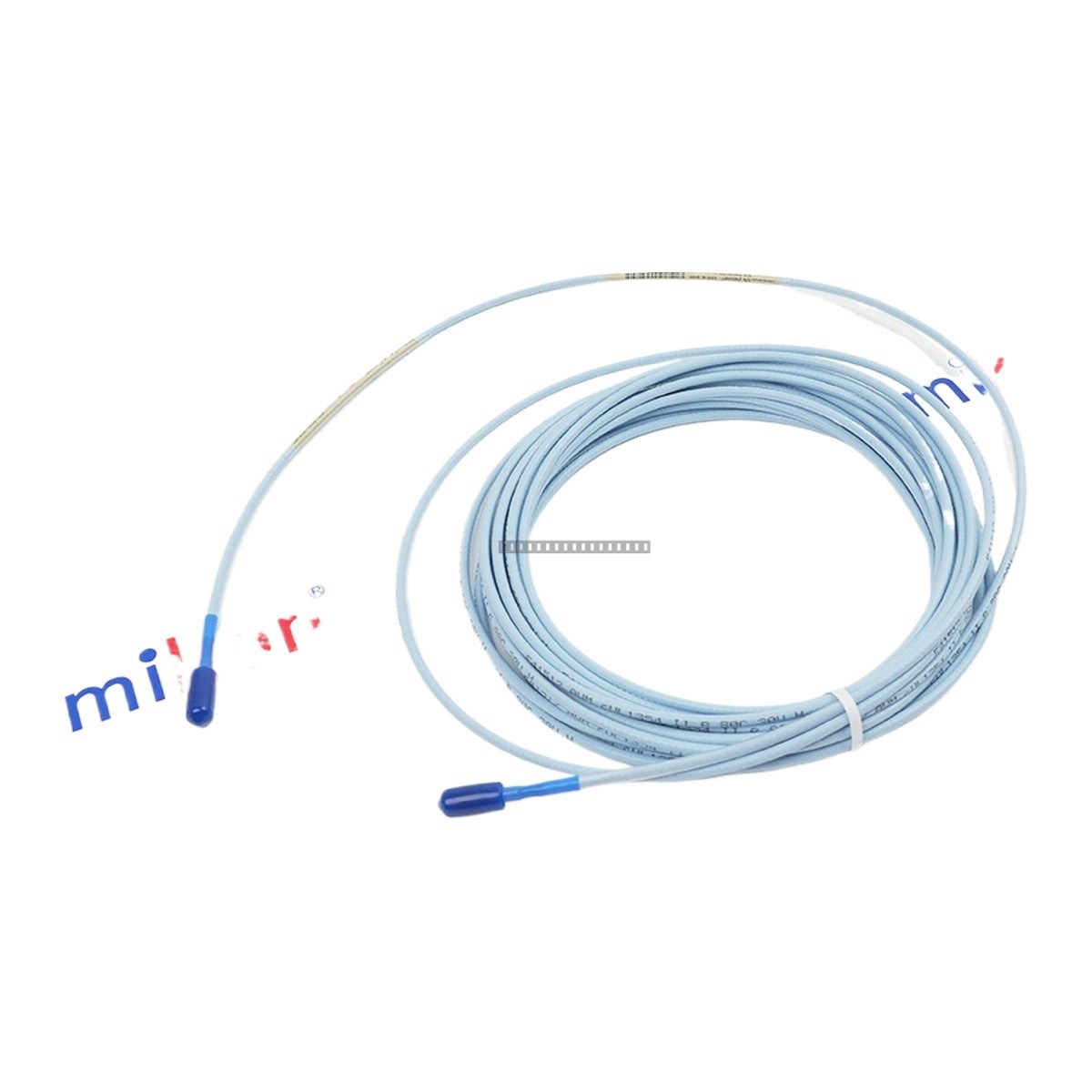

The Bently Nevada 330130-080-00-CN is a high-quality 3300 XL standard extension cable designed for use within the 3300 XL 8 mm Proximity Transducer System. This cable facilitates the connection between a proximity probe and a Proximitor sensor, ensuring accurate transmission of vibration and position data in industrial machinery.

Features

• Designed for 8.0 meters (26.2 feet) of signal transmission.
• Complete interchangeability with all standard 3300 XL 8 mm probes and Proximitor sensors.
• Backwards compatible with non-3300 XL series transducer system components.
• Standard cable construction with CSA, ATEX, and IECEx agency approvals.
• Supports static (position) and dynamic (vibration) measurement requirements.

Applications

• Fluid-Film Bearing Monitoring: Essential for measuring vibration and position on critical rotating equipment.
• Turbomachinery Protection: Ideal for compressors, turbines, and industrial rotating machinery.
• Keyphasor and Speed Measurement: Provides reliable reference signals for rotational speed and phase monitoring.
• API 670 Compliance: Engineered to meet the mechanical configuration, linear range, and accuracy requirements of the American Petroleum Institute (API) 670 standard.

Technical Specifications

Installation Guidelines

• Ensure all system components are powered down before connecting or disconnecting the extension cable.
• Handle connectors with care to prevent damage to the pins or threads; ensure connections are clean and free of debris.
• Route cables away from high-EMI sources and high-voltage power lines to maintain signal integrity.
• Use appropriate cable protection if the installation environment involves harsh chemicals or mechanical stress.
• Verify that the total system length (probe + extension cable) matches the calibrated length for the specific Proximitor sensor used.

FAQ

What is the 330130-080-00-CN?

It is a 3300 XL Standard Extension Cable designed by Bently Nevada for use with 3300 XL 8 mm proximity probes and Proximitor sensors.

What does the CN suffix indicate?

The -CN suffix indicates that the cable includes specific regulatory approvals and documentation tailored for regional compliance.

Is it compatible with other 3300 XL components?

Yes, it is designed for complete interchangeability with all standard 3300 XL 8 mm probes and Proximitor sensors, eliminating the need for individual component calibration.

Can it be used in high-temperature environments?

This is a standard cable rated for standard temperature ranges. For applications exceeding 177 degC (350 degF), an Extended Temperature Range (ETR) system is recommended.
