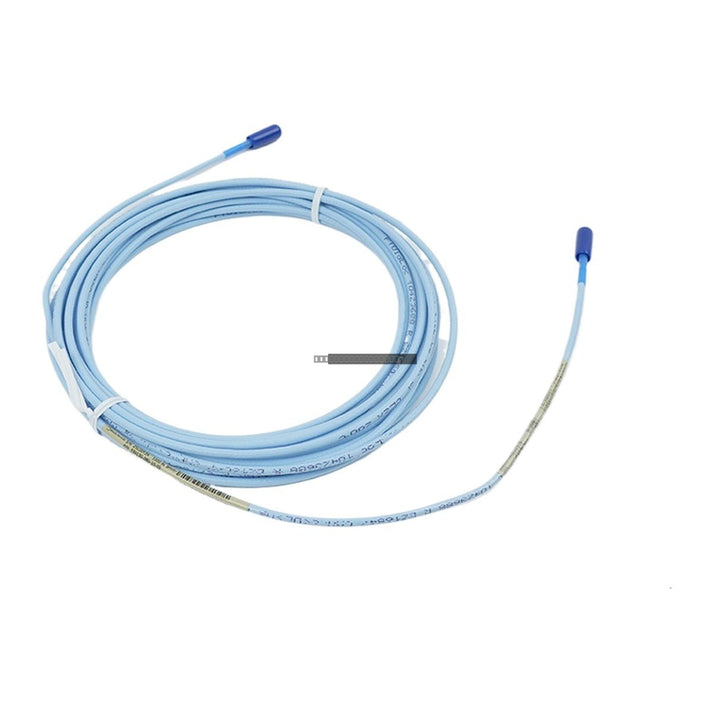

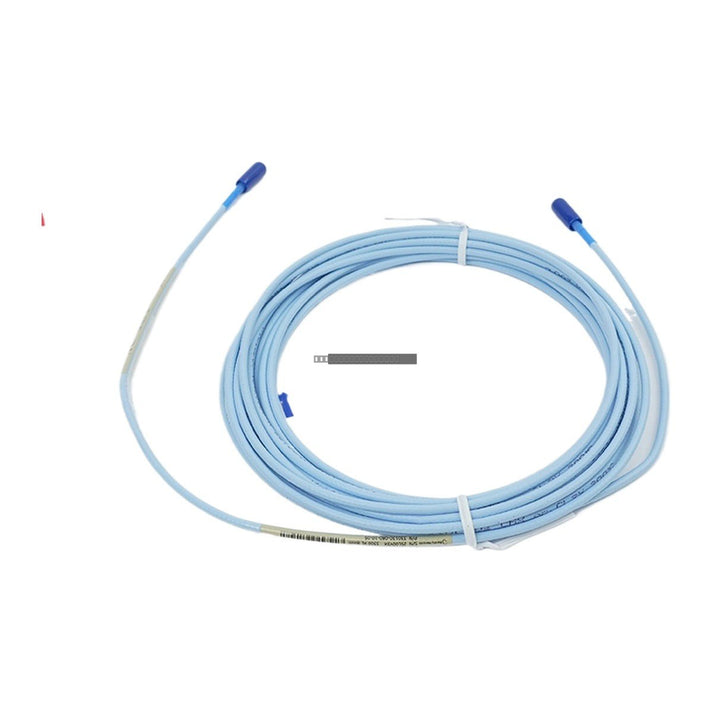

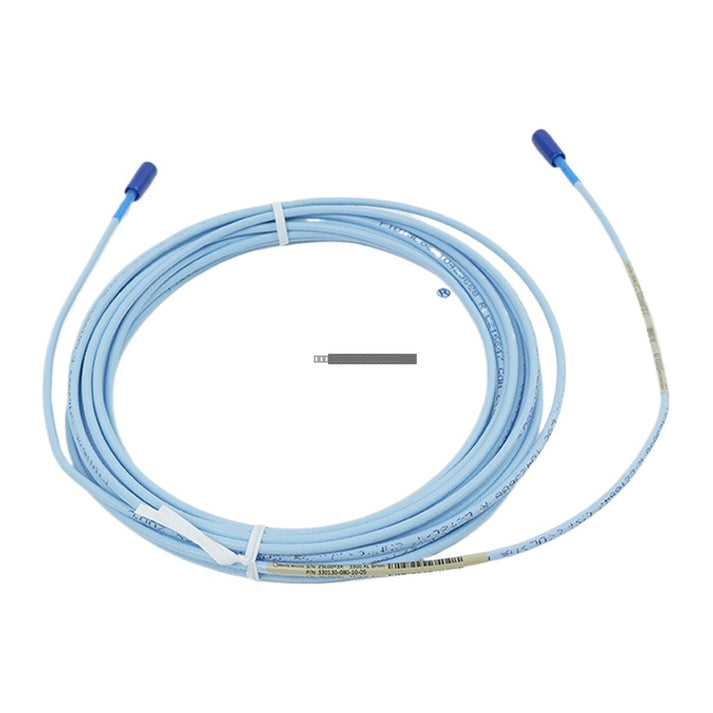

The Bently Nevada 330130-080-10-05 is a high-performance 3300 XL standard extension cable designed for use within the 3300 XL Proximity Transducer System. This 8.0-meter cable provides a reliable electrical pathway for eddy current signals, connecting 3300 XL proximity probes to the Proximitor sensor. It is engineered to maintain signal integrity in demanding industrial environments, ensuring accurate measurements of shaft vibration and position.

Features

• Designed for 3300 XL 8mm Proximity Transducer Systems.
• 8.0-meter cable length for flexible installation in large machinery.
• FluidLoc cable option prevents liquid migration through the cable interior.
• ClickLoc connectors ensure secure, tool-free connections.
• Fully interchangeable with other 3300 XL system components, eliminating the need for individual bench calibration.
• Robust construction resistant to thermal cycling and mechanical stress.

Applications

• Fluid-film bearing machines: Monitoring shaft vibration and radial position.
• Compression systems: Assessing performance and mechanical health.
• Speed and Keyphasor measurements: Providing critical timing and rotational speed data.
• Harsh industrial environments: Suitable for high-temperature and thermally cycling applications.

Technical Specifications

Installation Guidelines

• Ensure all connectors are clean, dry, and free of debris before mating.
• Use the included connector protectors to safeguard connections from environmental contaminants.
• Connectors are designed for finger-tightening only; do not use tools to overtighten.
• The total electrical length of the probe and extension cable must match the requirements of the Proximitor sensor (typically 5 or 9 meters total).
• Route cables away from high-EMI sources and avoid sharp bends that could damage the coaxial shielding.
• Always power down the system before disconnecting or replacing transducer components.

FAQ

What is the primary function of the 330130-080-10-05?

This cable acts as the vital link in a 3300 XL proximity system, transmitting the eddy current signal from the probe tip to the Proximitor sensor, where it is converted into a proportional voltage for monitoring vibration and position.

Is this cable compatible with non-XL components?

While it can be used in mixed systems, doing so will limit the system's performance to the specifications of the non-XL components. For optimal performance, it is recommended to use it with other 3300 XL series components.

What does the FluidLoc option provide?

The FluidLoc option is a specialized cable construction that prevents oil and other process liquids from leaking out of the machine through the interior of the cable.
